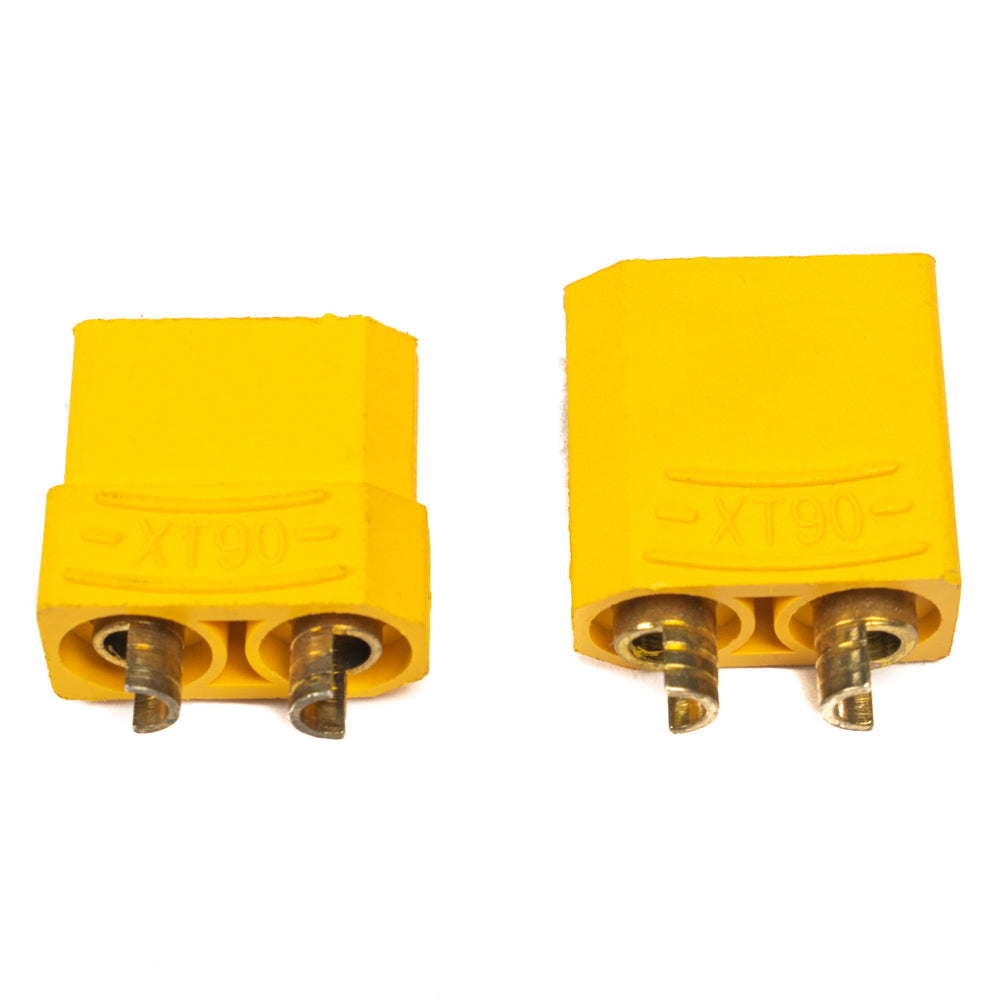

XT-90 High Current Connector Male-Female Pair

XT-90 High Current Connector Male-Female Pair

First Come First Serve Offer (T&C Apply )

49.00
0.00 49.00
Sale Sold out
Shipping calculated at checkout.

XT-90 connector has a female end for the battery and a male end for the charger. The design of the jacket's rear concave shape can allow the shrink tube to be placed more deeply, protecting junctions from water vapour and making them easier to solder. Precision mould processing, close connection with no gaps, and leakproof. Clear "+" and "-" signs, and larger contact area, 4.5mm banana plug, can handle a continuous current of 90A, 120A high current peak. The new type housing and groove slot design make the connection stronger and eliminate any mistakes. Non-slip insulator that is simple to connect. The tail's 180-degree outward shape allows wire to be soldered easily.

Features

  • Housing shape provides protection against shorting and reverse polarity
  • Can accept up to 8AWG wires
  • Semicircular solder terminals make it easy to install wires
  • Able to sustain 90A+ continuous current.
Specifications
Rated Operating Voltage  500V DC
Contact Material Brass
Current Handling Capacity 90A
Allowed Wire Gauge 14 ~ 12 AWG
Contact Plating Gold flash
Operating Temperature Range -20°C to 120°C
Flammability Rating UL94V-0
Gender Mail-Female Pair
No. of Contact Points 2
Connector Type XT90
Metal Connector Size 4.5mm
Color Yellow
Dimension 38.6x21.5x11.2
Country of Origin China
