XL4015 5A Variable Voltage & Current Step Down Power Module with DUAL LED Display

5A Adjustable Power LED Driver Step-Down Charge Module has a built-in display and provides output voltage and current limit adjustment in a compact module. It can be used for applications such as charging batteries, using as a constant current LED driver, or serving as a small adjustable power supply with current limiting.

Technical Details

  • Model: XL4015 with Display
  • Input Voltage: 5V to 30V
  • Output Voltage: 0.8V to 29V
  • Output Current:
  • 3A (without air cooling)
  • 5A (with forced air cooling)
  • Conversion Efficiency: Up to 95%
  • Switching Frequency: 300KHz
  • Input Impedance: 50 milliohms
  • Output Ripple: 50mV (max) at 20MHz bandwidth
  • Load Regulation: ± 0.5%
  • Voltage Regulation: ± 2.5%
  • Operating Temperature: -40°C to +85°C

Features

  • Step-down charge module
  • Built-in voltage & current display
  • Adjustable output

Applications :

  • Power Supply Regulation: Used to step down voltage for various electronic projects.
  • Battery Charging: Ideal for lithium-ion and lead-acid battery charging.
  • LED & Motor Drivers: Provides stable power for LEDs and DC motors.
  • Arduino & DIY Projects: Adjustable power source for microcontrollers and custom circuits.
  • Lab Power Supply: Functions as a variable power supply with voltage and current display.

Physical Attributes

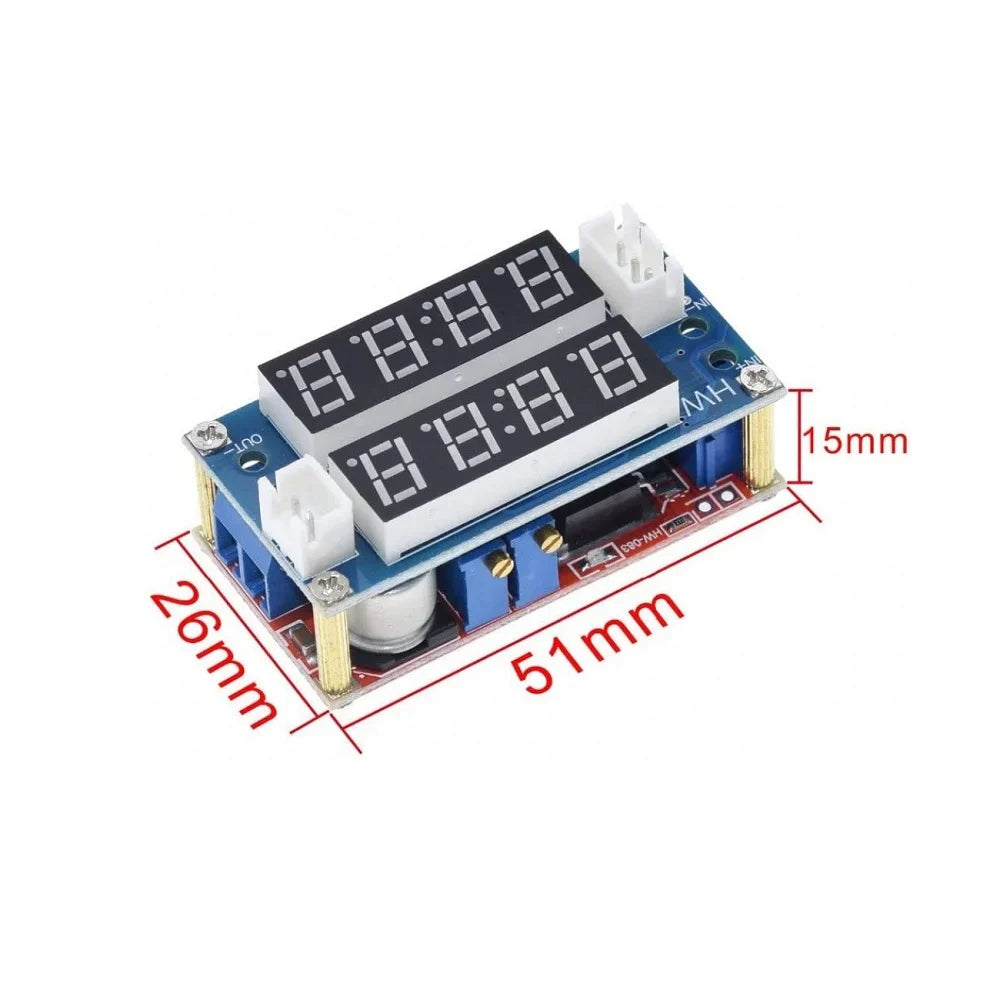

  • Dimensions (L x W x H): 51 x 26 x 15 mm
  • Weight (gm): 29

Package Includes

  • 1 x XL4015 5A Variable Voltage & Current Step Down Power Module with DUAL LED Display
