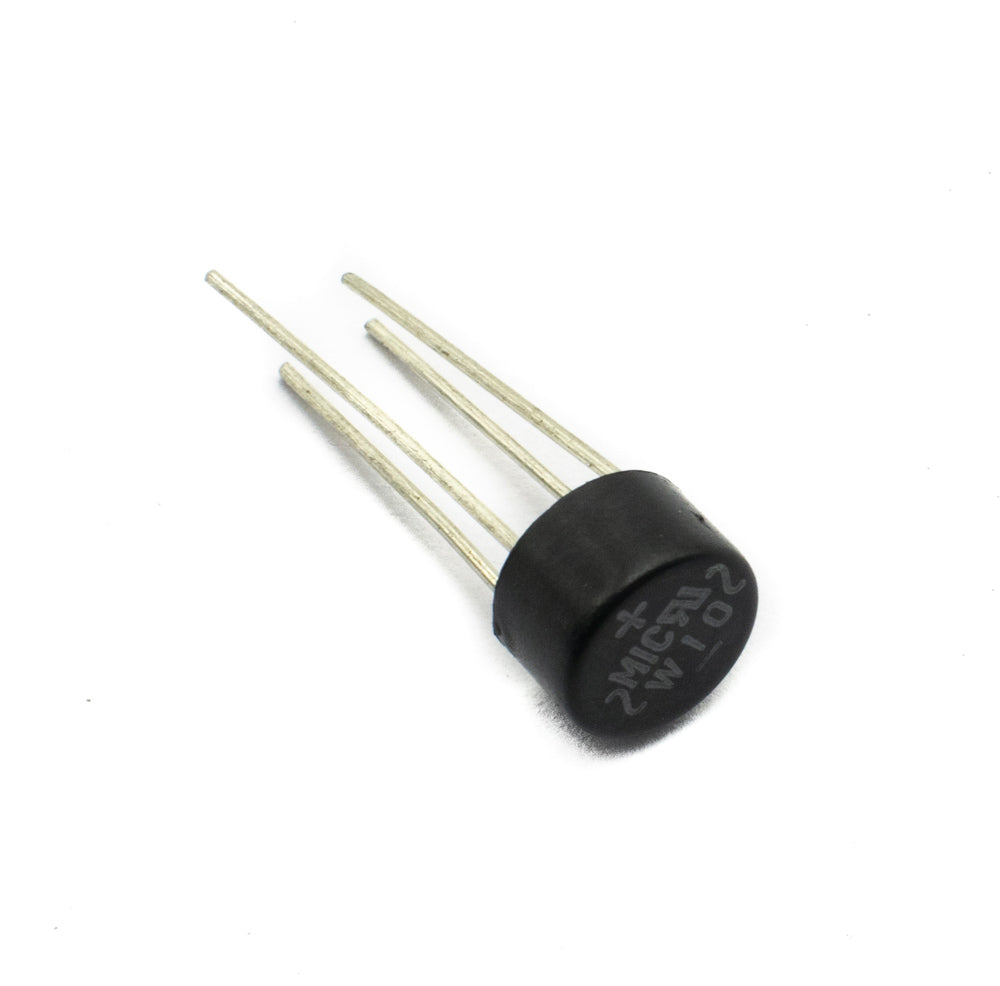

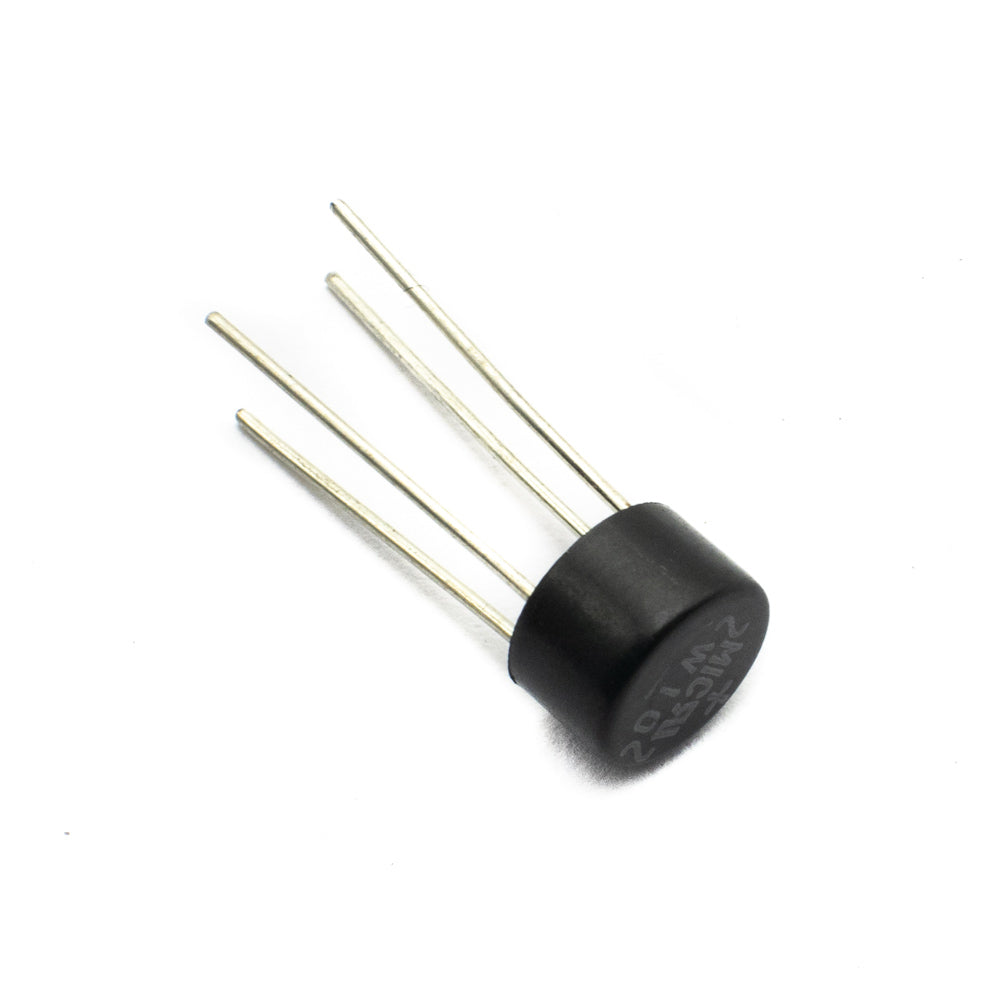

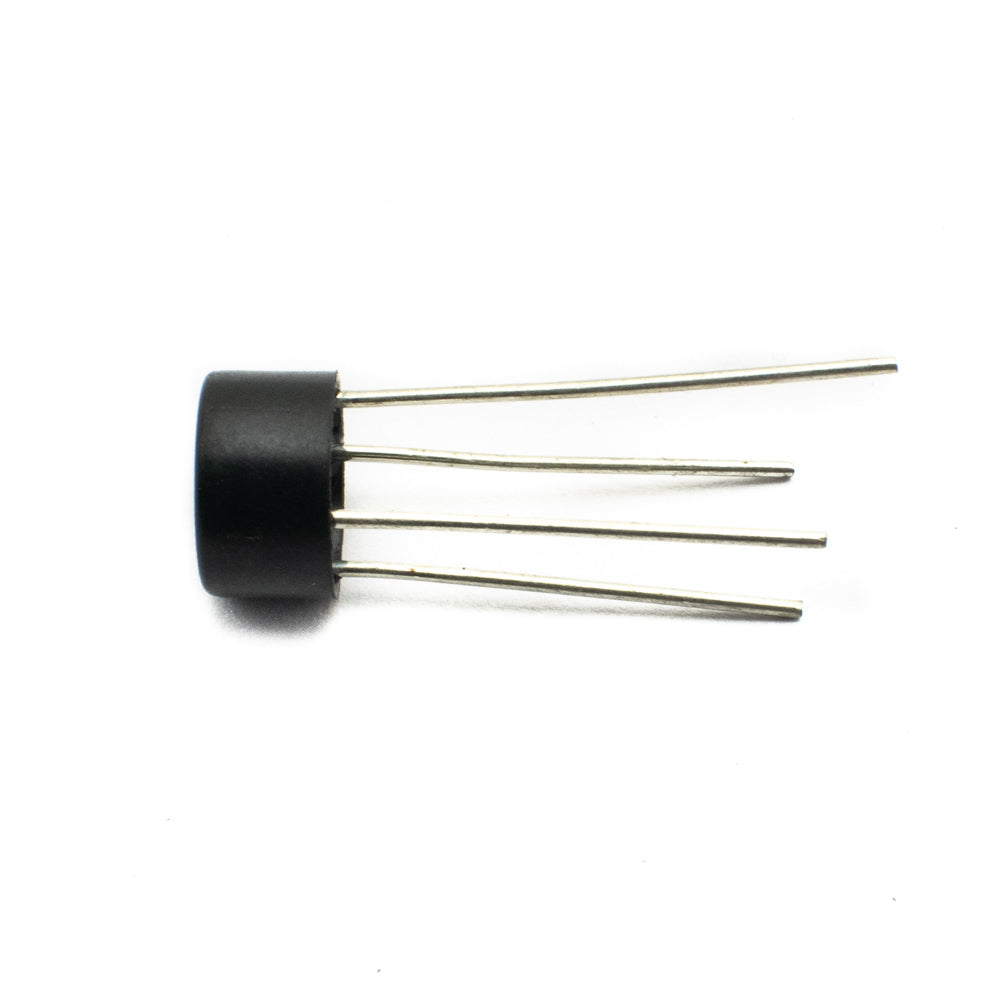

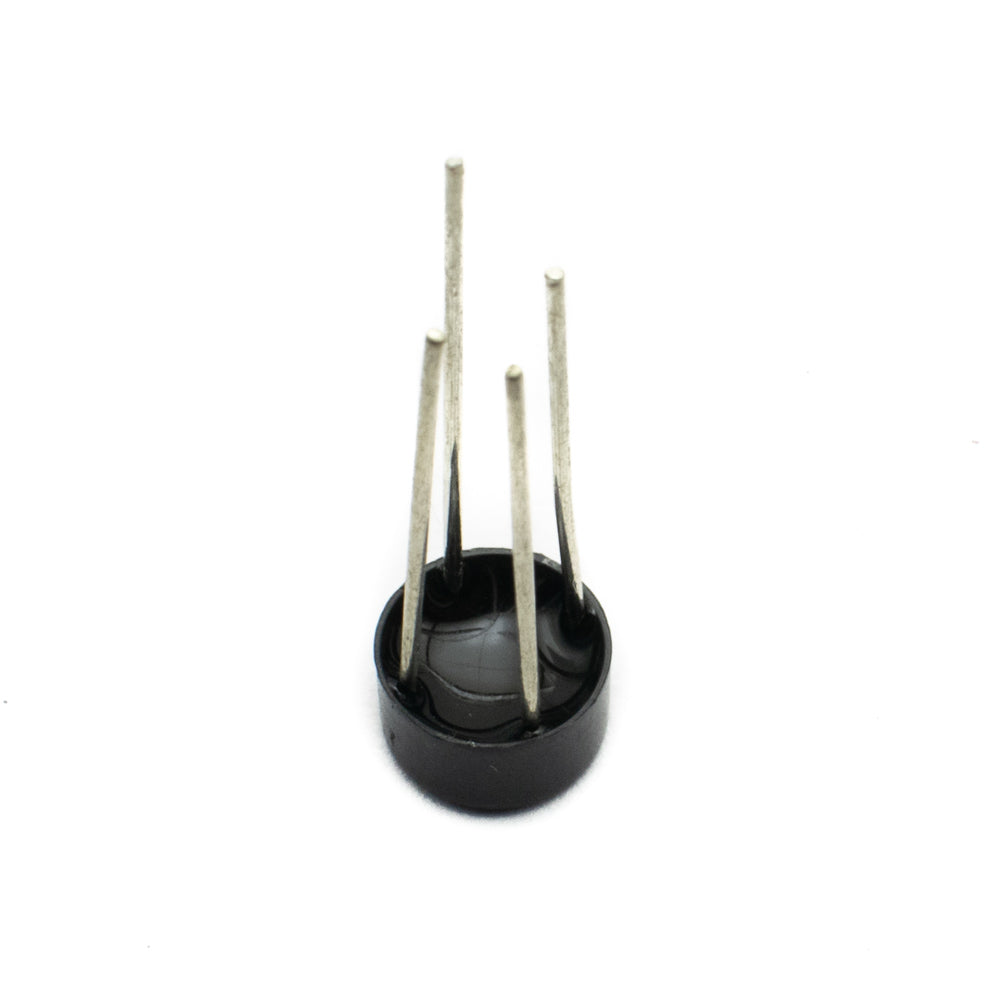

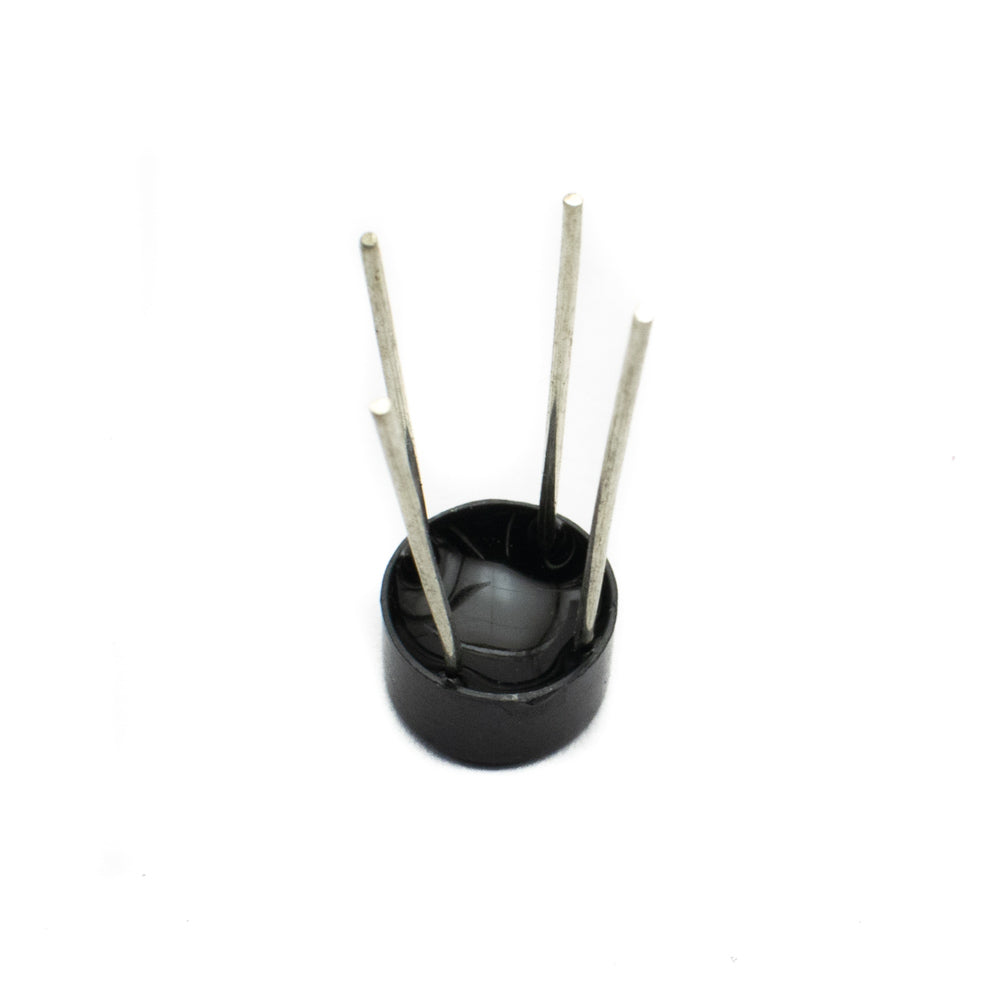

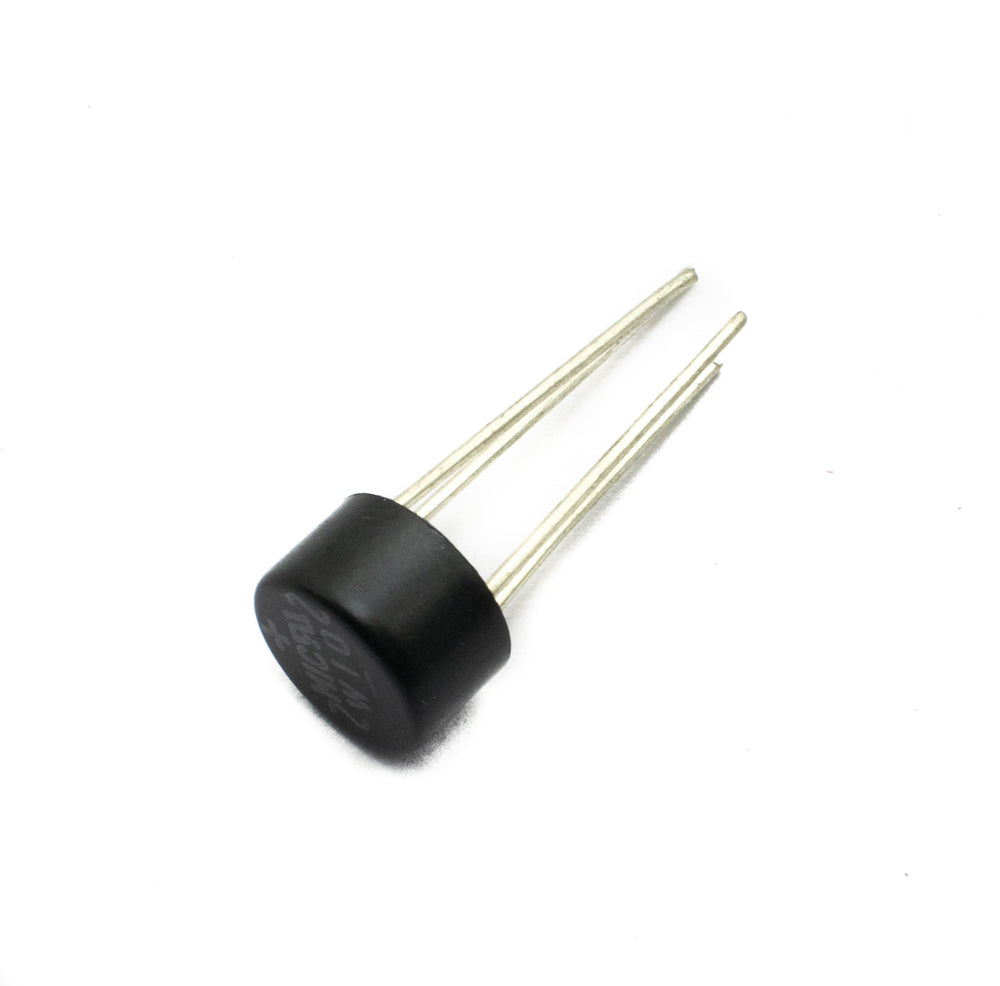

W10 1.5A 1000V Single-Phase Silicon Bridge Rectifier

W10 1.5A 1000V Single-Phase Silicon Bridge Rectifier

First Come First Serve Offer (T&C Apply )

4.90
0.00 4.90
Sale Sold out
Shipping calculated at checkout.

The W10 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 1.5A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop. It has high efficiency and a high surge current capability of 40A. If you are looking for a compact IC for rectification application this can be a good choice.


PINOUT

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

AC Input


FEATURES

  • UL Recognized File # E-96005
  • Surge overload ratings to 30 amperes peak
  • Ideal for printed circuit board
  • Reliable low-cost construction technique results in inexpensive product
  • High temperature soldering guaranteed: 250°C/10 seconds / 0.375" (9.5mm) lead length at 5 lbs., (2.3 kg) tension
Specifications

Input Voltage

50-1000V

DC Blocking Voltage per element

500uA

Maximum RMS Bridge Input Voltage

700V

Maximum DC Blocking Voltage

1000V

Maximum Average Forward Output Current

1.5A

Operating Temperature Range:

-55°C to + 150°C
Diameter 9mm
Country of Origin China
