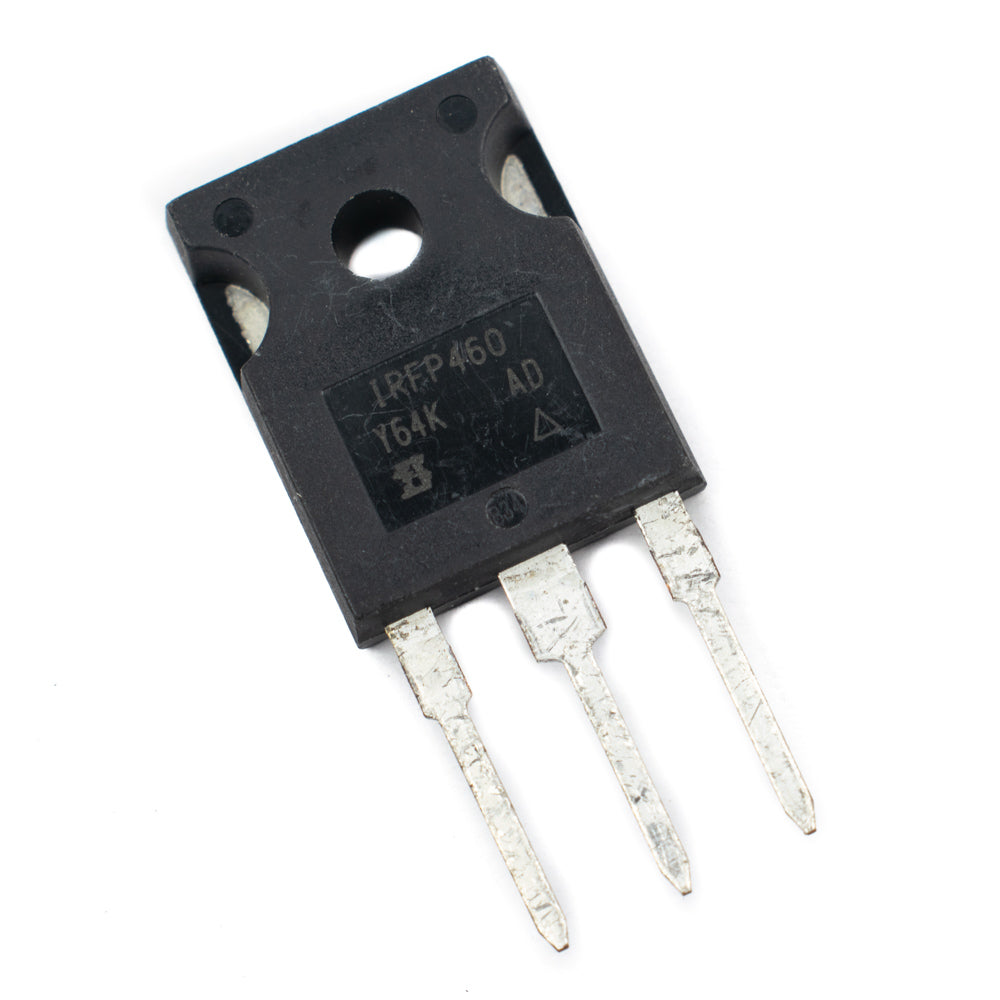

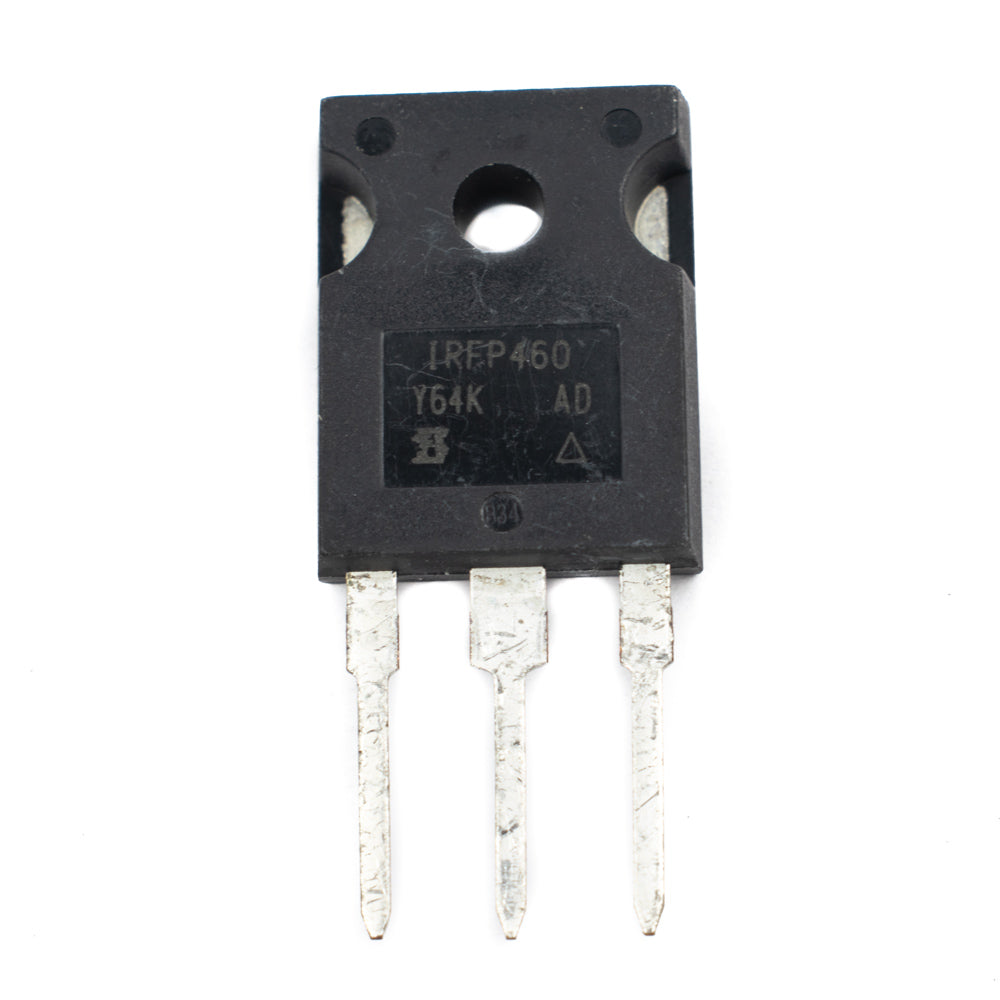

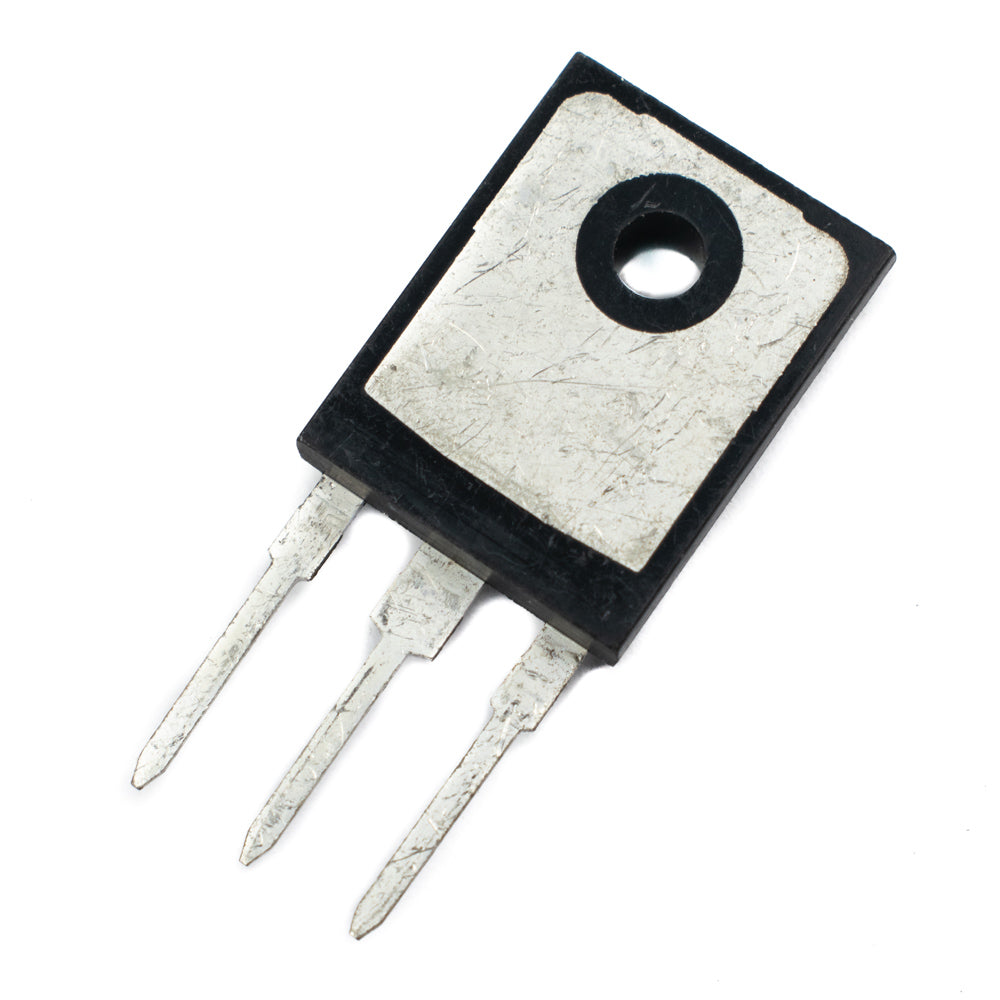

VISHAY IRFP460 500V 20A N-Channel Power MOSFET

VISHAY IRFP460 500V 20A N-Channel Power MOSFET

First Come First Serve Offer (T&C Apply )

194.04
0.00 194.04
Sale Sold out
Shipping calculated at checkout.

Vishay's third-generation Power MOSFETs offer the optimum combination of fast switching, ruggedized device design, low on-resistance, and cost-effectiveness to the designer. The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole. It also provides greater creepage distances between pins to meet the requirements of most safety specifications.

Features

  • Dynamic dV/dt rating
  • Repetitive avalanche rated
  • Isolated central mounting hole
  • Fast switching
  • Ease of paralleling
  • Simple drive requirements
Specifications
Model IRFP460
Brand VISHAY
Channel Type N Channel
Drain Source Voltage 500V
Gate Source Voltage 20V
Max. Gate Threshold Voltage 4V
Maximum Drain Current 20A
Max. Junction Temperature 150°C
Max. Power Dissipation 250W
Total Gate Charge 100nC
Rise TIme 15ns
Drain Source Capacitance 500pF
Max. Drain Source On-State Resistance 0.27 Ohm
Package TO-247
