Ultrasonic Sensor Module HCSR04

Ultrasonic Sensor Module HCSR04

First Come First Serve Offer (T&C Apply )

72.52
0.00 72.52
Sale Sold out
Shipping calculated at checkout.

This module operates on 5 V DC voltage and 15 mA current. The operating frequency for the sensor is 40 Hz. The minimum range of the module is 2 CM while its maximum range is 400 CM. Accuracy of the reading displayed by the module is 3 MM. 15° is the measuring angle covered by the sensor.

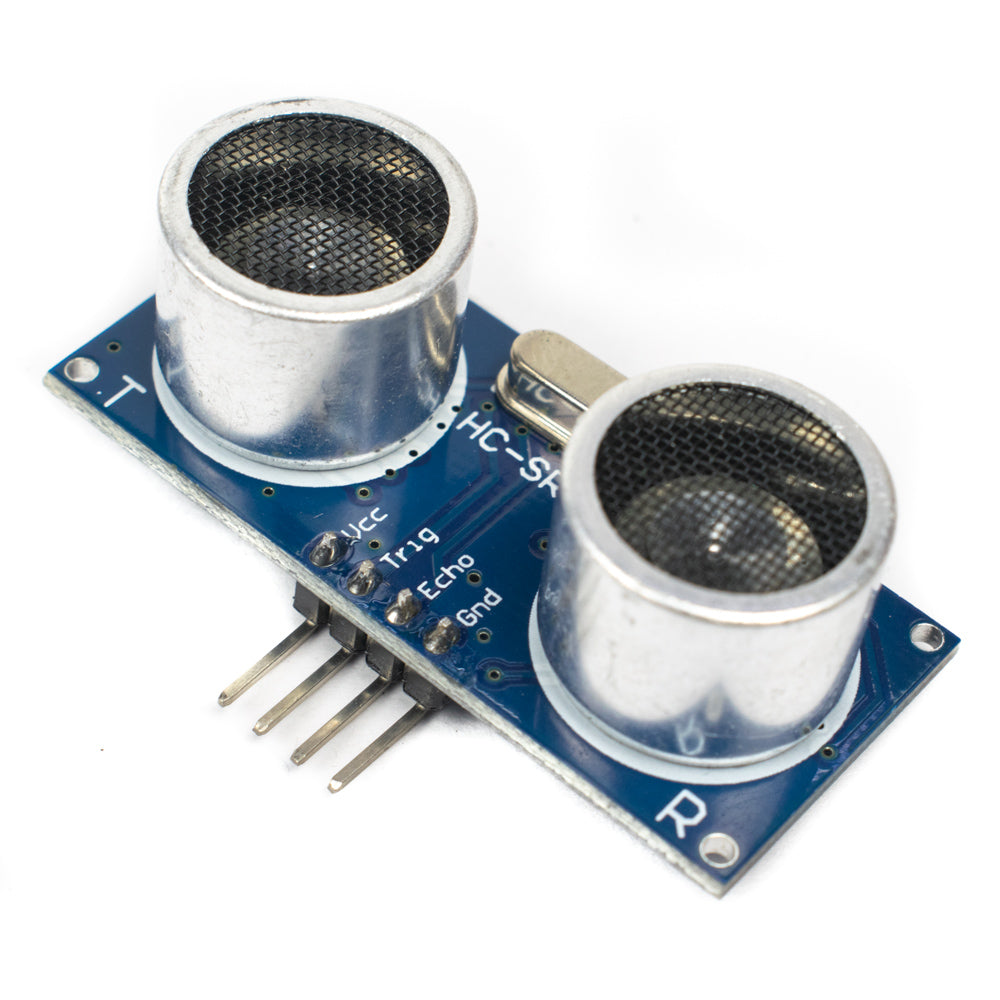

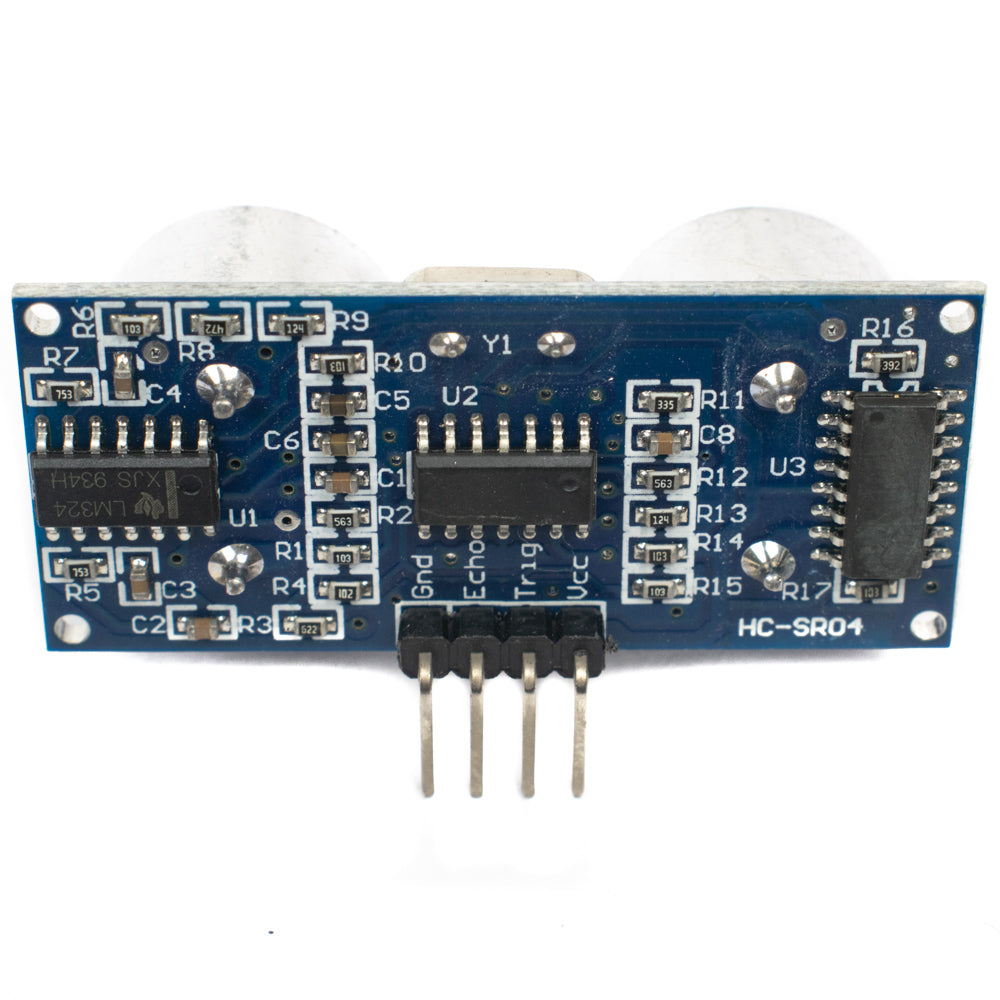

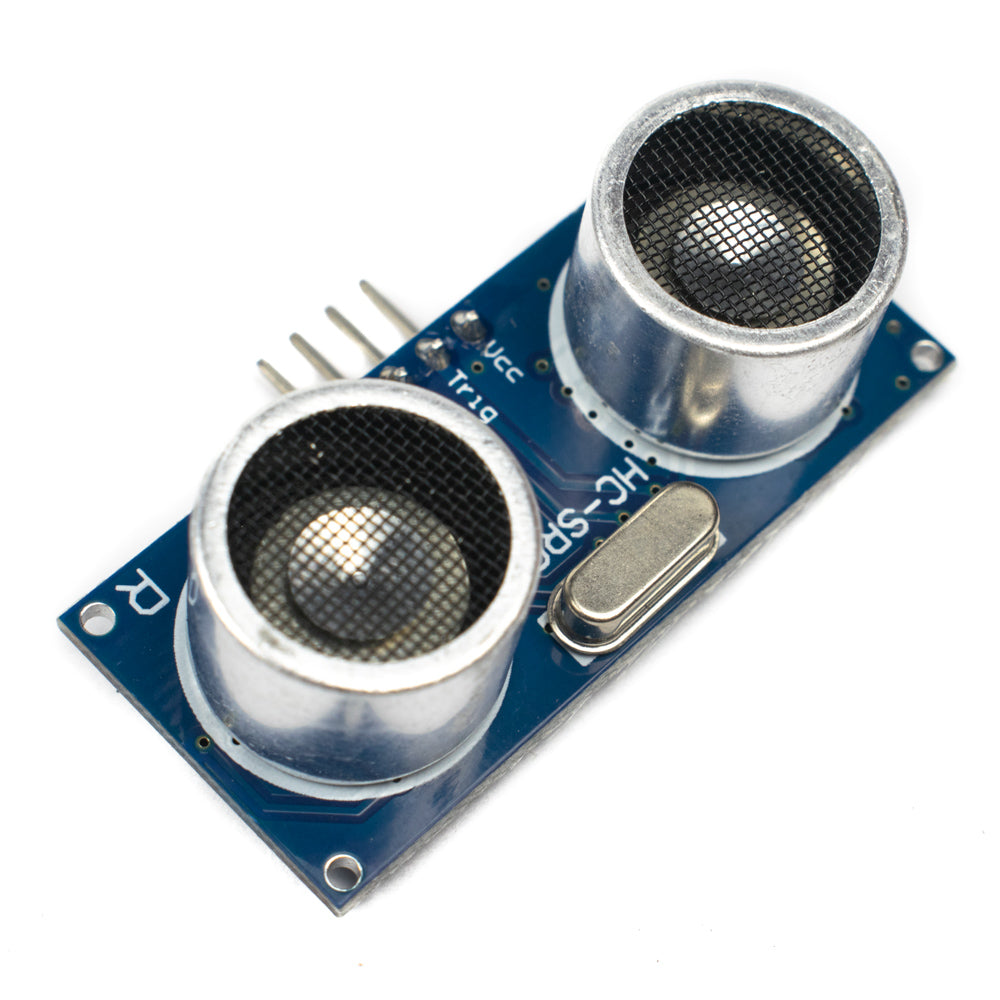

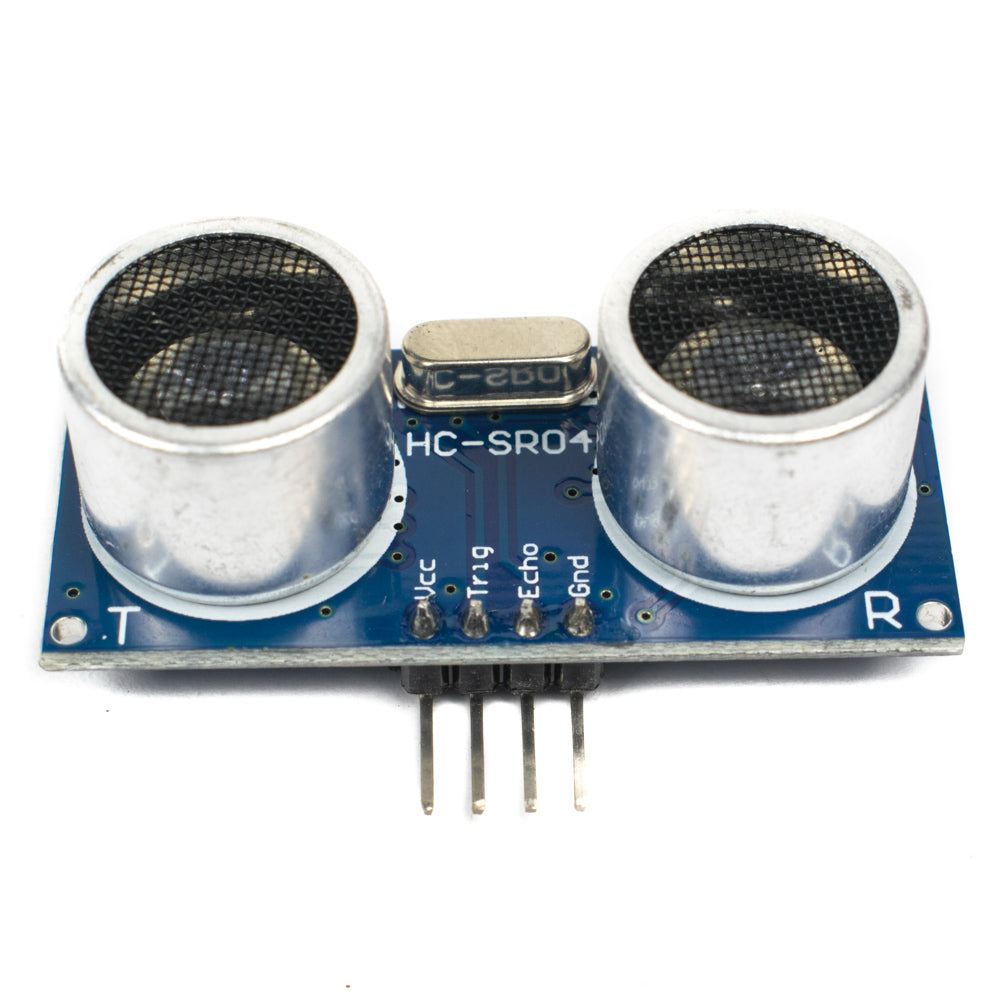

This Ultrasonic sensor module has four pins i.e., Vcc, Trigger, Echo and Ground. At Vcc pin, 5 V DC is supplied to power up the sensor. Trigger pin is kept high for 10ms to start measurement by sending Ultrasonic waves. Echo pin is high for the period of time taken by the Ultrasonic wave to reach back to the sensor. The ground pin is connected to the Ground of the system. Trigger pin is an input pin while Echo is an output pin. This module simply measures the time taken by the Ultrasonic wave to strike the nearest object and reach back to the sensor. As the propagation speed of the Ultrasonic wave (330 m/s in room condition) and time taken by the wave is known, distance travelled by the Ultrasonic wave can be simply calculated by the microprocessor using the formula Distance= Speed X Time. Ultrasonic Sensor Module HCSR04 can be used in various projects for detecting nearby objects and calculating their distance.

The ultrasonic sensor price can be reduced for upon request based upon purchase quantity in multiples of 25, 100, and 500.

Specifications
Type Universal IR Infrared Receiver TL1738
Working voltage DC 5 V
Working Current 15 mA
Min Range 2 cm
Max Range 400 cm
Accuracy 3 mm
Measuring Angle 15 degree
Operating Frequency 40 kHz
Dimension 45*20*15 mm
Country of Origin China
