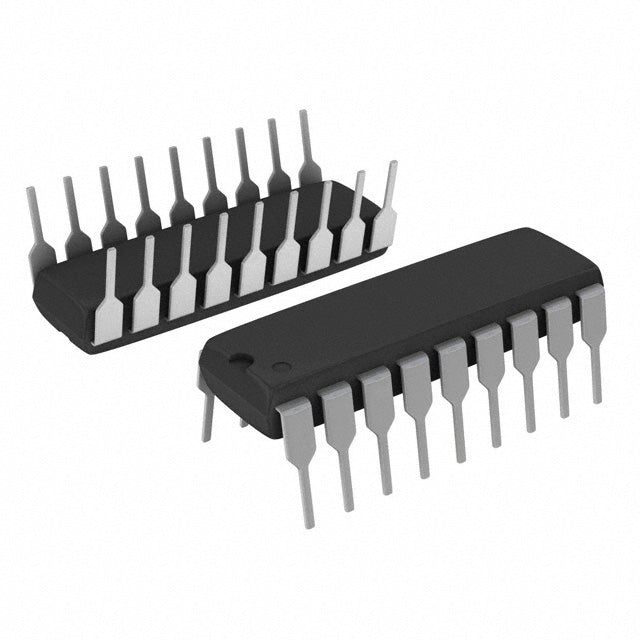

UDN2981A 8-channel Source Driver IC DIP-18 Package

UDN2981A 8-channel Source Driver IC DIP-18 Package

First Come First Serve Offer (T&C Apply )

91.36
0.00 91.36
Sale Sold out
Shipping calculated at checkout.

These devices are recommended for applications where it's advantageous to have separate logic and load grounds. They support load supply voltages up to 50 V and can handle output currents as high as -500 mA. These 8-channel source drivers are particularly useful for connecting low-level logic to high-current loads. Typical examples of such loads include relays, solenoids, lamps, stepper or servo motors, print hammers, and LEDs. You can use these devices with 5 V logic systems like TTL, Schottky TTL, DTL, and 5 V CMOS. The different device packages available are interchangeable and can handle a maximum output voltage of 50 V while operating down to a minimum of 5 V. All devices in this series come with integrated input current limiting resistors and output transient suppression diodes, and they activate with an active high input. If you see a suffix "A," it signifies an 18-lead plastic dual in-line package with a copper lead frame designed for optimal power dissipation. These devices are capable of sustaining a continuous current of 120 mA for each of the eight outputs under normal operating conditions, with an ambient temperature of +50°C and a 15 V supply.

Features:

  •  TTL, DTL, PMOS, or CMOS compatible inputs
  •  500 mA output source current capability
  • Transient-protected outputs
  • Output breakdown voltage to 50 V
Specifications
Part Number UDN2981A
No. of Channels No of Output: 8
Mounting Type Through Hole
Package DIP-18
No. of Pins 18
Current 500mA
Type 8-Channel Driver IC
