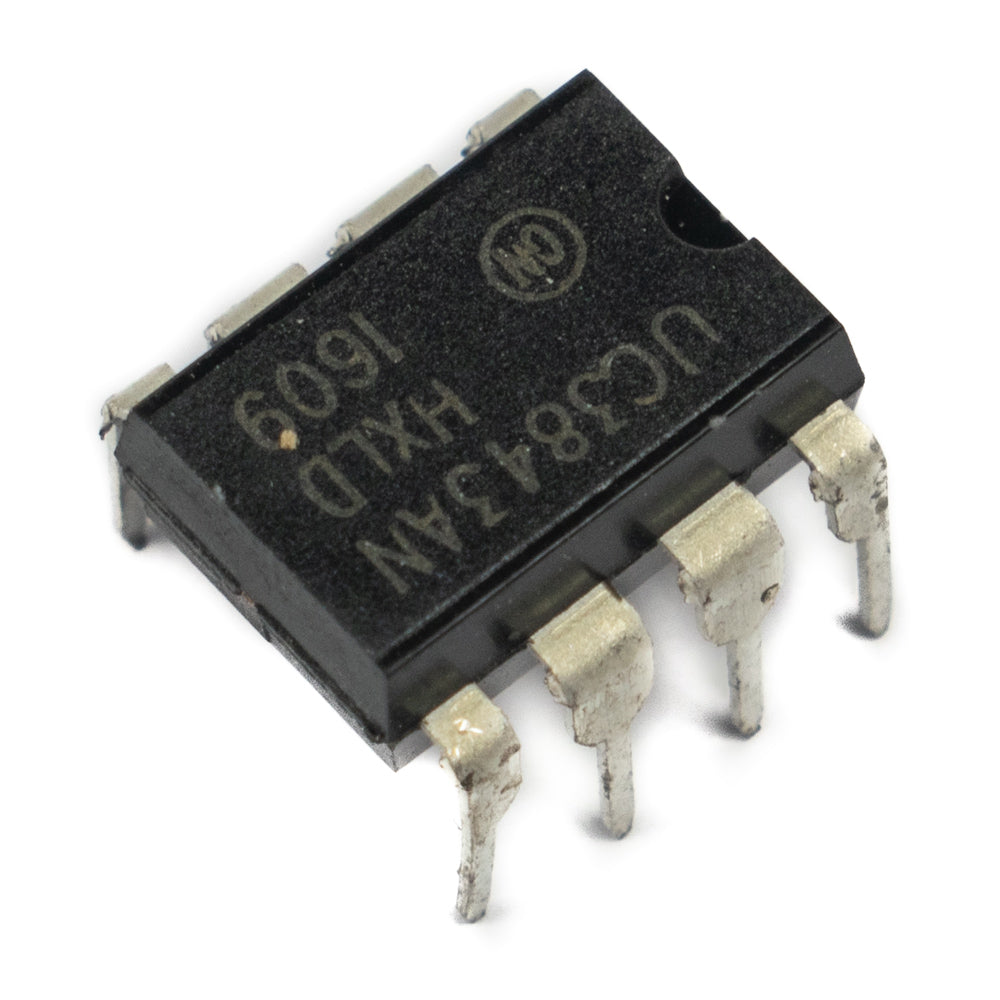

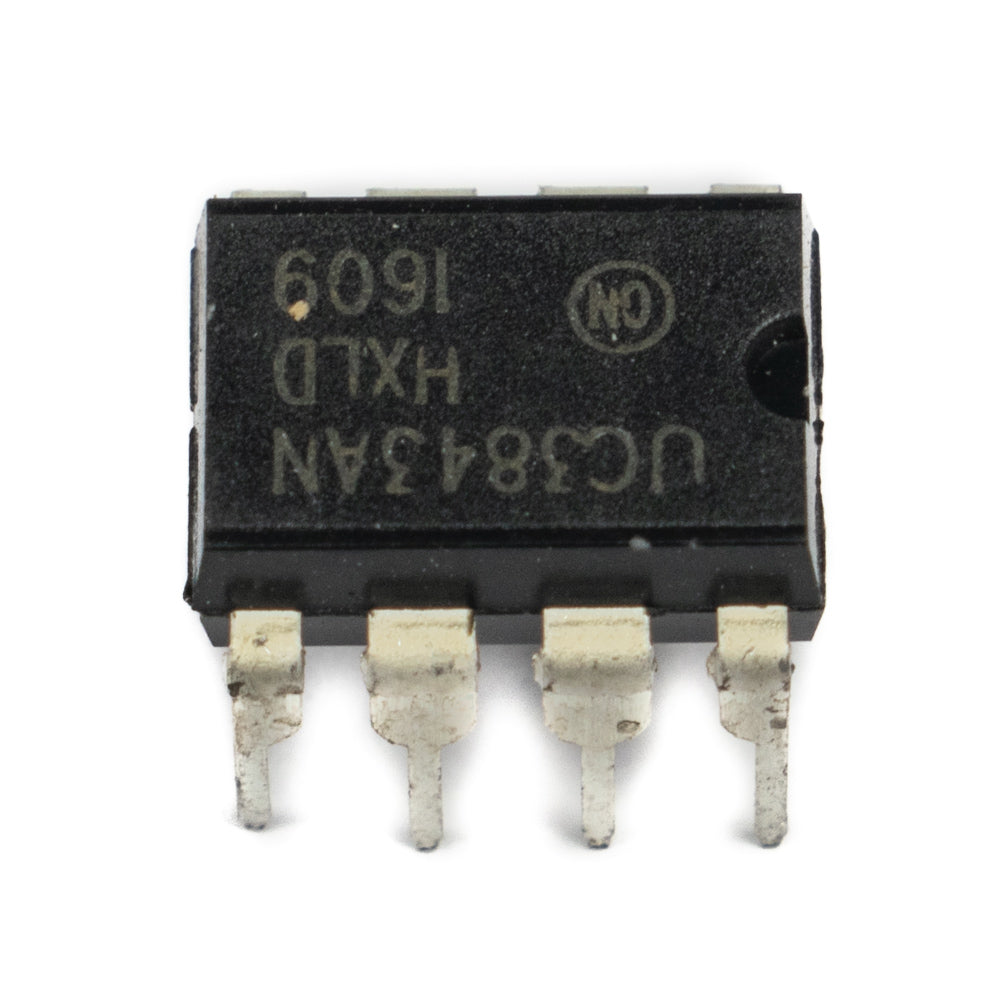

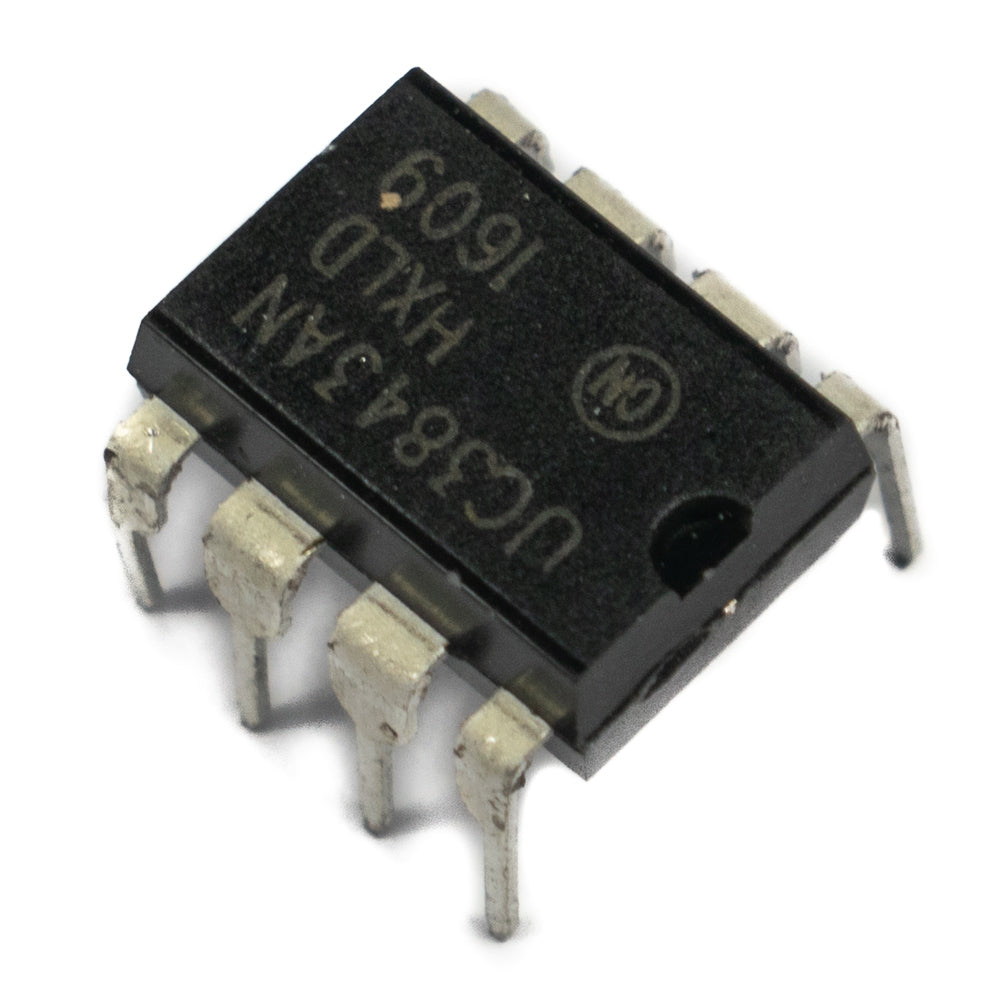

UC3843 Current Mode PWM Controller

UC3843 Current Mode PWM Controller

First Come First Serve Offer (T&C Apply )

12.74
0.00 12.74
Sale Sold out
Shipping calculated at checkout.
The UC3843 fixed frequency current mode controller is specifically designed for off−line and DC−to−DC converter applications offering the designer a cost effective solution with minimal external components. These integrated circuits feature a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET.

Features:

  • Fixed Frequency Current-Mode PWM Controller
  • Trimmed Oscillator Discharge Current for Precise Duty Cycle Control
  • Current Mode Operation to 500 kHz
  • Automatic Feed Forward Compensation
  • Latching PWM for Cycle−By−Cycle Current Limiting
  • Internally Trimmed Reference with Under voltage Lockout
  • High Current Totem Pole Output
  • Under voltage Lockout with Hysteresis
  • Low Startup and Operating Current
Specifications
Part Number UC3843
Type PWM Controller
Frequency 500KHz
Country of Origin China
