22W Type C Wireless Charging Qi PCBA Circuit Board With Qi-Standard
22W Type C Wireless Charging Qi PCBA Circuit Board With Qi-Standard
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability

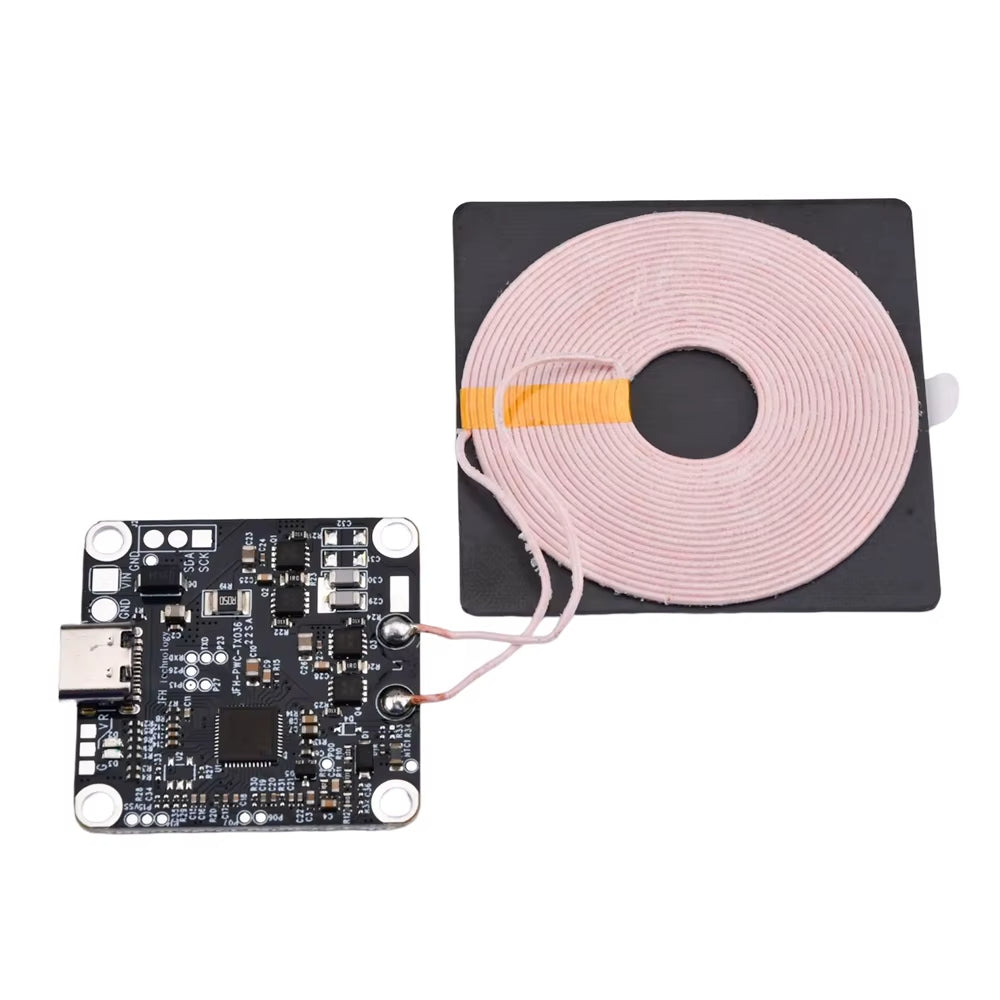

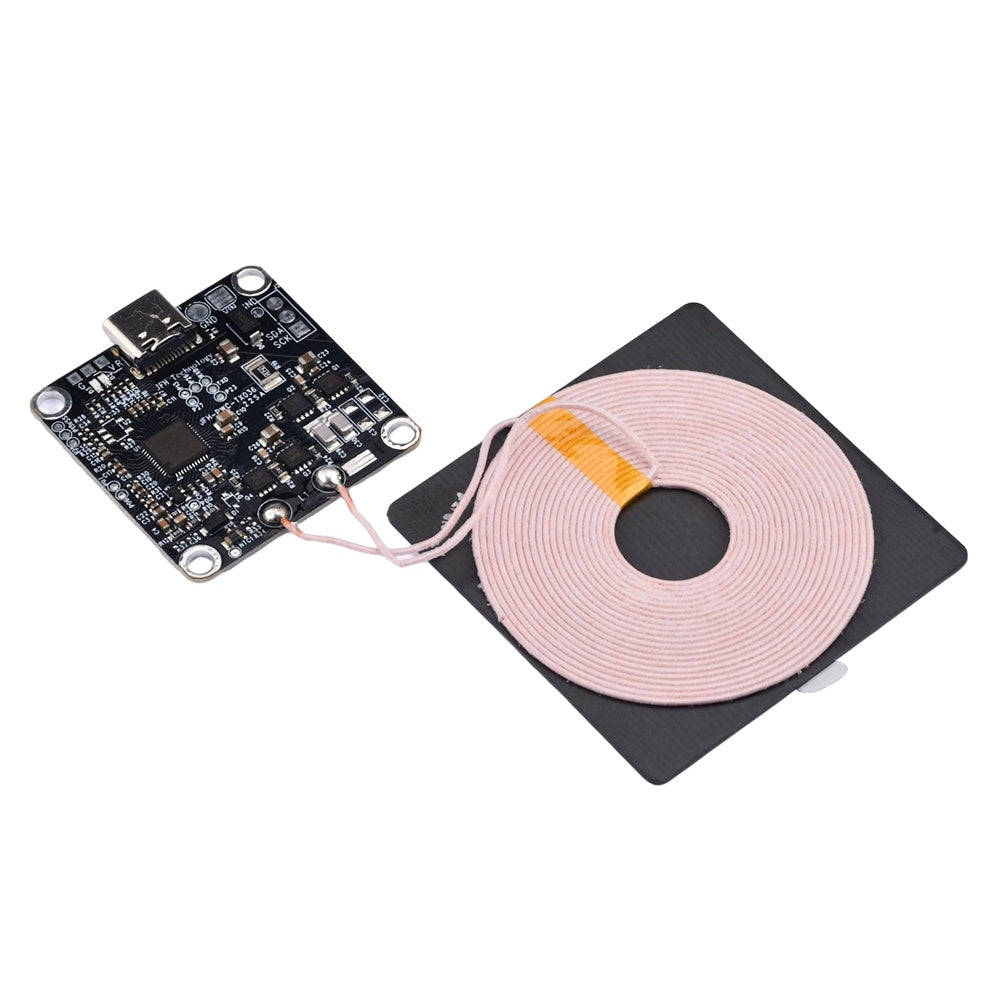

22W Type C Wireless Charging Qi PCBA Circuit Board With Qi-Standard
The 22W Type-C Wireless Charging Qi PCBA Circuit Board is a high-performance charging module designed to support the Qi wireless charging standard, ensuring seamless compatibility with a wide range of Qi-enabled devices. Engineered for efficiency, it delivers up to 22W of fast wireless charging, making it ideal for smartphones, smartwatches, and other wireless-charging-enabled gadgets. Featuring a Type-C input port, this circuit board allows for stable and reliable power delivery, enhancing overall charging performance. Built with intelligent safety mechanisms, it provides protection against over-voltage, over-current, overheating, and short circuits, ensuring a secure and efficient charging experience. The compact and lightweight design makes it easy to integrate into custom charging solutions, such as DIY charging stations, furniture with built-in charging, or other embedded applications. Whether for personal use or commercial integration, this 22W Qi-standard wireless charging PCBA offers a powerful and convenient solution for modern wireless power needs.Technical Details

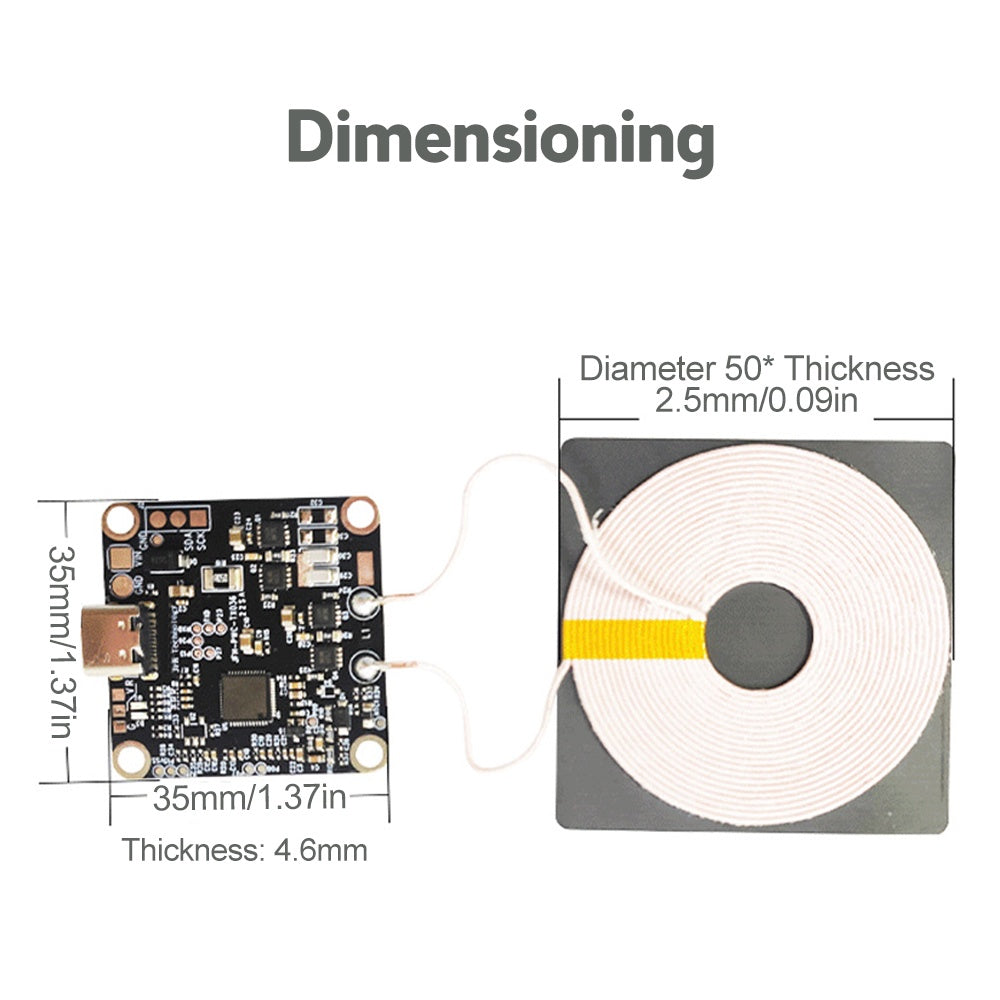

- PCB size: 45×45× thickness 4.6mm
- Coil size: diameter 48.4 × Thickness 2.5mm
- Input voltage: DC 12V ±0.5V
- Input current: MAX: 5A
- Standby power: MAX 0.3W
- Output power: 5W / 7.5W / 10W / 15W / 20W (maximum power output 5W at 5V input)
- Charging distance: 3-12mm (best charging distance 3-10mm)
- Efficiency: MAX 80%
- Charging standard: Universal Qi protocol
- Indicator light function:
- Power on: Green and red light alternately flash 3 times, then red light stays on
- Standby: Red light stays on
- Charging: Green light stays on
- Error: Red light blinks
Features
- Foreign Object Detection (FOD), over-voltage, over-temperature, short-circuit, and other abnormal condition protection
- Overcurrent protection: Output overcurrent protection MAX 5A
- Over-voltage protection: Input over-voltage protection 13.5V ±10%
- Short circuit protection: Input and output short circuit protection
- Temperature protection: Charging stops when temperature exceeds 80°C (tested with actual phone)
Specifications
| Item | Power(W) | Voltage | USB Types | Transmission Distance | PCB Size(mm) |
|---|---|---|---|---|---|
| 12V 22W | 22 | 12 | C-Types | 0-10mm | 45*45*4.5 |
| 9V 10W | 10 | 9 | C-Types | 0-8mm | 80*70*2.5 |
| 12V 15W | 15 | 12 | C-Types | 0-10mm |
45*30*2.7 |
| 5V 3W | 3 | 5 | B-Types | 0-5mm | 43*10*2.5 |
Applications
- Mobile phone charging
- GPS locator
- Electric toothbrush
- Earphone charging Electric storage
- Wireless charging mouse
- Electronic cigarette
PCB Drawing 12V 22W
