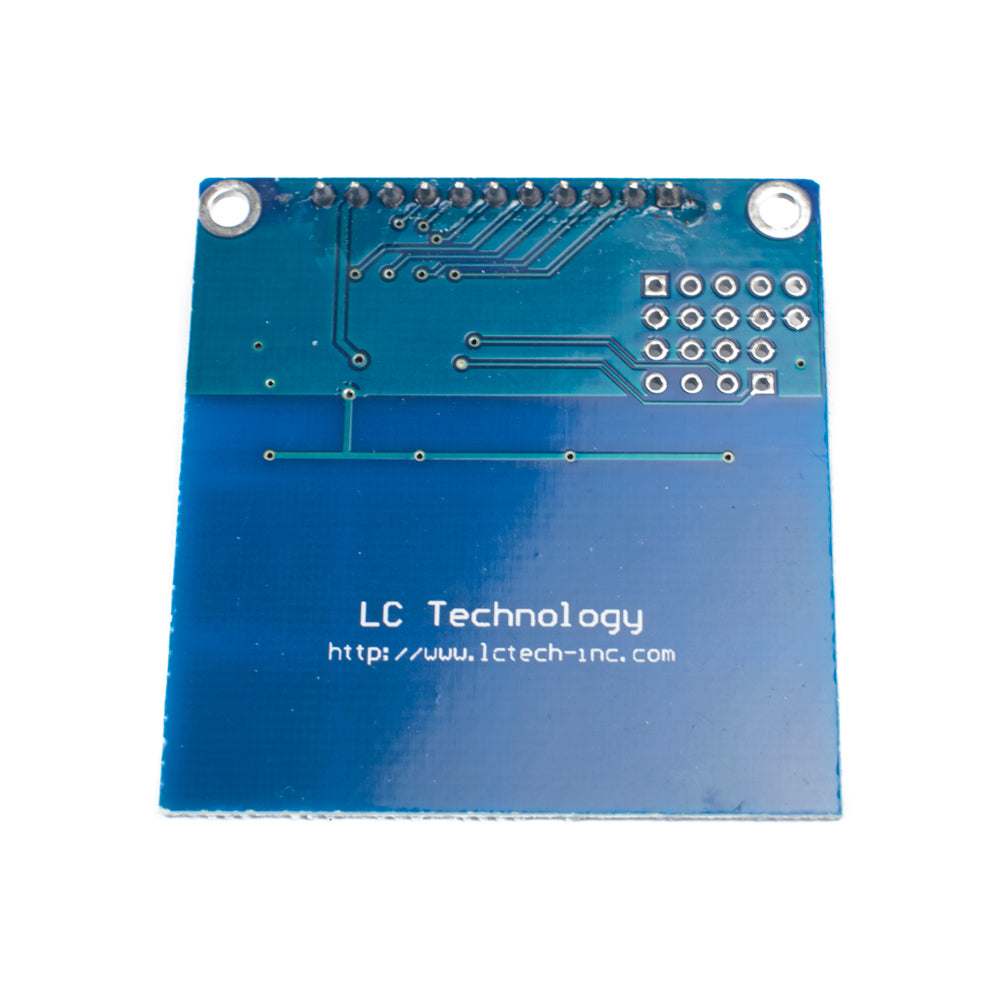

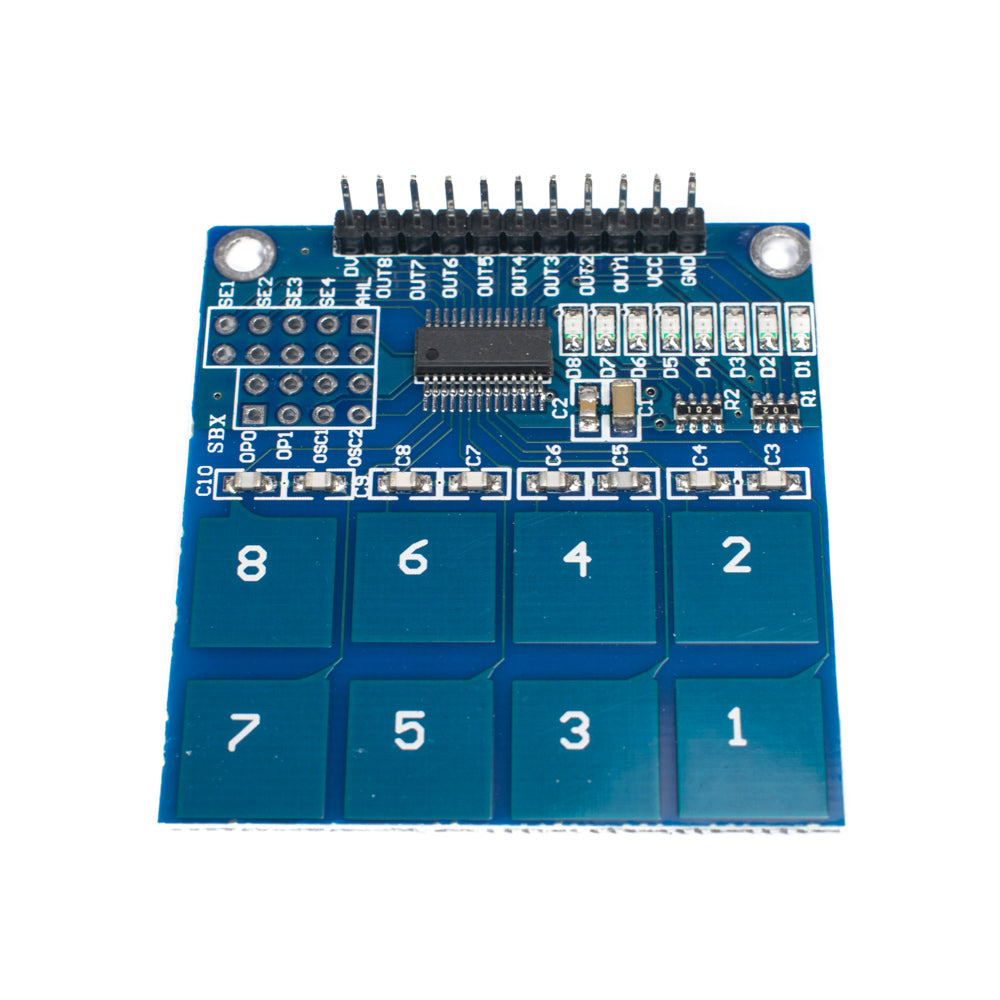

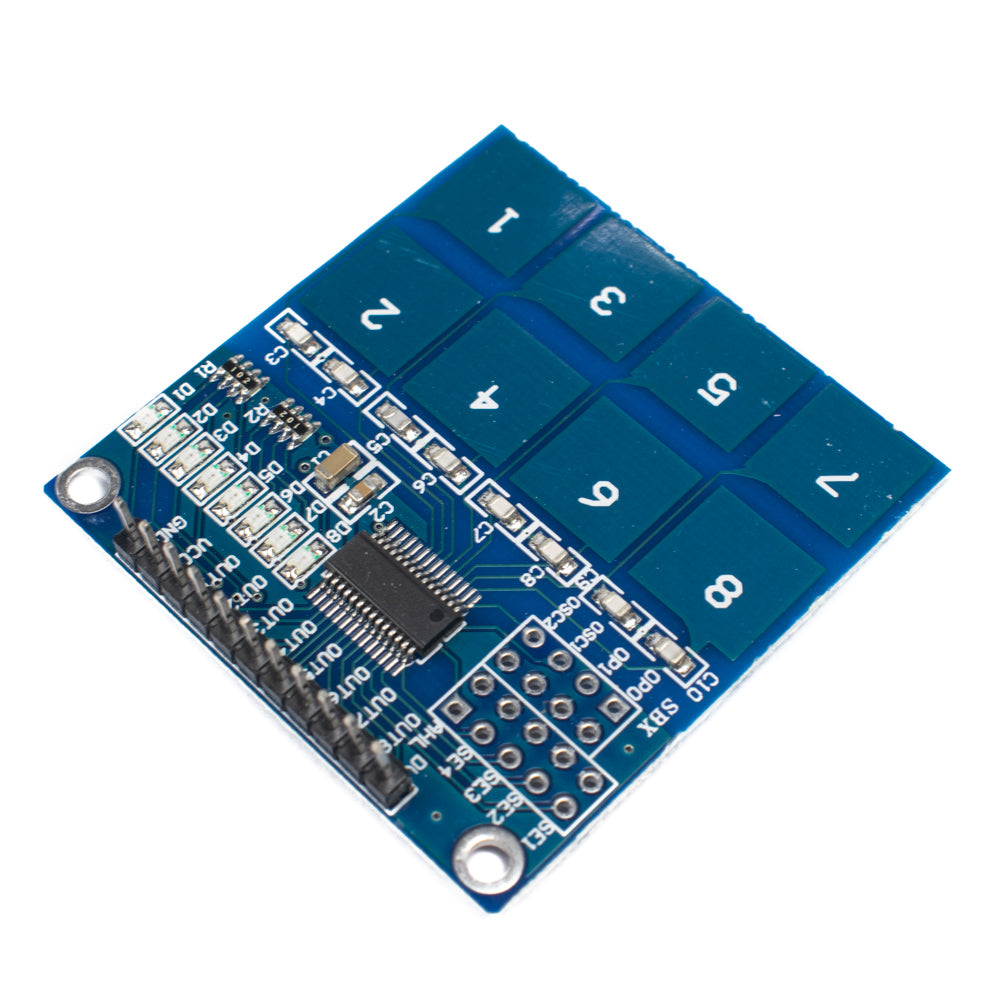

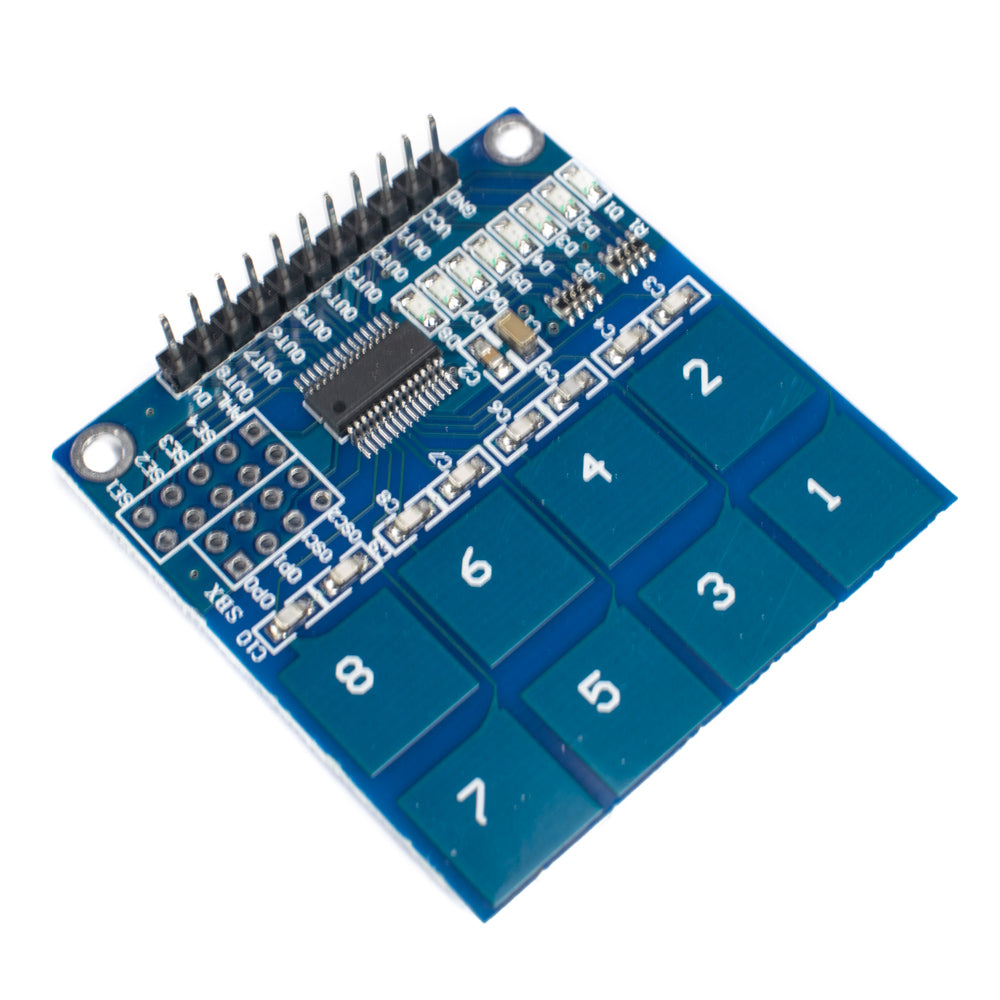

TTP226 - 8 Channel Capacitive Touch Sensor Module

TTP226 - 8 Channel Capacitive Touch Sensor Module

First Come First Serve Offer (T&C Apply )

112.70
0.00 112.70
Sale Sold out
Shipping calculated at checkout.

TTP226 - 8 Channel Capacitive Touch Sensor Module having Onboard 8 key TTP226 capacitive touch induction IC and Onboard 8-way level indicator. Capacitive touch allows electronics to detect when your finger is within a few milimeters of a surface, simulating the "press" of a button, similar to how a pushbutton works.

Specifications
Operating Voltage Range

2.4 ~ 5.5V DC
Output Sink Current

8mA
Output Pin Pull-up Current

4mA
Response Time (Low Power Mode)

220ms
Response Time

60mS
Length (mm)

46
Width (mm)

47
Height (mm)

11
Weight (gm)

6
Shipment Weight

0.010 kg
Shipment Dimensions

8 × 10 × 1 cm
Country of Origin China


Further Info
TTP226 module has a capacitive touchpad detection design that can detect up to 8 touch keys. The main function of this IC is to replace manual switches and buttons with capacitive touchpads. Changes in capacitance are used to detect contact. TTP226 has 8 direct output pins and can accommodate 8 touchpads. Read more
