TTL HC05 O/P Bluetooth Module (Master + Slave) Compatiable Economical Version with Button

TTL HC05 O/P Bluetooth Module (Master + Slave) Compatiable Economical Version with Button

First Come First Serve Offer (T&C Apply )

225.40
299.00 225.40
Sale Sold out
Shipping calculated at checkout.

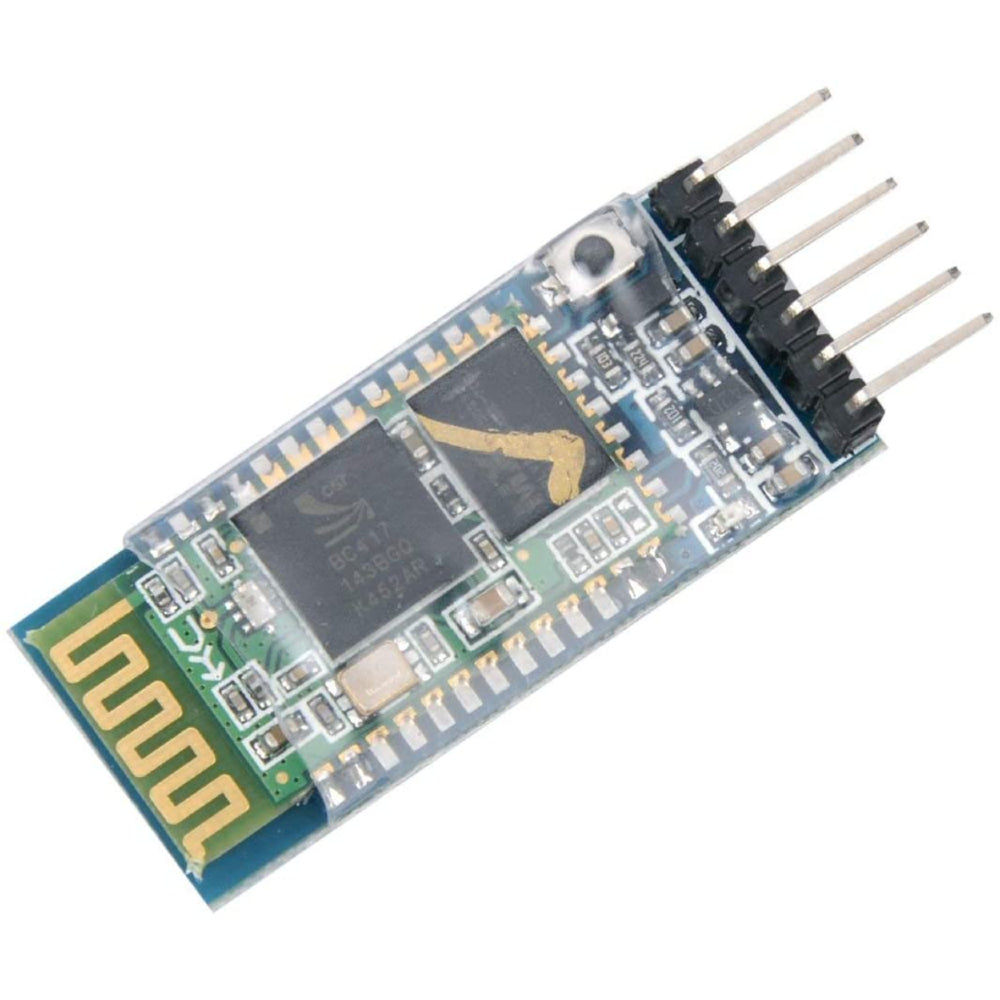

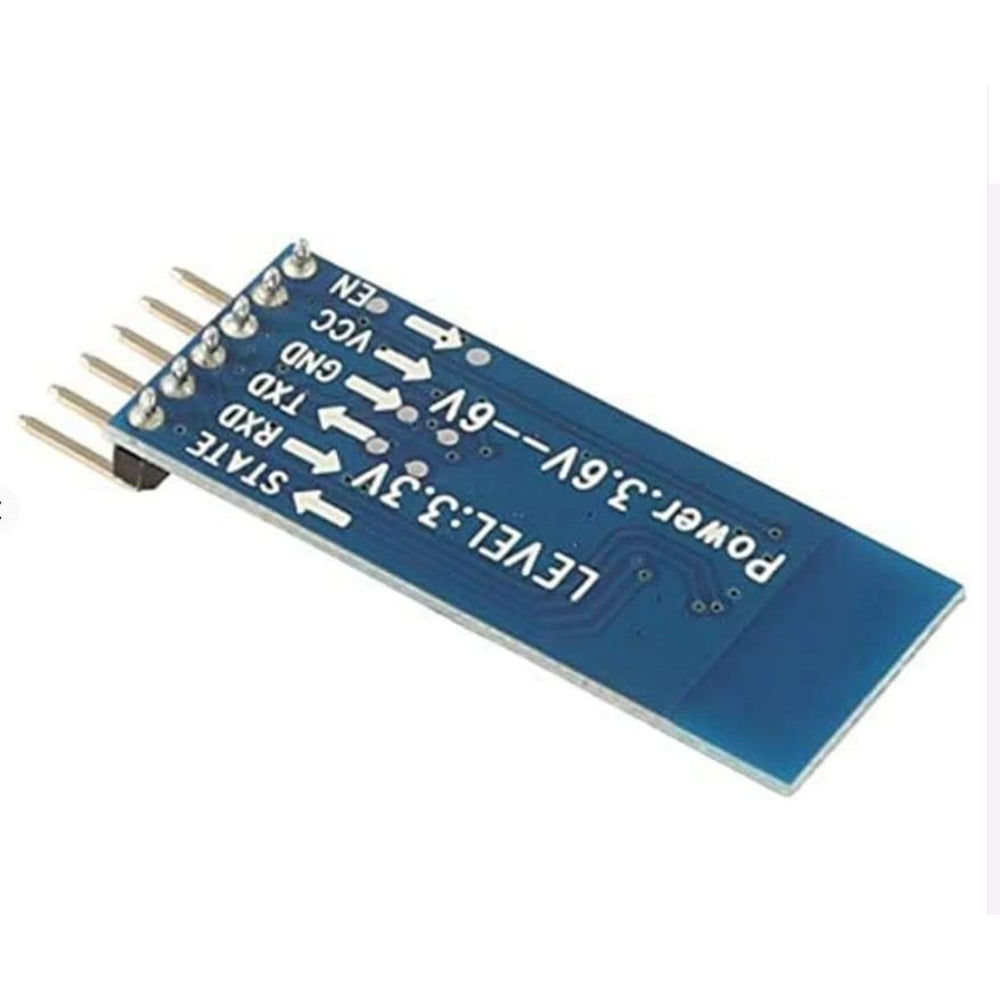

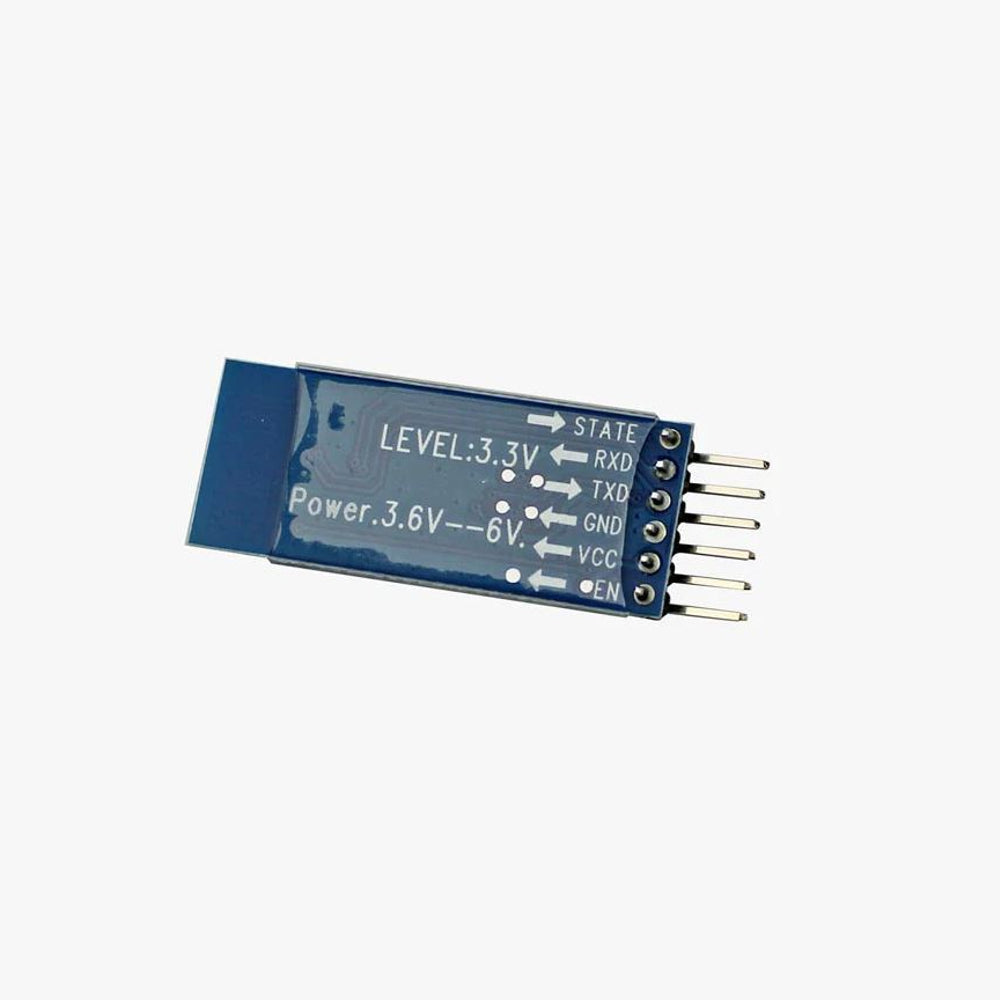

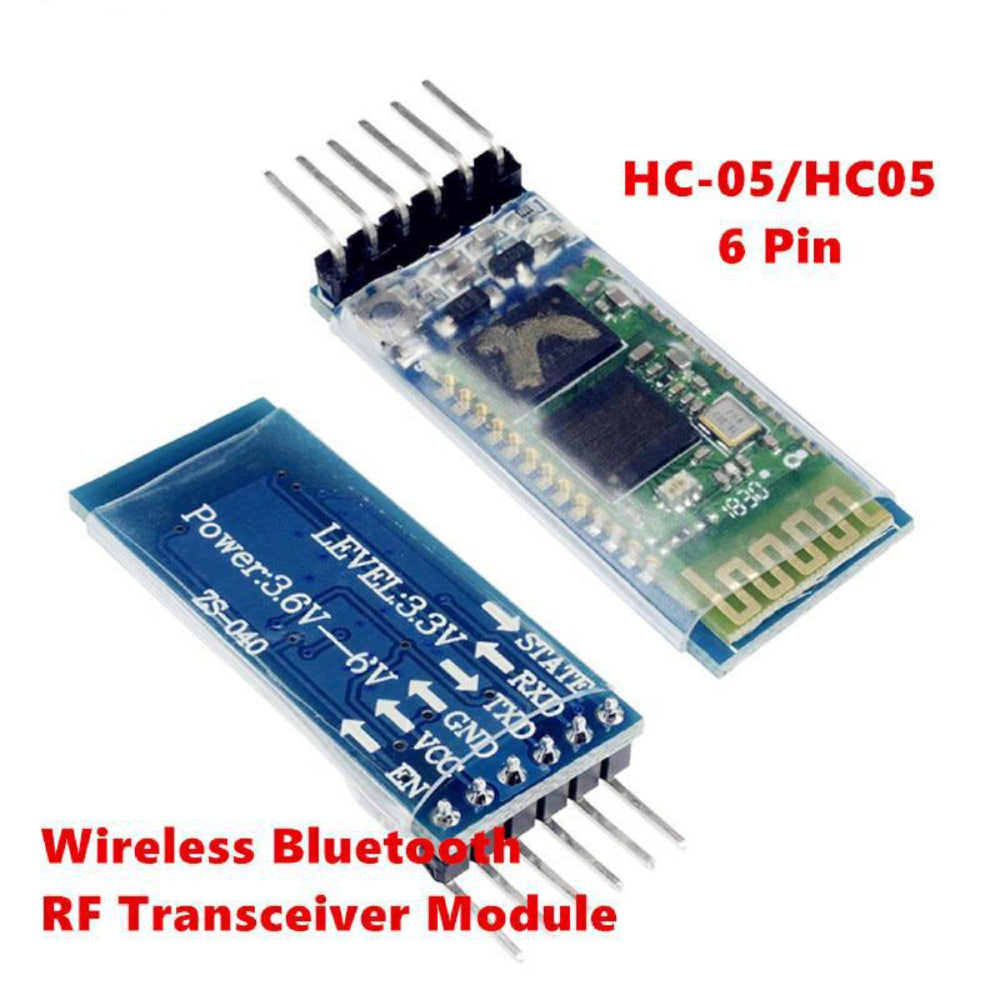

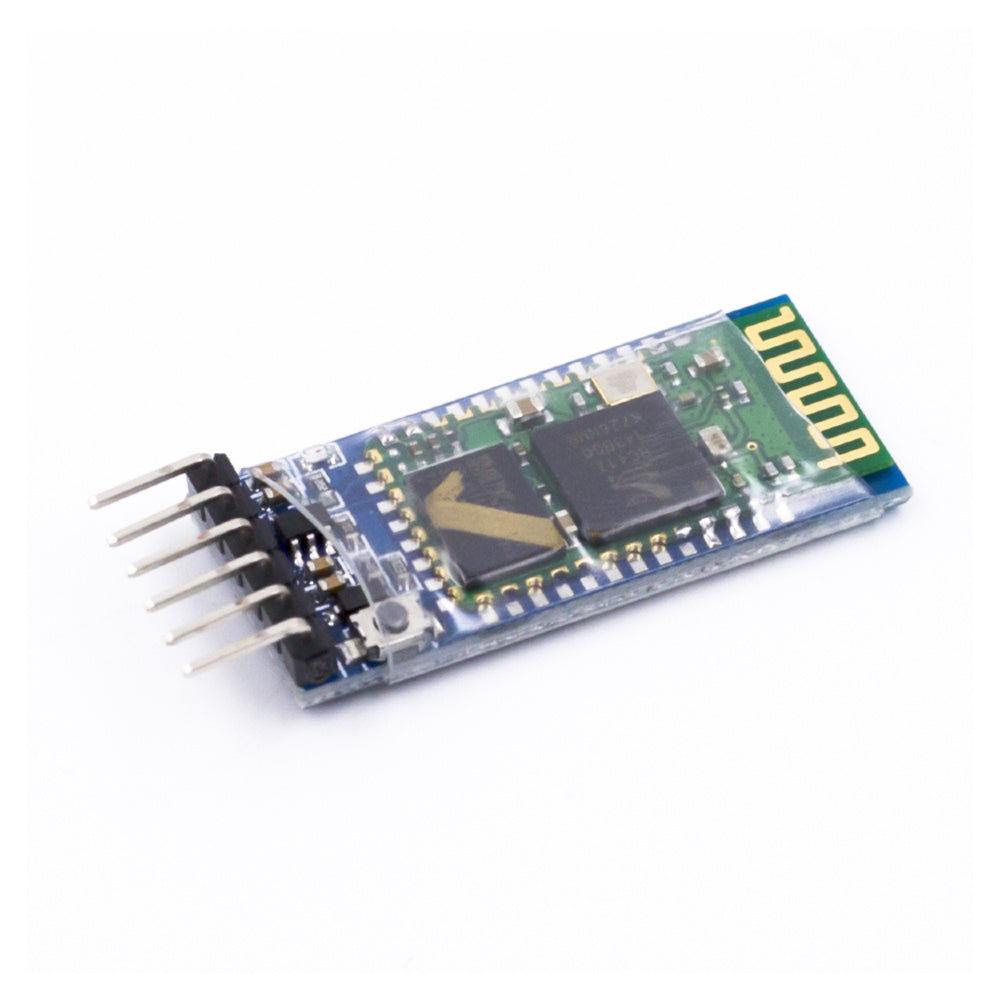

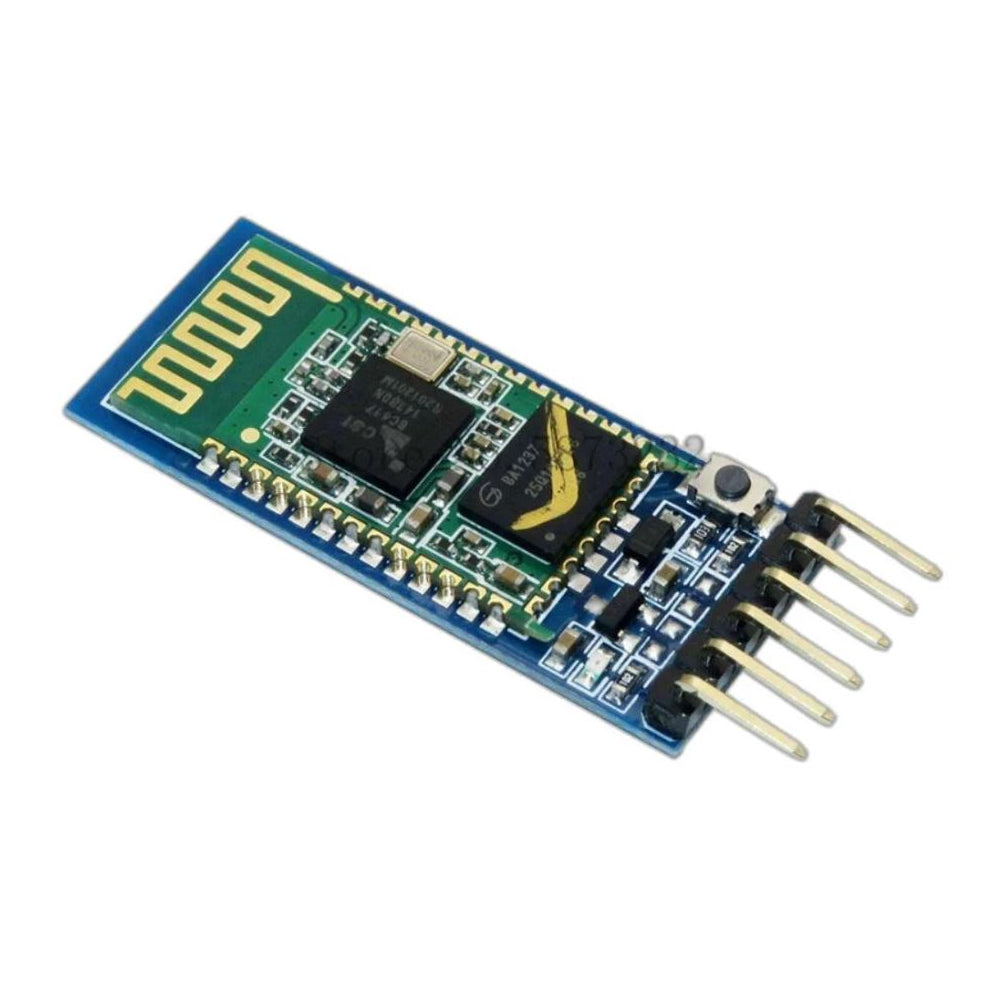

TTL HC05 O/P Bluetooth Module

HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller. It uses the UART protocol to make it easy to send and receive data wirelessly.

The HC-06 module is a slave only device. This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.

Specifications

  • Item Type: HC Series Module
  • Voltage Rating (VDC): 3.6 to 6
  • Switch/Button: Yes
  • Input Supply Voltage (V): 3.6 ~ 6
  • Input current (mA): 50
  • Max. Operating Range (m): 10
  • Operating Frequency (Hz): 2.4GHz ISM band
  • Modulation Type: GFSK (Gaussian Frequency Shift Keying)
  • Emission power: 4dBm, Class 2
  • Sensitivity (dBm): -84dBm at 0.1% BER
  • Length (mm): 43
  • Width (mm): 16.5
  • Height (mm): 7
  • Weight (g): 5

Features

  • Working current: Matching for 30 mA, matching the communication for 8 mA
  • Dormancy current: No dormancy
  • Used for a GPS navigation system, water, and electricity gas meter reading system
  • Compatible with computer and Bluetooth adapter, PDA, seamless connection equipment
  • Bluetooth module HC-08: Master and slave two-in-one module
  • Uses the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards
  • Potter default baud rate of 9600, user-configurable
  • Bluetooth protocol: Bluetooth Specification v2.0+EDR
  • Speed: Asynchronous: 2.1Mbps (Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
  • Security: Authentication and encryption
  • Profiles: Bluetooth serial port

Applications :

  • Wireless Data Transmission: Send and receive data between devices such as microcontrollers, smartphones, or computers.

  • Home Automation: Control home appliances like lights, fans, and security systems via Bluetooth from a mobile device.

  • Wireless Robotics: Enable wireless control of robots or drones using Bluetooth communication.


  • PC to Microcontroller Communication: Establish communication between a PC and microcontroller (e.g., Arduino) for data exchange.

  • Sensor Monitoring: Wirelessly transmits sensor data (temperature, humidity, etc.) to a mobile app or PC.

Physical Attributes

  • L * W * H in mm : 43 * 16.5 * 7
  • Weight in gm: 5

Integration with Arduino

TTL HC05 Bluetooth Module

Sample Code



Integration with Raspberry Pi

TTL HC05 Bluetooth Module



Sample Code

Package Includes

  • 1 x TTL HC05 O/P Bluetooth Module (Master + Slave) Compatiable Economical Version with Button
