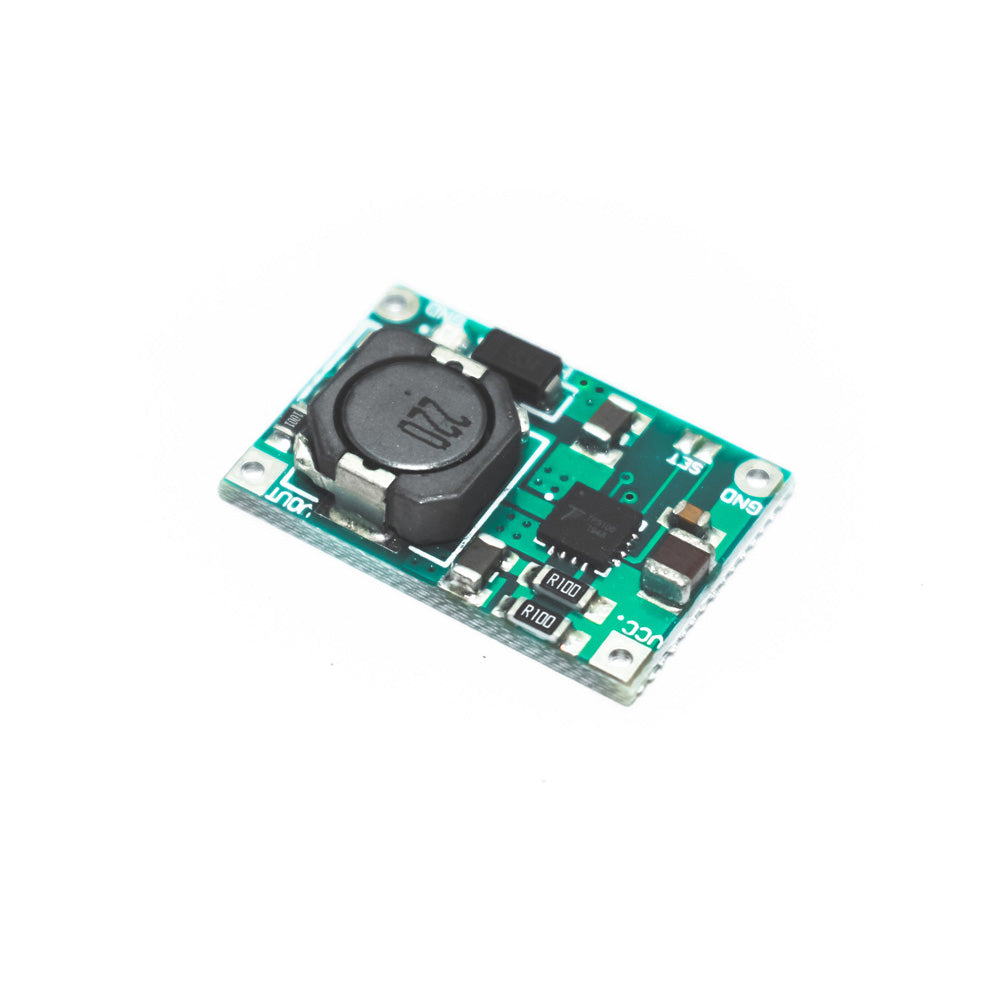

TP5100 4.2v and 8.4v Single/ Double Lithium Battery Charging Board

TP5100 4.2v and 8.4v Single/ Double Lithium Battery Charging Board

First Come First Serve Offer (T&C Apply )

60.76
0.00 60.76
Sale Sold out
Shipping calculated at checkout.

TP5100 4.2v 8.4v Single Double Lithium Battery Charge Management Lion Battery Compatible 2A Charging Board is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment for large current charging management applications. TP5100 has 5V-15V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three-phases, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device, and the large current charging still maintains a smaller amount of heat. TP51OO built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection, and another external Schottky diode.

Features:

  1. Input voltage: 5-15V DC power supply.
  2. Charge status: full and unloaded blue lights, charging red.
  3. Double 8.4v / 4.2v lithium rechargeable single .
  4. Programmable charge current. 0. 1A-2A.
  5. Programmable steady precharge current 10% -100%.
  6. Wide operating voltage, maximum reach I8V.
  7. Red and green LED charge status indicator.
  8. Chip temperature protection, overcurrent protection, under-voltage protection.
  9. Battery temperature protection, reverse battery shutdown, short circuit protection.
  10. Switching frequency 400Khz, usable inductance 20uH, and more.
  11. PWR_ON Power battery for switching control.
Specification
Model

TP5100
Input Supply voltage

5 ~ 15V DC
Programmable charge current

0.1 ~ 2 A.
Length (mm)

26
Width (mm)

18
Height (mm)

5
Country of Origin China
