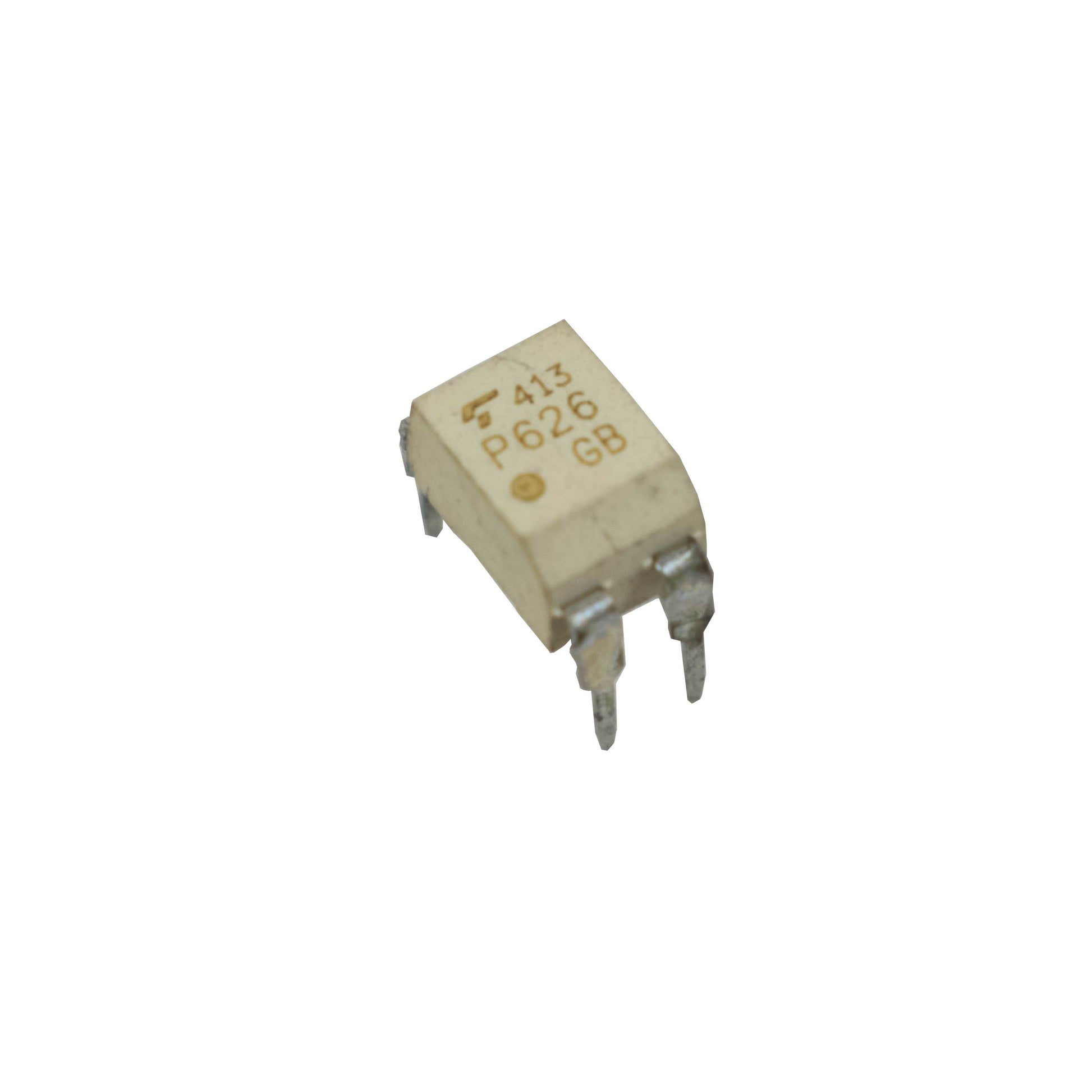

TOSHIBA TLP626 Photocoupler IRED & Photo-Transistor DIP 4

TOSHIBA TLP626 Photocoupler IRED & Photo-Transistor DIP 4

First Come First Serve Offer (T&C Apply )

22.54
0.00 22.54
Sale Sold out
Shipping calculated at checkout.

TLP626 is a transistor output optocoupler. It is specifically a low input transistor with AC input. This optocoupler is widely used in operations involving the isolation of high-speed signals from noise-sensitive circuits. Its common applications include a communication interface, power supply, and AC voltage detection.

TLP626 photocouplers, like most TOSHIBA optocouplers, are made composed of a high-intensity infrared light-emitting diode (LED) optically coupled to a photodetector constructed utilizing the most recent method. The LED-photodetector couple is enclosed in an electrically insulated raisin which is almost transparent in nature. TLP626 is a very small and light package hence is easy to handle and mount on almost any printed circuit board.

Features

  • High-level linearity
  • Significant reduction in power consumption
  • Common-mode transient immunity of 20 kV/μs makes it stable even in an electrically noisy motor control environment.
  • High-precision delta-sigma AD converter used
Specifications
Manufacturer
 Toshiba
Product Category
 Transistor Output Optocouplers
RoHS Certified
Output Type
 NPN Phototransistor
Number of Channels
 1 Channel
Forward Current 50 mA
Maximum Collector-Emitter Voltage
 55 V
Maximum Collector Current 50 mA
Isolation Voltage 5000 Vrms
Max Collector-Emitter Saturation Voltage
 0.4 V
Forward Voltage 1.3 V
Power Dissipation 150 mW
Min/Max Operating Temperature - 55°+ 100°C
Current Transfer Ratio 1200 %
Dimensions 3.65 mm*9.66 mm*6.4 mm
Package  DIP
Country of Origin China
