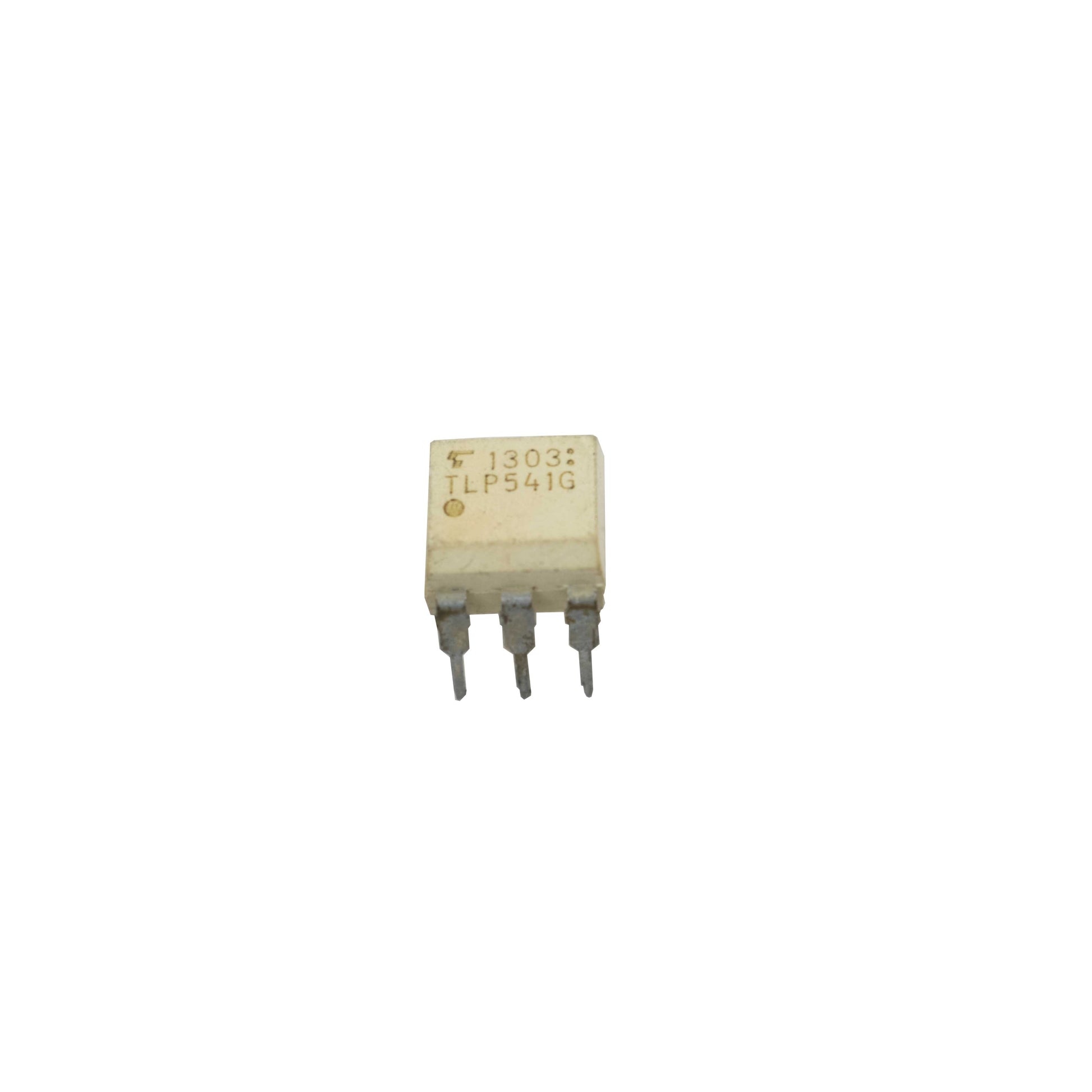

Toshiba Photocoupler TLP541G GaAs Ired & Photo-Thyristor

Toshiba Photocoupler TLP541G GaAs Ired & Photo-Thyristor

First Come First Serve Offer (T&C Apply )

41.44
0.00 41.44
Sale Sold out
Shipping calculated at checkout.

A thyristor is a solid-state semiconductor device with four layers of alternating P- and N-type materials. It acts exclusively as a bistable switch, conducting when the gate receives a current trigger, and continuing to conduct until the voltage across the device is reversed biased, or until the voltage is removed .

The TOSHIBA TLP541G is a  programmable Controller, AC-Output Solid State Relay Module that is a Photocoupler consists of a photo−thyristor optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package.

Features:-

  • Peak off-state voltage: 400 V (min.)
  • Trigger LED current: 7 mA (max.)
  • On-state current: 150 mA (max.)
  • Isolation voltage: 2500 Vrms (min.)
  • UL recognized: UL1577, file no. E67349
Specifications
Model TLP541G
Brand Toshiba
Isolation Voltage 2500 Vrms
If - Forward Current 70 mA
Vf - Forward Voltage 1.15 V
Off-state Output Voltage - VDRM 400 V
Maximum Continuous Output Current 150 mA
Operating Temperature -30 °C – 85 °C
Package DIP
Quantity 100
Country of Origin China
