TNY277PN Tiny switch
TNY277PN Tiny switch
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability

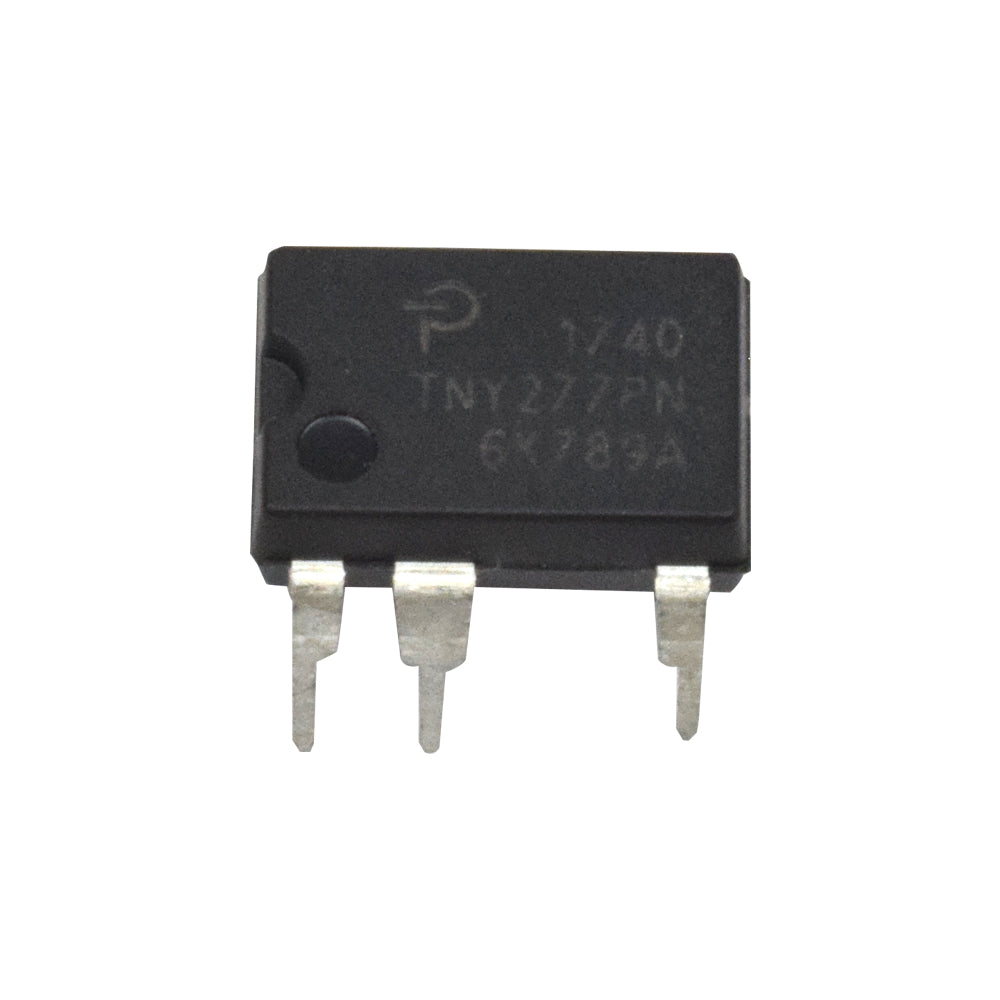

TNY277PN is a type of IC this IC has 7 pin its a tiny switch IC in which one pin is not present its trough hole components. It has manufactured by Power integration. Tiny Switch-III combines a high-voltage power MOSFET switch with a power supply controller in one device. Unlike conventional PWM (pulse width modulator) controllers, it uses a simple ON/OFF control to regulate the output voltage. The controller consists of an oscillator, enable circuit (sense and logic), current limit state machine, 5.85 V regulator, BYPASS/ MULTI-FUNCTION pin under voltage, overvoltage circuit, and current limit selection circuitry, over-temperature protection, current limit circuit, leading edge blanking, and a 700 V power MOSFET. Tiny Switch-III incorporates additional circuitry for line under voltage sense, auto-restart, adaptive switching cycle on-time extension, and frequency jitter.
Features
- DIP8/SO8 Packages
- Accurate hysteretic thermal shutdown protection with automatic recovery eliminates need for manual reset
- Improved auto-restart delivers <3% of maximum power in short-circuit and open loop fault conditions
- Line under voltage detect threshold set using a single optional resistor
- It has 8 pins
- Output overvoltage shutdown with optional Zener
Specifications
| Model | TNY277PN |
| Brand | Power electronics |
| Type | IC |
| Output voltage | 12V |
| Output Power | 18W |
| Switching Frequency | 132KHz |
| Vin | 85AC |
| Storage Temperature Range | -40°C to 150°C |
| Country of Origin | China |
