TLP550 Photocoupler DIP-8 IC

TLP550 Photocoupler DIP-8 IC

First Come First Serve Offer (T&C Apply )

45.86
0.00 45.86
Sale Sold out
Shipping calculated at checkout.

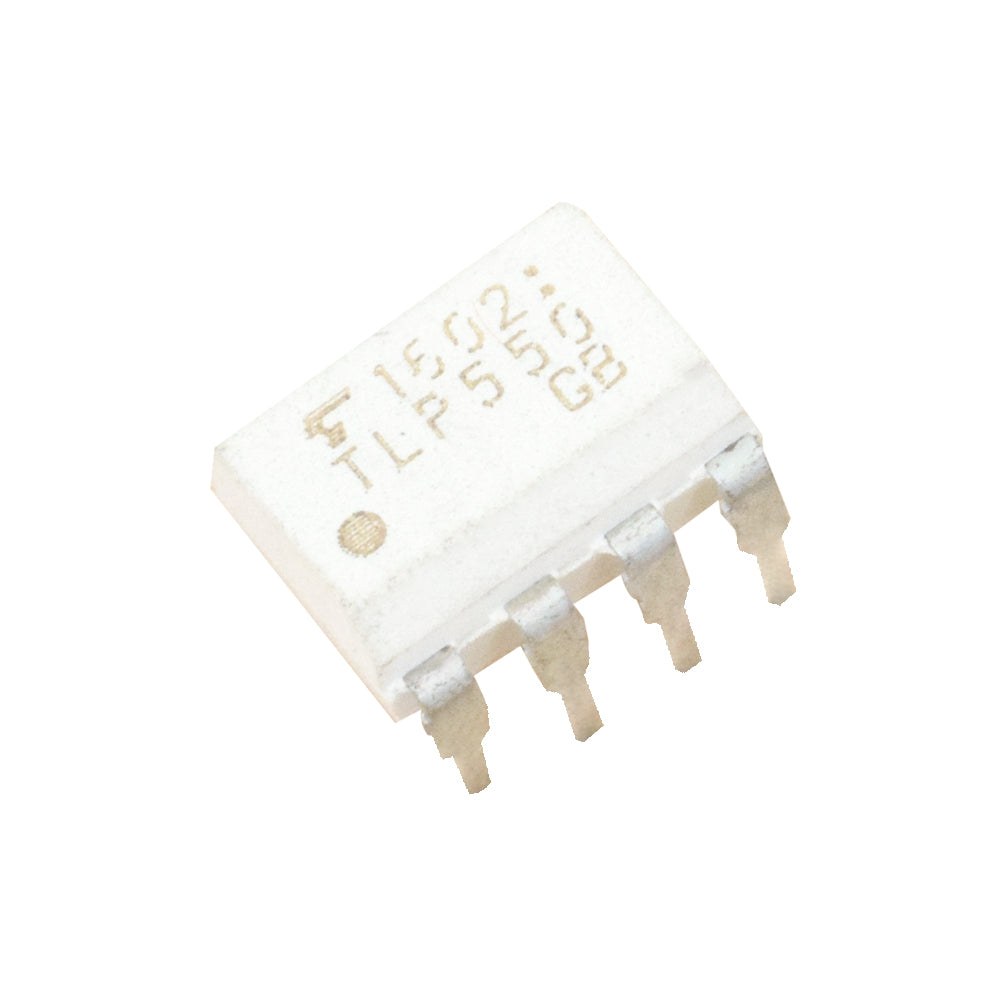

TLP550 is an eight pins IC constructed with a high-emitting diode and a photodiode in. As we already know, the photocoupler contains an infrared-emitting LED and a photocoupler; a current is first applied to the Optocoupler, which makes the infrared LED emit a light proportional to the current. When the light hits the photosensitive device, it switches on and starts to conduct a current as any ordinary transistor might. Its isolation voltage is 2500VRMS its switching speed is 0.5 microseconds.

Pinout details:

  1. NC
  2. Anode
  3. Cathode
  4. NC
  5. Emitter
  6. Collector
  7. NC
  8. Cathode
Specification
 Model TLP550
 Type Photocoupler IC
 Package DIP-8
 Lead solder temperature 260-degree centigrade
 Isolation Voltage 2500V RMS
 Pulse forward current  50mA
 Total power dissipation 100mW
 Operating and Storage Temperature Range -55°C TO 125°C
Country of Origin China
