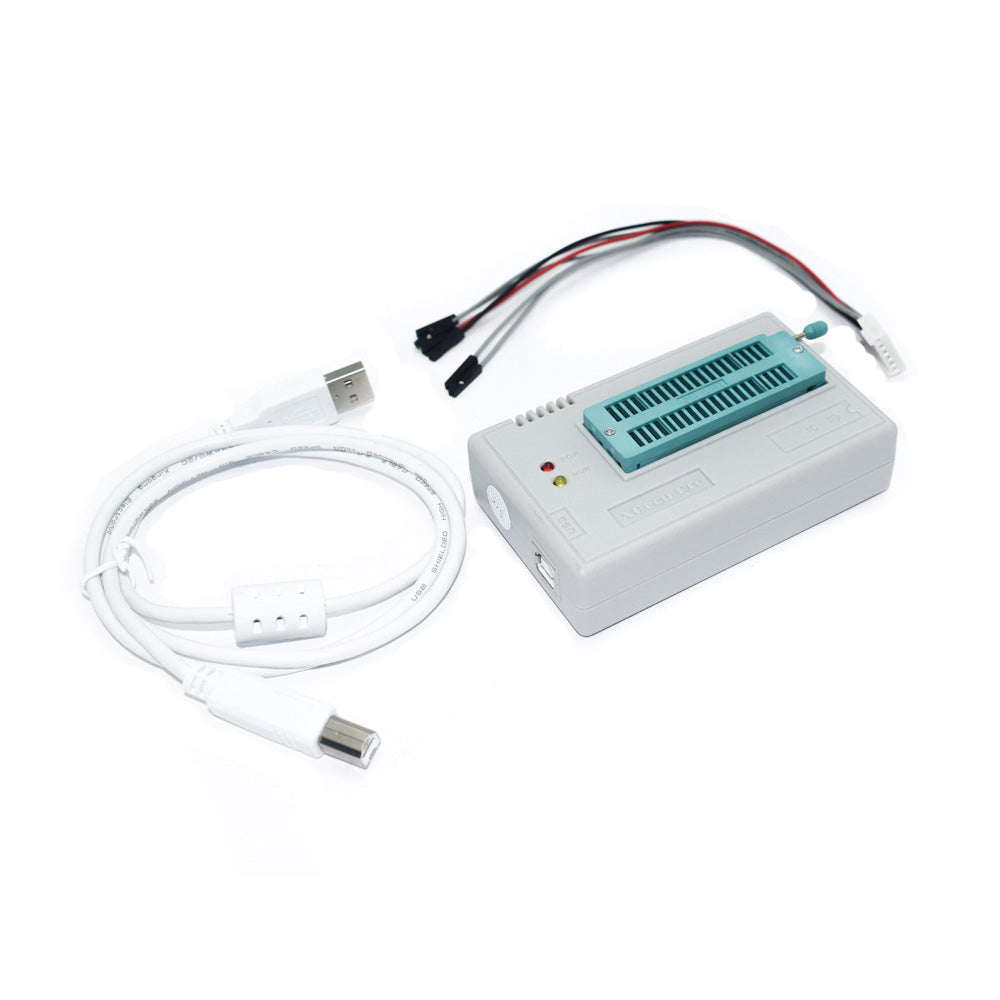

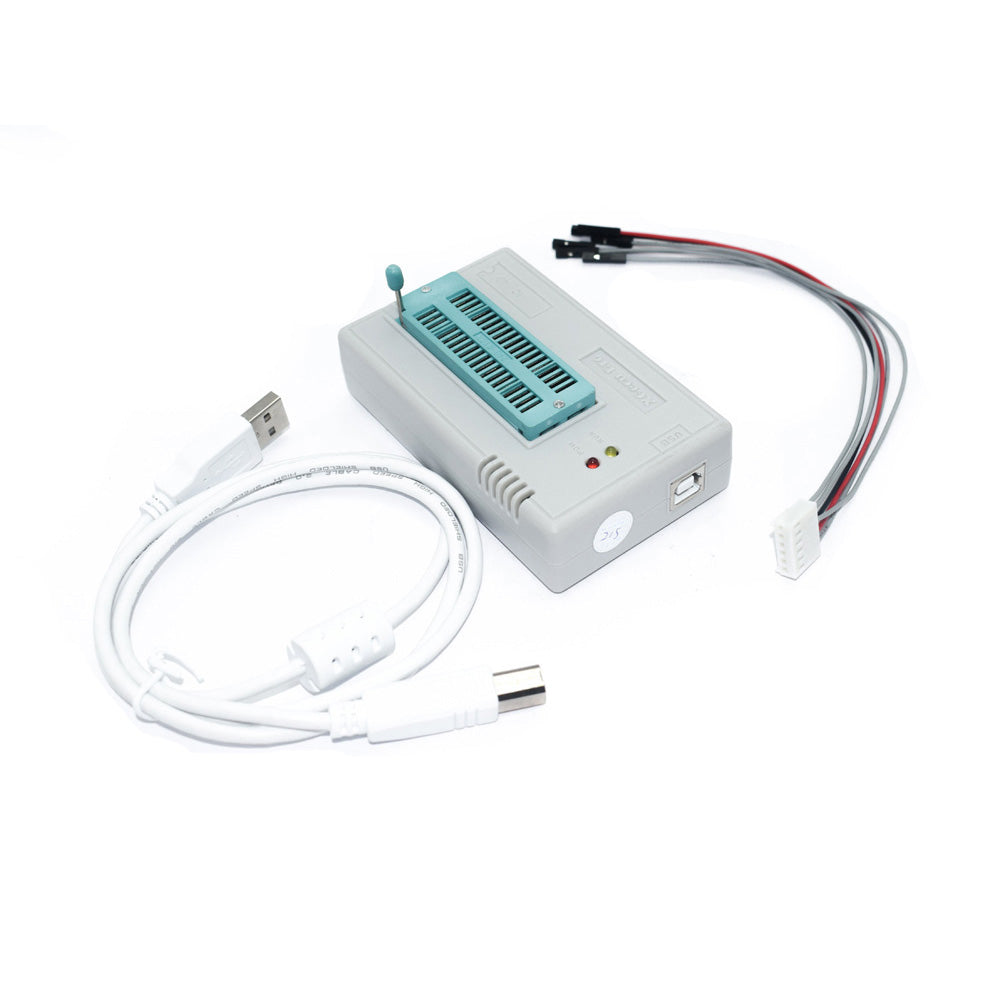

TL866II Plus Universal Programmer
TL866II Plus Universal Programmer
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
The user interface is well-designed and is in complete accord with the operating habit of the Windows series of software. The built-in binary editor is comparable to pure professional editing software. You can directly read, write and modify the files such as BIN format, HEX format, JED format and so on. In addition, it has a complete and practical project mode that makes mass production more convenient and safer.
15000+ supported devices from hundreds of manufacturers by 7.05 version of SW (Mar. 1th, 2018).
NAND FLASH: Samsung K9xxx, SK Hynix (ex Hynix) HY27xxx, H27xxx, Micron MT29Fxxx, NANDxxx, Spansion S34xxx, NAND Toshiba TH58NVGxxx.
Serial NAND FLASH: Micron MT29Fxxx.
Serial Flash: standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25Bxxx, 25Dxxx, 25Fxxx, 25Lxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx, 25Wxxx, 25Xxxx, 26Vxxx, 45PExx, MX26Lxxx ).DataFlash (AT45Dxxx, AT26Dxxx)
Parallel NOR Flash: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, Samsung'sK8Pxxxx, K8Dxxxx series, ...
EPROM: NMOS/CMOS, 27xxx and 27Cxxx series
EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series,
Serial E(E)PROM: 24XXX,25XXX series,
Microcontrollers MCS51 series:89Cxxx, 89Sxxx, 89EXXX,89VXX
Microcontrollers Atmel AVR 8bit/16bit: AT90Sxxxx, ATtiny, ATmega series
Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx series
GAL Programmable logic device programming and SRAM test
I.C. Tester: TTL type: 54,74 S/LS/ALS/H/HC/HCT series; CMOS type: 4000, 4500 series;
Static RAM: 6116
Features:
- Support simultaneously burn with 4 Programmers each computer
- The Minimum Volume and the lowest Power Consumption and Do not Feel any Heat in Process.
- All chips do not need an external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.
- Best internal 40 pins over-voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC.
- Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH
- Unique serial ICSP interface. supporting the serial download and high-speed parallel high voltage programming. Note: TL866CS does not support ICSP
- Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error.
- Chip auto serial number is the most complete and practical.
- Original chip encryption operation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.
Specification
| Model | TL866II Plus |
| Interface | Multi-Functional ICSP |
| Socket | 40 Pin ZIF socket, supports Fast Mode SPI |
| USB Port | Data Transfer and Power Supply |
| Protection | Over Voltage and Over Current protection |
| Support | EPROM, EEPROM, FLASH, SPI, I2C, 93Cxx, ICSP, etc. |
| Country of Origin | China |
