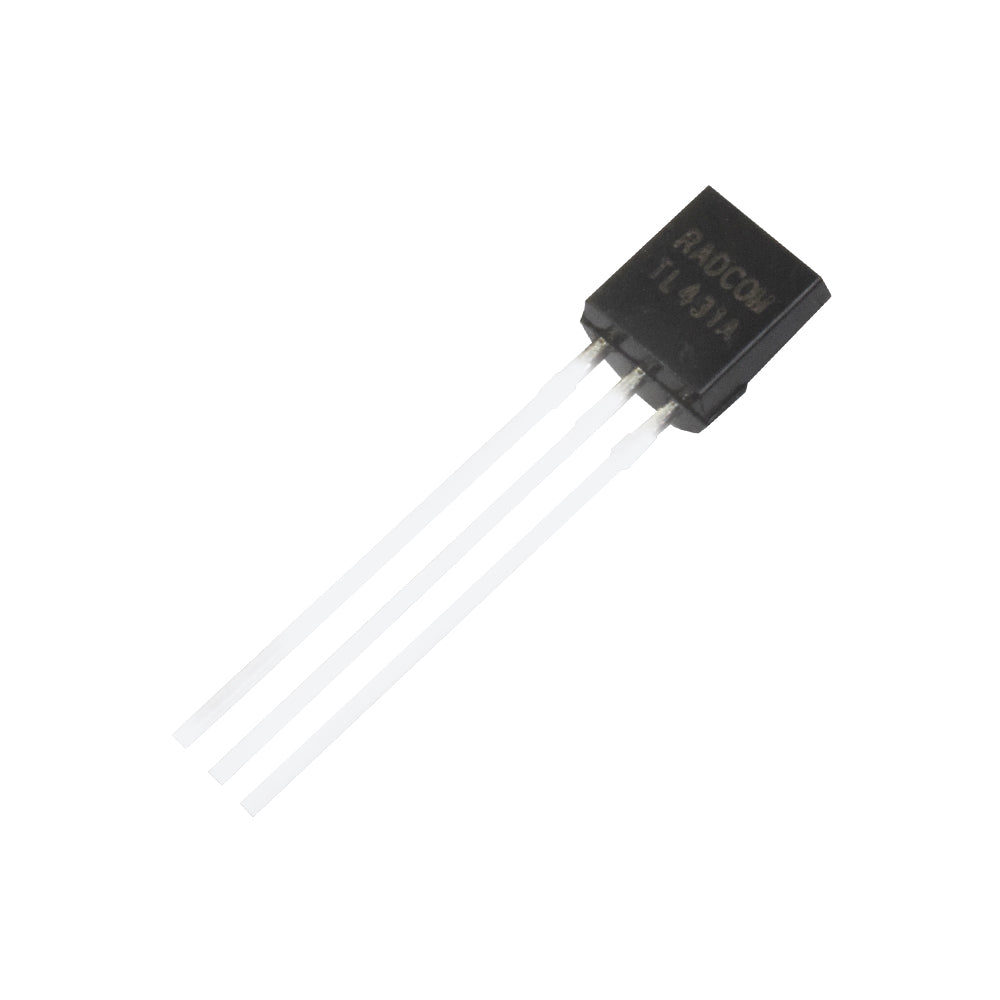

TL431A 36V Programmable Shunt Regulator TO-92

TL431A 36V Programmable Shunt Regulator TO-92

First Come First Serve Offer (T&C Apply )

1.94
0.00 1.94
Sale Sold out
Shipping calculated at checkout.

The three-terminal adjustable TL431A is a type of regulator which has guaranteed thermal stability over the relevant temperature ranges. Two external resistors can be used to adjust the output voltage between VREF (about 2.5 volts) and 36 volts. The typical dynamic output impedance of these devices is 0.2. These devices are an excellent replacement for Zener diodes in many applications thanks to active output circuitry, which offers a very sharp turn-on characteristic.

Features:

  • Programmable Output Voltage to 36 Volts
  • Low Dynamic Output Impedance 0.2Ω Typical
  • Sink Current Capability of 1.0 to 100mA
  • Equivalent Full-Range Temperature Coefficient of 50ppm/°C Typical
  • Temperature Compensated For Operation Over Full Rated Operating Temperature Range
  • Low Output Noise Voltage
  • Fast Turn-on Response
Specifications:
Model TL431A
Type Regulator
LOT No 20151215
Pack of 1000
Package TO-92
Terminal 3(Ref, Anode, Cathode)
Cathode Voltage 37V
Country of Origin China
