TDT-8480 4S-20S 100A Battery Management System

TDT-8480 4S-20S 100A Battery Management System

First Come First Serve Offer (T&C Apply )

3,859.24
0.00 3,859.24
Sale Sold out
Shipping calculated at checkout.

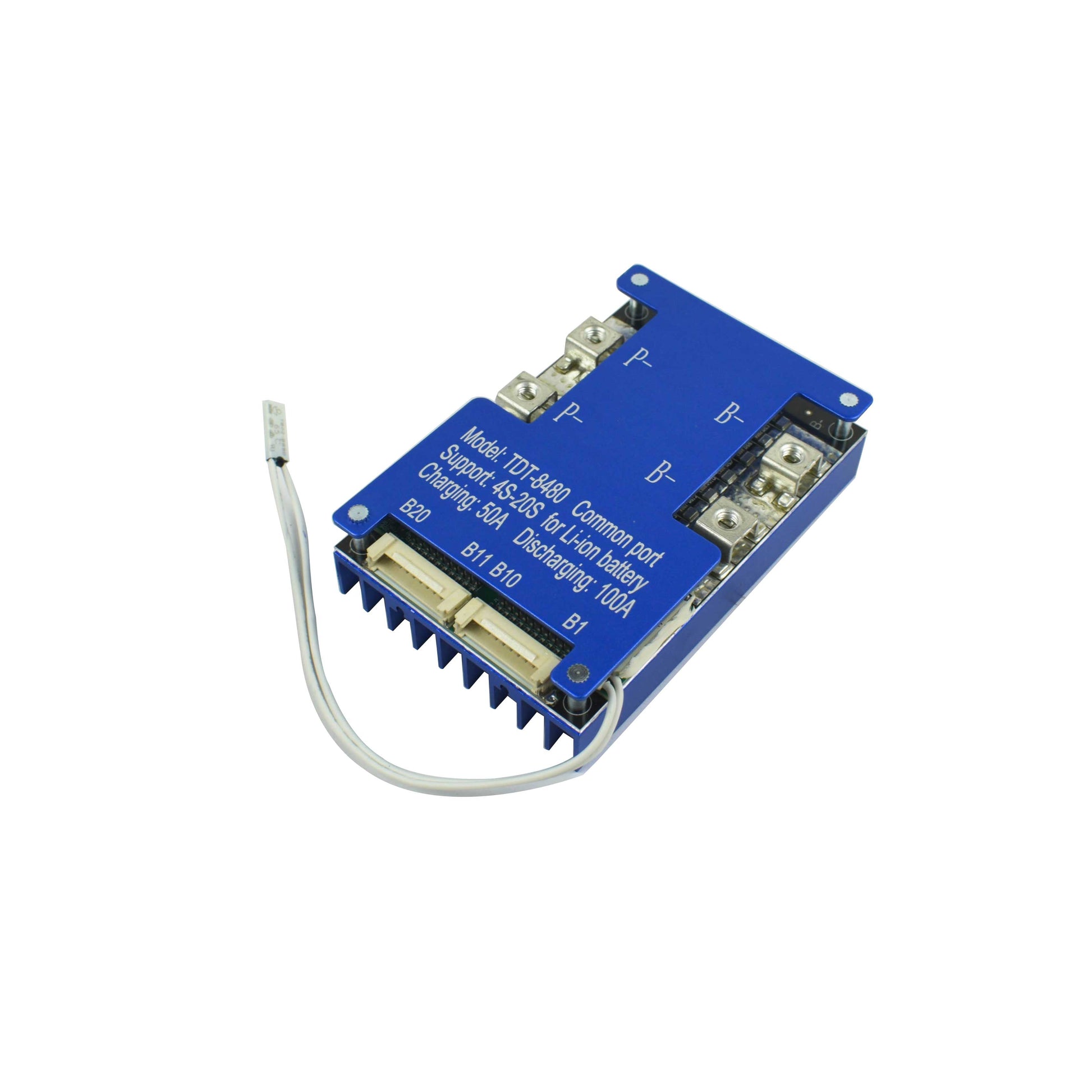

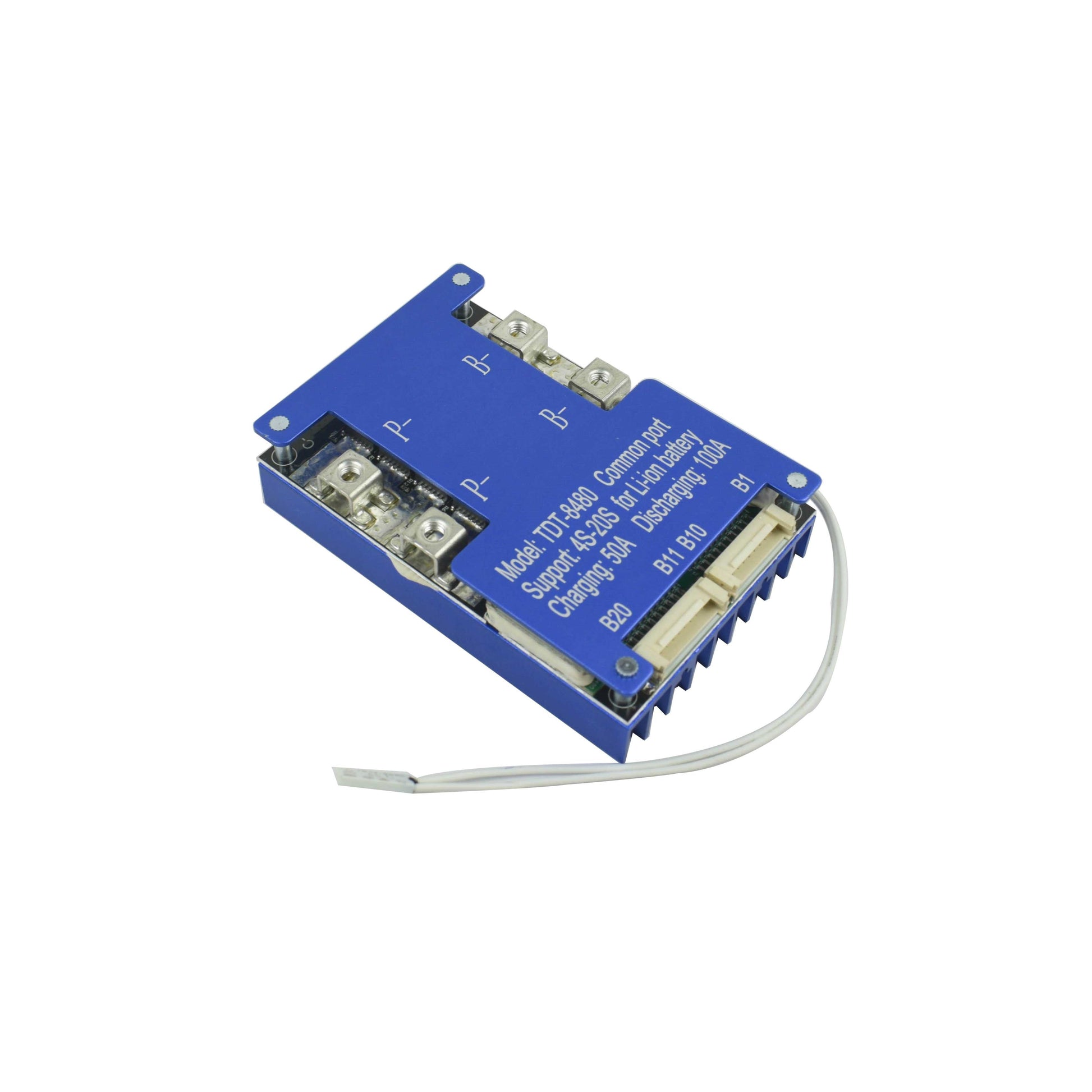

TDT-8480 4S-20S 100A is a BMS - a battery management system designed to monitor the status of batteries and control the charging and discharging processes. Li-ion batteries and LiFePO4 battery packs are both compatible with it. The primary functions include balance functionality and protection against overcharging, overdischarging, overcurrent, short circuit, and temperature.
To retain your battery for a longer cycle life, the protective board is constructed of high grade MOS (like Infineon MOS) and imported IC (Mitsumi).
In order to dissipate heat at a very high rate and allow the BMS to withstand large current, the high-quality heat sink is built of an aluminium alloy.

Features

  • Cell overvoltage and under-voltage protection.
  • Intelligent battery balancing .
  • Fully sealed waterproof technology along with  dustproof, shockproof, anti-squeezing, and other protective functions

Applications

  • Solar street lamp
  • Electric tools
  • Ups
  • EVs
  • Solar inverter
Specifications
Model TDT-8480 4S-20S 100A
Type Battery Management System
Continuous Discharge current 100 A
Charge voltage Series * 4.25 V
Charge Current 50 A
Over charge Detect Voltage 4.25 V
Over discharge detect voltage 2.5 V
Temperature protection 75℃
Working Temperature Range -20℃ to 45℃
Self Consumption Sleeping Current <80 uA
Dimensions  104.8 x 69.9 x 26.7 mm
Country of Origin China
