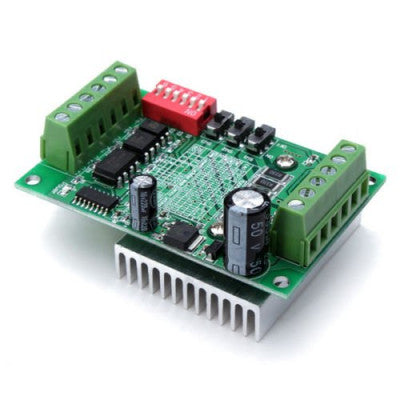

TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor
TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
The TB6560 Driver Board 3A CNC Router Single 1 Axis Controller for Stepper Motors offers precise control over one axis, employing high-speed optocoupler isolation for input signals and a generously sized heat sink to ensure effective heat dissipation. This stepper motor driver features adjustable semi-flow modes and semi-flow currents, providing a range of options for configuring semi-flow models and current settings. Operating this module is straightforward, requiring no special instructions. It distinguishes itself from common market designs through its unique combination of adjustable semi-flow modes and currents. This stepper motor driver utilizes the TB6560AHQ, a new original chip. The TB6560AHQ incorporates safety features like low voltage shutdown, overheat protection, and overcurrent safeguards to guarantee optimal performance. The TB6560 stepper motor control circuit represents a widely used current control system, capable of managing a 2-phase motor with a voltage range of 10 to 35VDC, delivering a maximum output of 3A. It finds practical applications in controlling stepper motors, CNC machines, and precision mechanical systems.
Features:
-
Adjustable current levels to cater to diverse application needs.
-
Automatic semi-flow adjustment capability.
-
Utilizes the 6N137 high-speed optical coupling for maintaining speed and preventing step loss.
-
Provides printed setup instructions on the board for user convenience.
-
Equipped with a robust, finely-toothed radiator for effective heat dissipation.
-
Designed for use with 3A, 2/4-phase, 4-wire, and 6-wire stepper motors of sizes 42, 57, and 86, not suitable for stepper motors exceeding 3A.
-
Supports various excitation modes: synchronous, half step, 1/8 step, 1/16 step, with a maximum of 16 segments.
| Specifications | |
|---|---|
| Model No. | TB6560 |
| Voltage | 10-35V |
| Type | Driver Board |
| Current | 3A |
