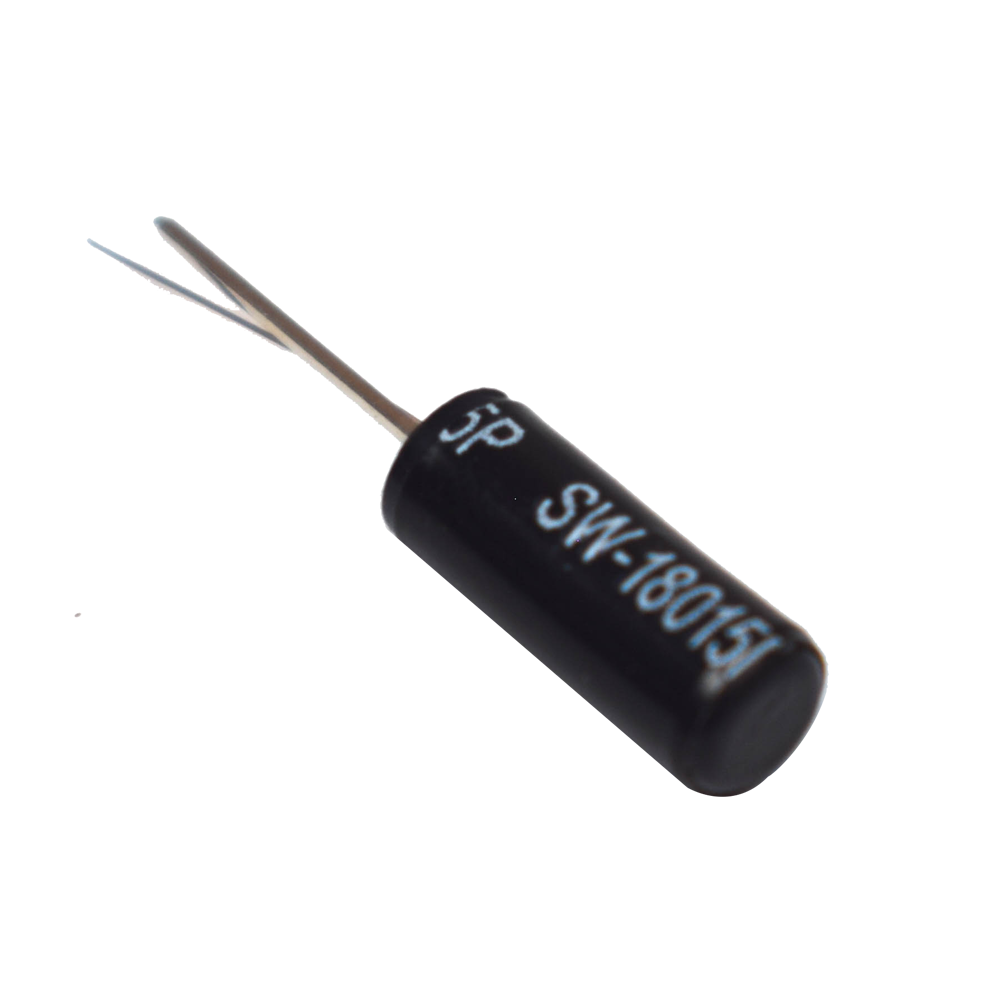

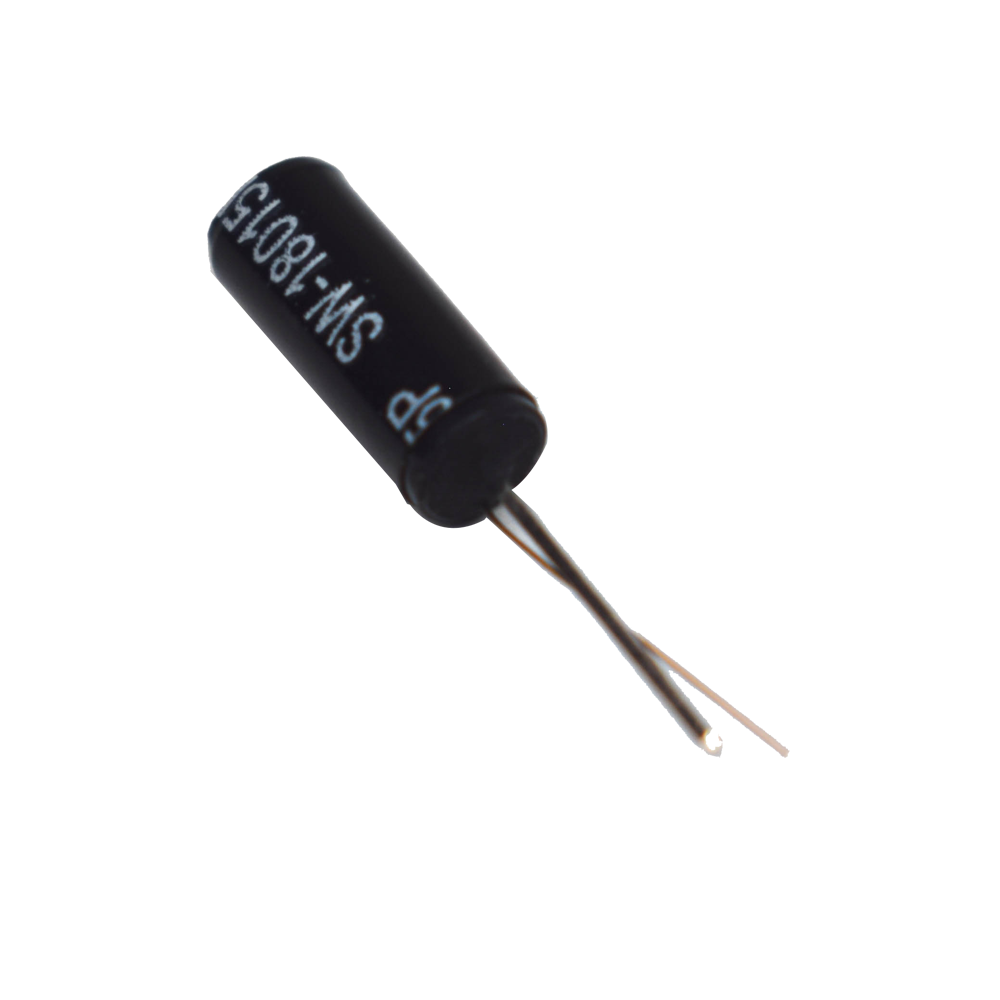

SW-18015P/20P Vibration Sensor Switch (Black)

SW-18015P/20P Vibration Sensor Switch (Black)

First Come First Serve Offer (T&C Apply )

7.84
0.00 7.84
Sale Sold out
Shipping calculated at checkout.

The SW-18015P is a Sealed High Sensitivity Vibration Sensor Switch. The 18015P series is a spring type with no directional vibration sensor trigger switch; it can trigger with vibration-detecting functionality from any angle. When the switch is in the open circuit OFF-state, external force to touch and corresponding vibration or movement speed achieve adequate (partial) centrifugal force, conductive pick feet will produce instant conductivity, and the switch will return to the open circuit OFF-state when the external force disappears.

Features:

  • Vibration Detecting
  • SW-18015P/20p series are spring type, no directional vibration sensor trigger switch, any angle can trigger

Applications

  • Security devices
  • Electronic scales

    Dimensions:

    • Diameter: 4.4mm
    • Height: 11.3mm (excluding leads)
    Specifications
    Product SW-18015P/20P
    Type  Vibration Sensor
    Max Voltage 12V
    Max Current 50mA
    Closed Resistance
    		 <10 ohm
    Open resistance >10M ohm
    Colour Black
    Diameter 4.4mm
    Height 11.3mm
    Operating temperature range -40 to 80 Degrees C
    Country of Origin China
