STM32F401RCT6 compatible with STM32F401CCU6 development board core board

STM32F401RCT6 compatible with STM32F401CCU6 development board core board

First Come First Serve Offer (T&C Apply )

2,635.38
299.00 2,635.38
Sale Sold out
Shipping calculated at checkout.

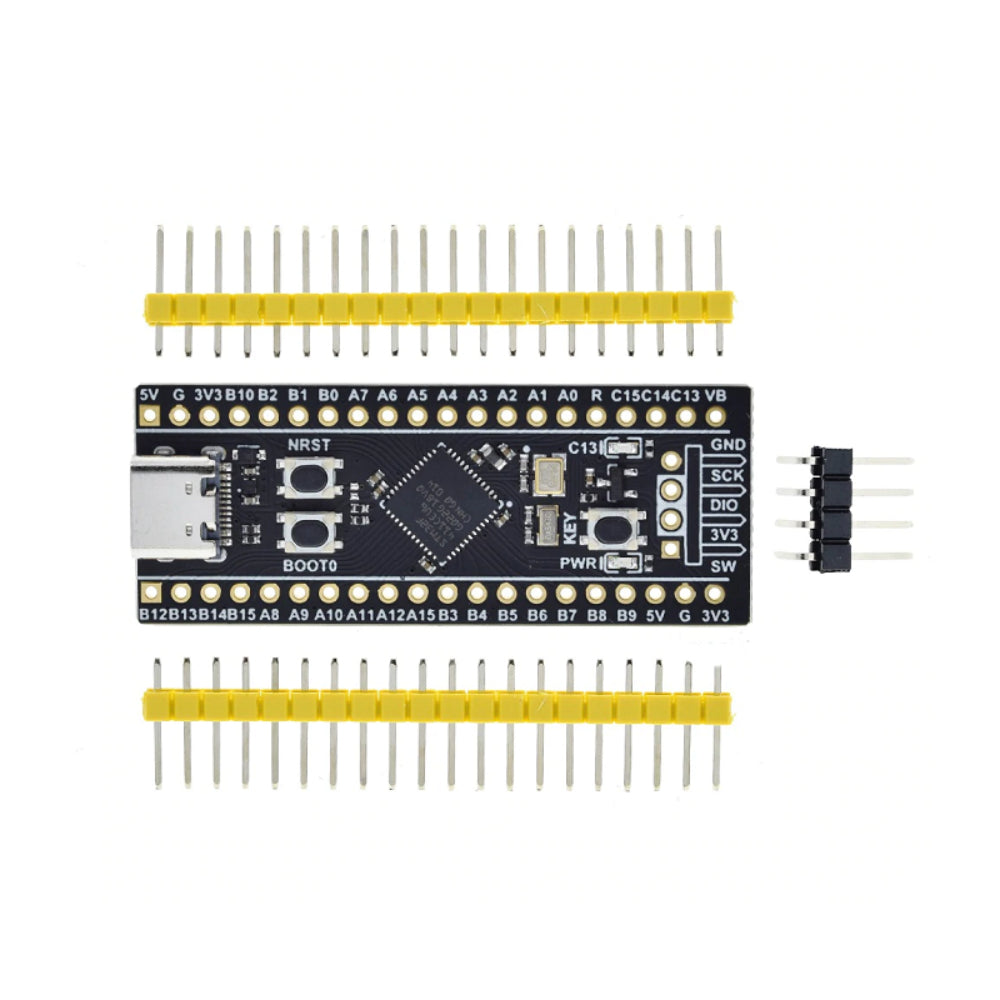

STM32F401RCT6 compatible with STM32F401CCU6 development board core board

The STM32F401RCT6 Core Development Board is a high-performance and feature-rich microcontroller board designed for embedded development and learning. It features a 25MHz high-speed crystal and a 32.768kHz 6pF low-speed crystal, ensuring precise clock timing and stable system performance. Manufactured using a lead-free process, the board is environmentally friendly and comes with two rows of pin headers and SWD download 4-pin bent pins, making it more convenient for developers to interface with external modules and perform debugging. The board includes two high-brightness LED indicators—a red power LED and a blue user test LED, which help in monitoring system status and debugging. Additionally, it features three buttons: a reset button, a BOOT0 key, and a user-defined button, providing flexible interaction options for programming and testing applications.

For connectivity, the board is equipped with a 16-pin USB Type-C interface, offering a durable and reliable connection for power and data transfer. It also comes with reserved Flash pads and supports USB Disk & FATFS routines, allowing for easy storage and file system operations. The factory preloads a breathing LED program, and it provides both source code and a HEX burn-in program, making it easier for beginners to learn and experiment with embedded programming.

Furthermore, the board supports MicroPython programming and comes with available MicroPython firmware, enabling developers to quickly deploy and test Python-based applications. It is compatible with the STM32F401CCU6 core development board, making it a versatile and adaptable choice for various embedded projects, IoT applications, and hardware prototyping.

Specifications

  • Model: STM32F401RCT6
  • Core: ARM Cortex-M4 with FPU
  • Clock Speed: Up to 84MHz
  • Flash Memory: 256KB
  • SRAM: 64KB
  • GPIOs: Up to 51 I/O pins
  • ADC: 12-bit, up to 16 channels
  • Timers: 10 (Advanced, General-purpose, Basic)
  • UART/USART: 3 (up to 10.5 Mbps)
  • I2C: 3 (Fast Mode Plus 1MHz)
  • SPI: 3 (up to 42 Mbps)
  • CAN: 1 (2.0A/B support)
  • USB: 2.0 Full Speed (OTG Support)
  • Operating Voltage: 2.0V – 3.6V
  • Operating Temperature: -40°C to +85°C
  • USB Connector: Type-C
  • Product Size: 53x21x8mm
  • Weight (g): 7

Features

  • 25MHz high-speed crystal and 32.768kHz 6pF low-speed crystal
  • Flash pads reserved, with USBDisk & FATFS routines provided
  • Jumper cap not required; BOOT0 has an internal 10K pull-down resistor
  • Factory preloaded with breathing lamp & USBCDC test program
  • V1.3 board includes 3 buttons: Reset, BOOT0, and User button
  • 25mm width module without WeAct 3.0 Version

Drawing

drawing

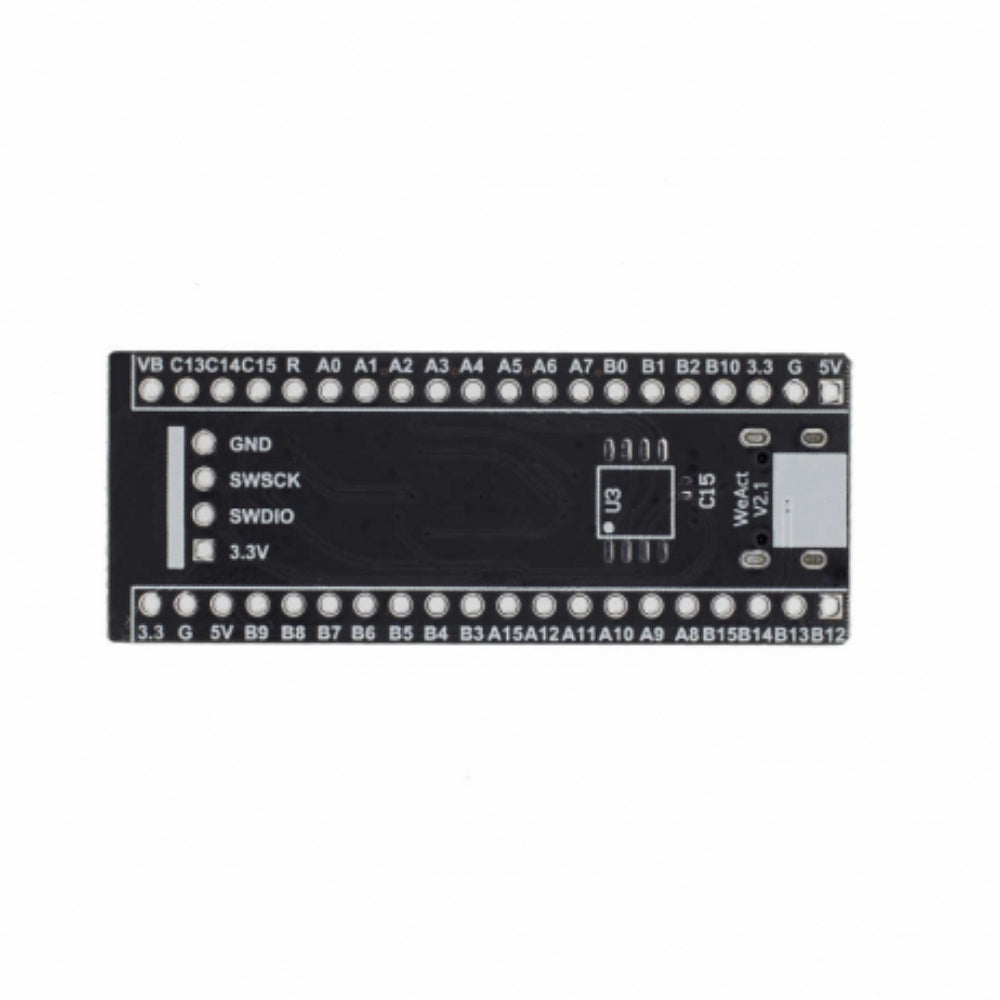

Pin Out

pin out

Applications

  • IoT Development
  • Robotics & Automation
  • Smart Home Projects
  • Embedded System Prototyping
  • Motor Control & Industrial Automation
  • Medical & Handheld Devices

Physical Attribute

  • Product Size: 53x21x8mm
  • Weight (g): 7

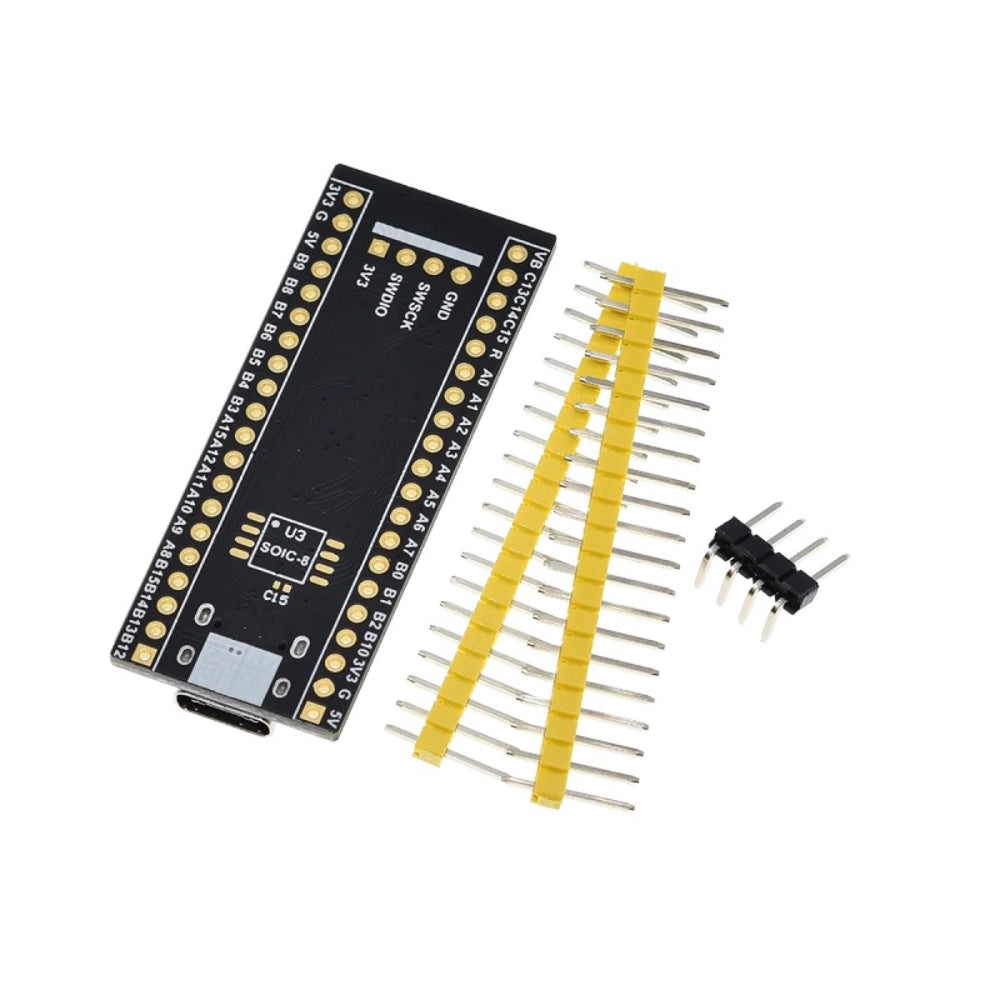

Package Includes

  • 1 x STM32F401RCT6 compatible with STM32F401CCU6 development board core board
  • 2 x 20 Pin Male Header
  • 1 x 4 Pin Male Header right angle
