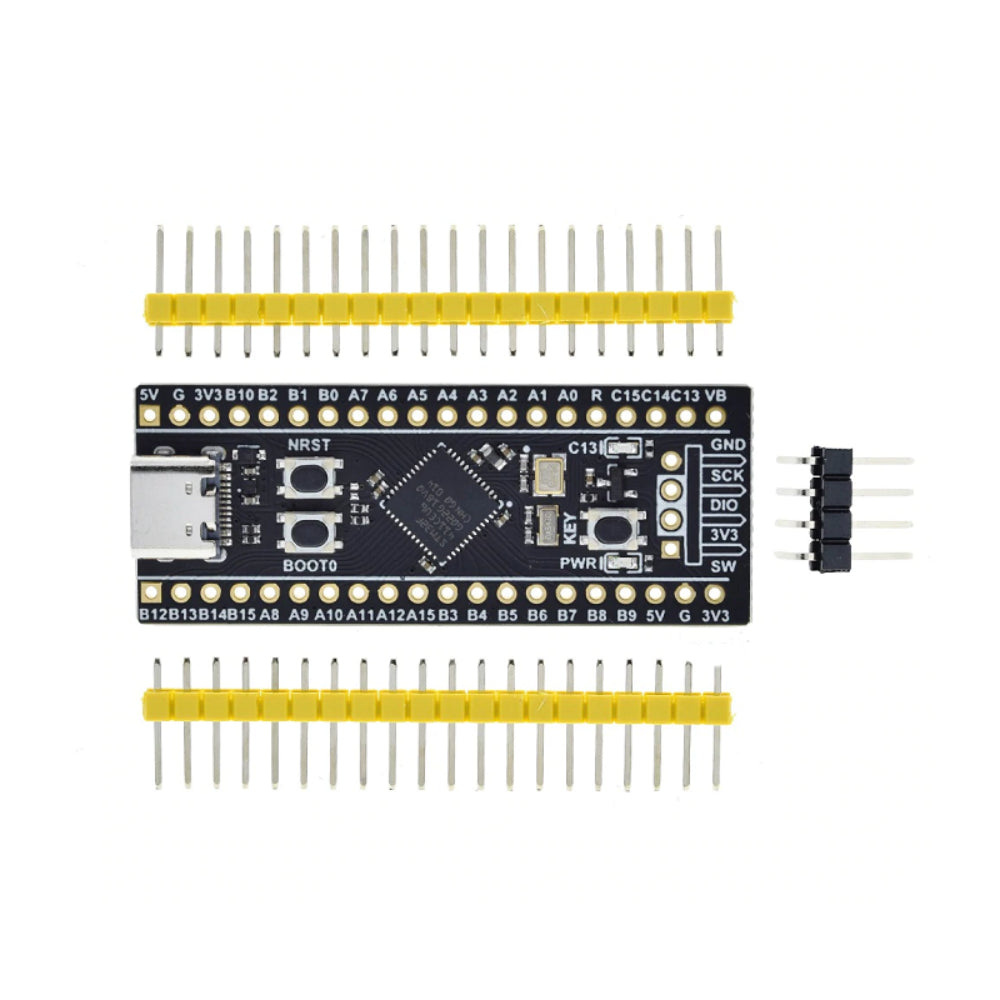

STM32F401CCU6 Minimum System Board Microcomputer STM32 ARM Core Board
This is STM32F401CCU6 Minimum System STM32 ARM Core Board. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F401CCU6. Board is suitable for learners that want to learn the STM32 microcontroller with ARM Cortex-M4 32-bit core.Specifications
- Model: STM32F401CCU6
- Memories: Up to 256 Kbytes of Flash memory, 512 bytes of OTP memory, Up to 64 Kbytes of SRAM
- 1× 12-bit, 2.4 MSPS A/D converter: Up to 16 channels
- General-purpose DMA: 16-stream DMA controllers with FIFOs and burst support
- 256 Kbytes of Flash memory
- 84 MHz CPU with ART Accelerator
- Item Type: Other Board
- Based On: STM32
- USB Connector: Type-C
- Product Size: 53x21x8mm
- Weight (g): 7
Features
- 25MHz high-speed crystal and 32.768kHz 6pF low-speed crystal
- Flash pads reserved, with USBDisk & FATFS routines provided
- Jumper cap not required; BOOT0 has an internal 10K pull-down resistor
- Factory preloaded with breathing lamp & USBCDC test program
- V1.3 board includes 3 buttons: Reset, BOOT0, and User button
- 25mm width module without WeAct 3.0 Version
Drawing

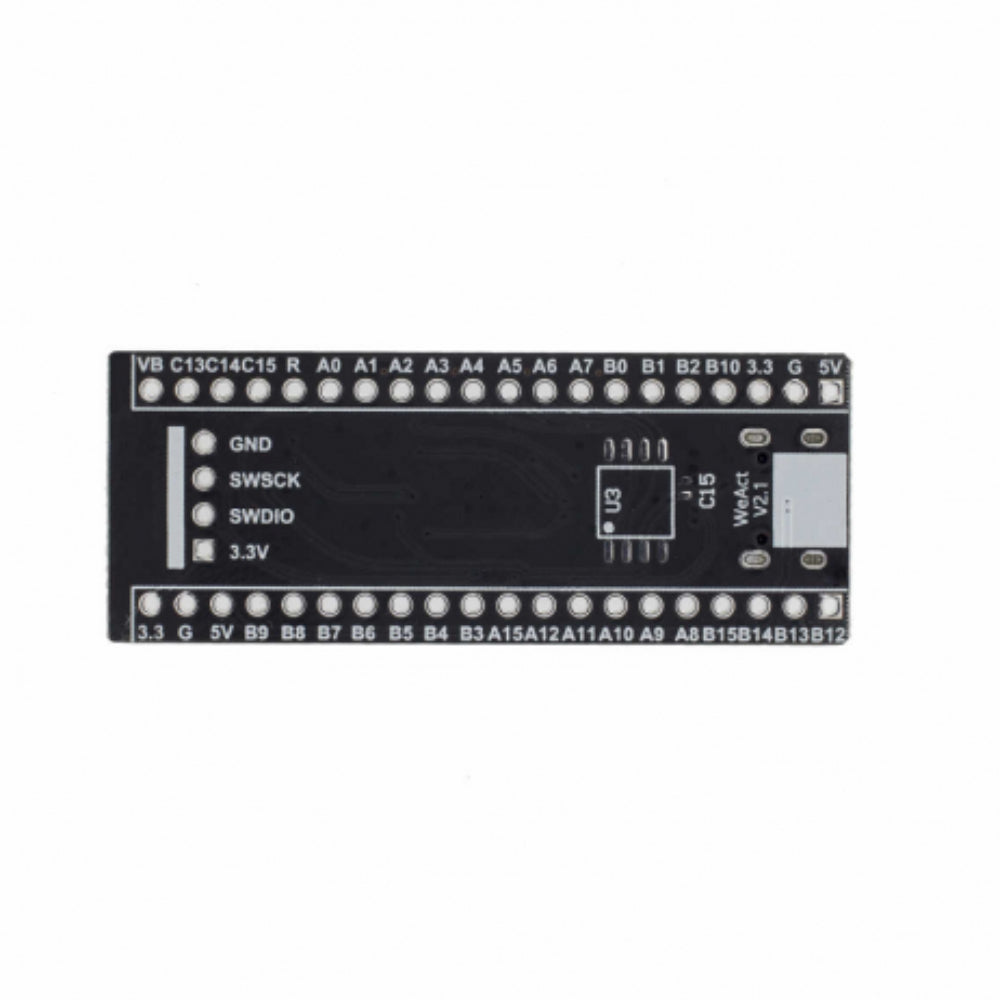

Pin Out
Applications
- IoT Development
- Robotics & Automation
- Smart Home Projects
- Embedded System Prototyping
- Motor Control & Industrial Automation
- Medical & Handheld Devices
Physical Attribute
- Product Size: 53x21x8mm
- Weight (g): 7

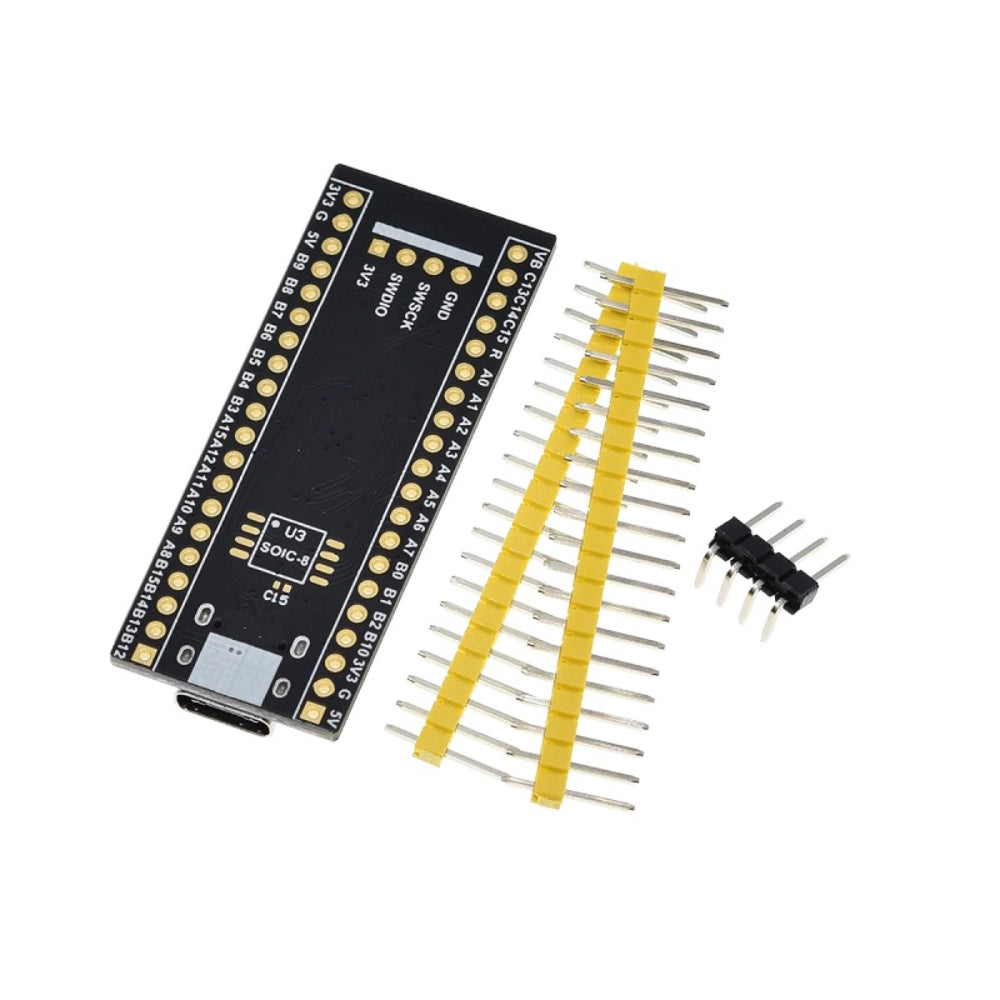

Package Includes
- 1 x STM32F401CCU6 Minimum System Board Microcomputer STM32 ARM Core Board
- 2 x 20 Pin Male Header
- 1 x 4 Pin Male Header right angle
