STM32F103C6T6 ARM Microcontroller Minimum System Development Board Type C

STM32F103C6T6 ARM Microcontroller Minimum System Development Board Type C

First Come First Serve Offer (T&C Apply )

179.00
239.00 179.00
Sale Sold out
Shipping calculated at checkout.

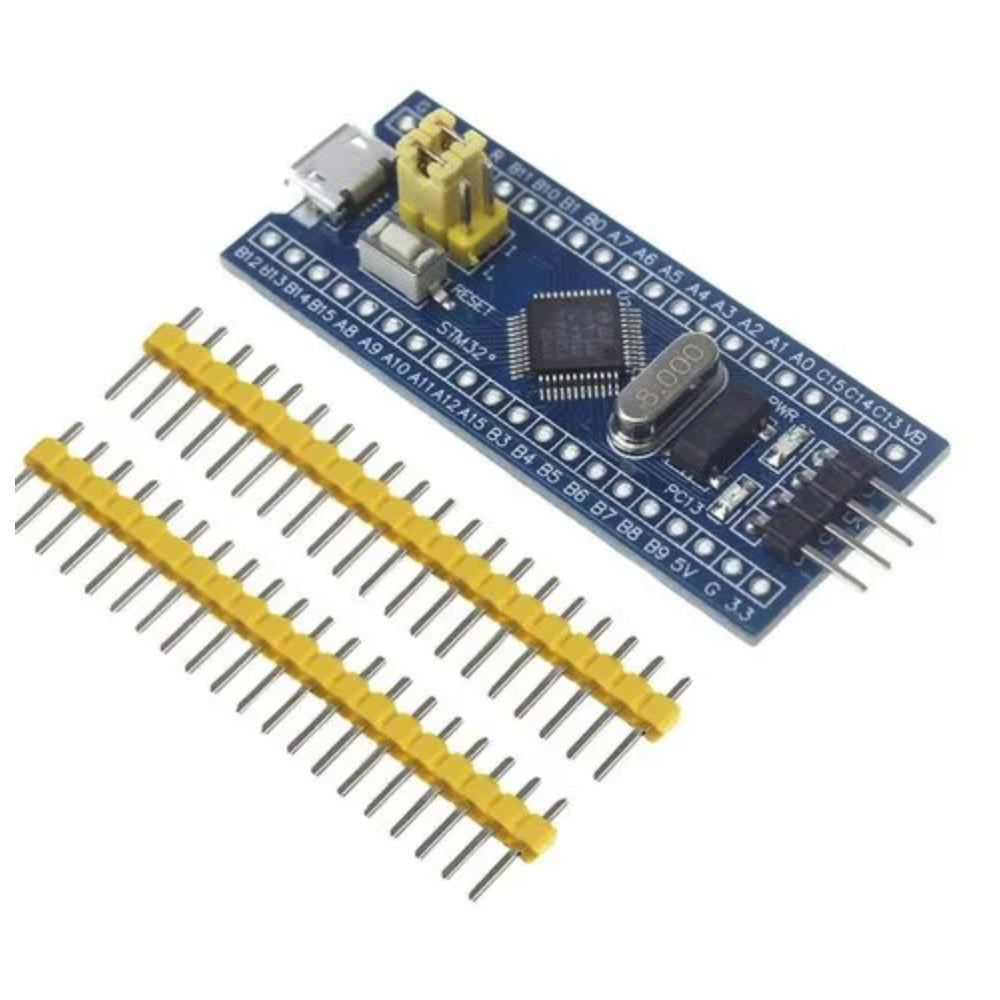

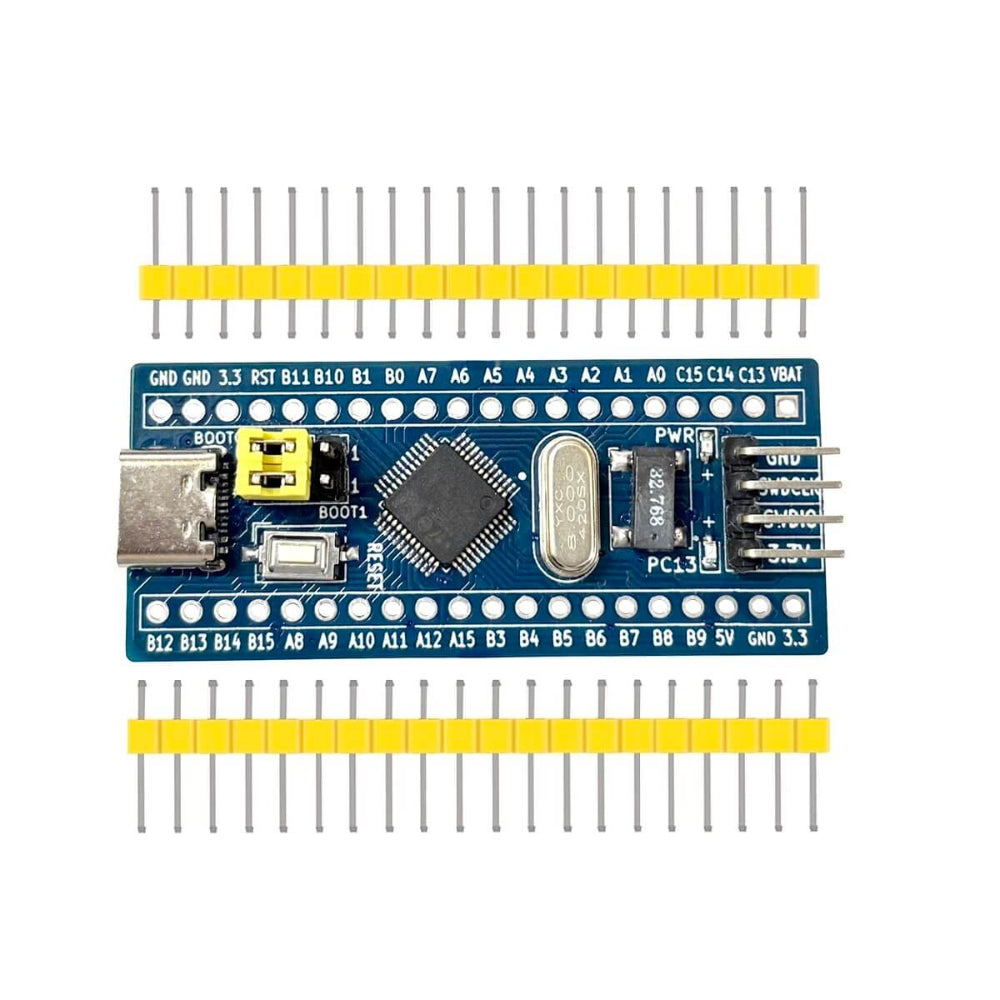

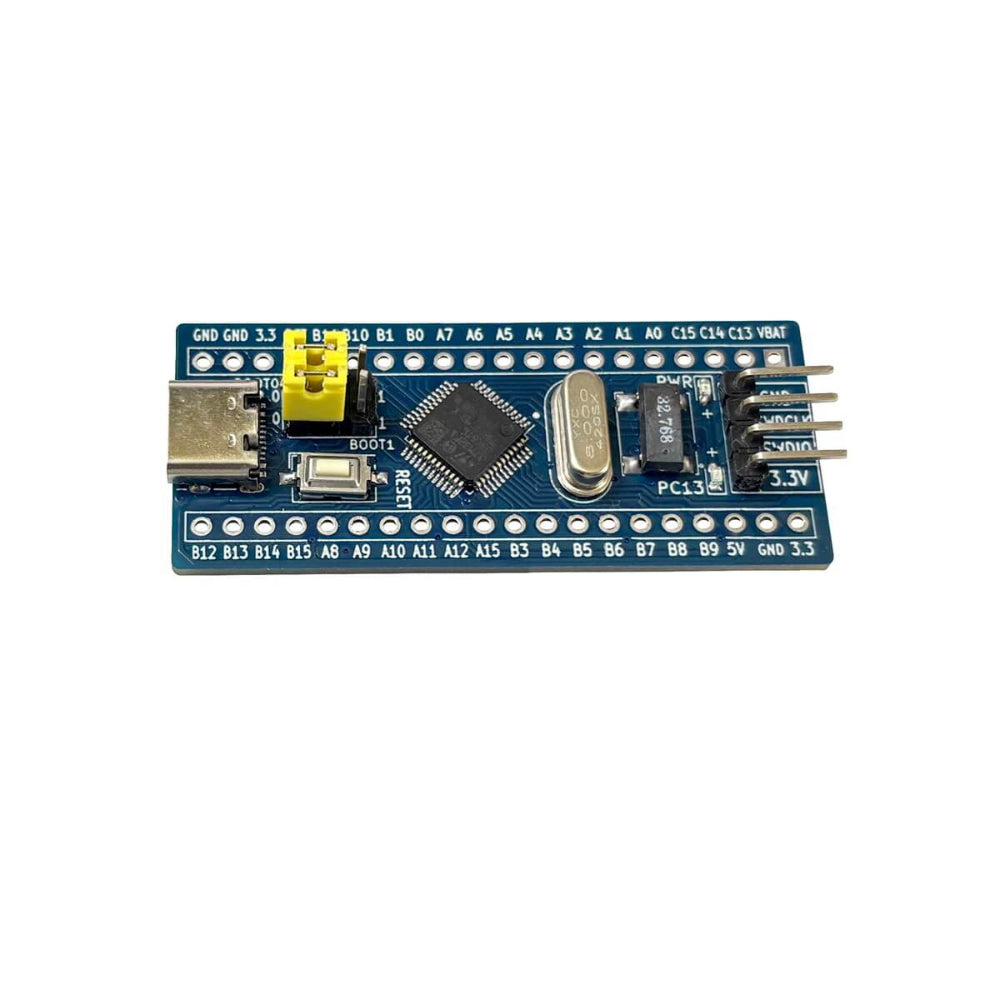

STM32F103C6T6 ARM Microcontroller Minimum System Development Board Type C

The STM32F103C6T6 Minimum System Board Microcomputer is a low-cost yet highly efficient development board designed for embedded systems and microcontroller-based applications. Powered by the CS32F103C6T6 ARM Cortex-M3 core, this board serves as a compact and powerful solution for developers working with STM32 microcontrollers. It features a basic MCU circuit, including an 8MHz crystal oscillator and a 32.768kHz RTC crystal (Epson brand) for stable and accurate clock timing.

This STM32 ARM Core Board provides a USB power supply circuit with a Micro USB interface, which supports both USB communication and power delivery, making it compatible with standard Android mobile phone chargers. The board is designed with two rows of I/O pins, allowing easy access to all GPIOs, enabling flexible hardware expansion for various embedded applications. Additionally, it includes an SWD (Serial Wire Debug) interface for efficient debugging and firmware downloads, offering a fast and convenient development experience.

One of its key advantages is its double-pin design, where the pins are not pre-soldered, giving users the flexibility to choose the orientation based on their project requirements. Whether for prototyping, learning, or professional development, the STM32F103C6T6 Minimum System Board provides a reliable and adaptable platform for working with Advanced RISC Machine (ARM) architecture in microcontroller-based projects.

Specifications

  • Model: STM32F103C6T6
  • Core: ARM 32-bit Cortex-M3 CPU
  • Debug Mode: SWD
  • Operating Frequency: 72MHz
  • Memory: 32KB Flash, 20KB SRAM
  • Power Supply: 2.0V - 3.6V
  • I/O: 2.0V - 3.6V Tolerant
  • Reset: Power-On Reset (POR) / Power-Down Reset (PDR)
  • Crystal Oscillator: 4-16MHz
  • Product Size: 53.34x22.5x11.5mm
  • Weight (g): 7

Chip Description

  • Microcontroller: STM32F103C6T6 (Domestic chips)
  • Part No: STM32F103C6T6
  • Package Type: LQFP
  • Number of Pins: 48
  • Core: Cortex-M3
  • Operating Frequency: 72MHz
  • Storage: 32KB Flash, 20KB SRAM
  • Interfaces: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I/O
  • Analog-to-Digital: 2x ADC (12-bit / 16-channel)
  • Timers: 3 General, 1 Advanced
  • Debug: Supports JTAG/SWD, IAP
  • RT9193: 3.3V Regulator, Max 300mA Output

Interface description

  • SWD Interface: Supports simulation, download, and debugging.
  • Type-C USB Interface: Provides power supply and USB communication
  • USART1 Interface: Can be used for program download or general communication.
  • MCU Pin Interface: All I/O port pins are accessible for easy peripheral connection.
  • 5V and 3.3V Power Input/Output Interface: Supports external power supply and common ground with other modules.

Features

  • Powerful MCU – ARM Cortex-M3 core running at 72MHz
  • Reliable Storage – 32KB Flash & 20KB SRAM
  • Versatile Connectivity – Supports USART, I2C, SPI, CAN
  • High-Precision ADC – Dual 12-bit ADC with 16 channels
  • USB & Debug Support – Type-C USB for communication, SWD for debugging
  • Flexible Power Options – Operates between 2.0V - 3.6V
  • Stable Operation – Power-On Reset (POR) & Power-Down Reset (PDR)
  • Compact & Efficient – Ideal for IoT, automation, robotics, and prototyping

Drawing

drawing

Pin Out

pin out

Applications

  • IoT Development
  • Robotics & Automation
  • Smart Home Projects
  • Embedded System Prototyping
  • Motor Control & Industrial Automation
  • Medical & Handheld Devices

Physical Attribute

  • Product Size: 53.34x22.5x11.5mm
  • Weight (g): 7

Package Includes

  • 1 x STM32F103C6T6 ARM Microcontroller Minimum System Development Board Type C
  • 2 x 20 Pin Male Header
