Stead 500 Ohm 250W Wire Wound Potentiometer Resistor
Stead 500 Ohm 250W Wire Wound Potentiometer Resistor
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability

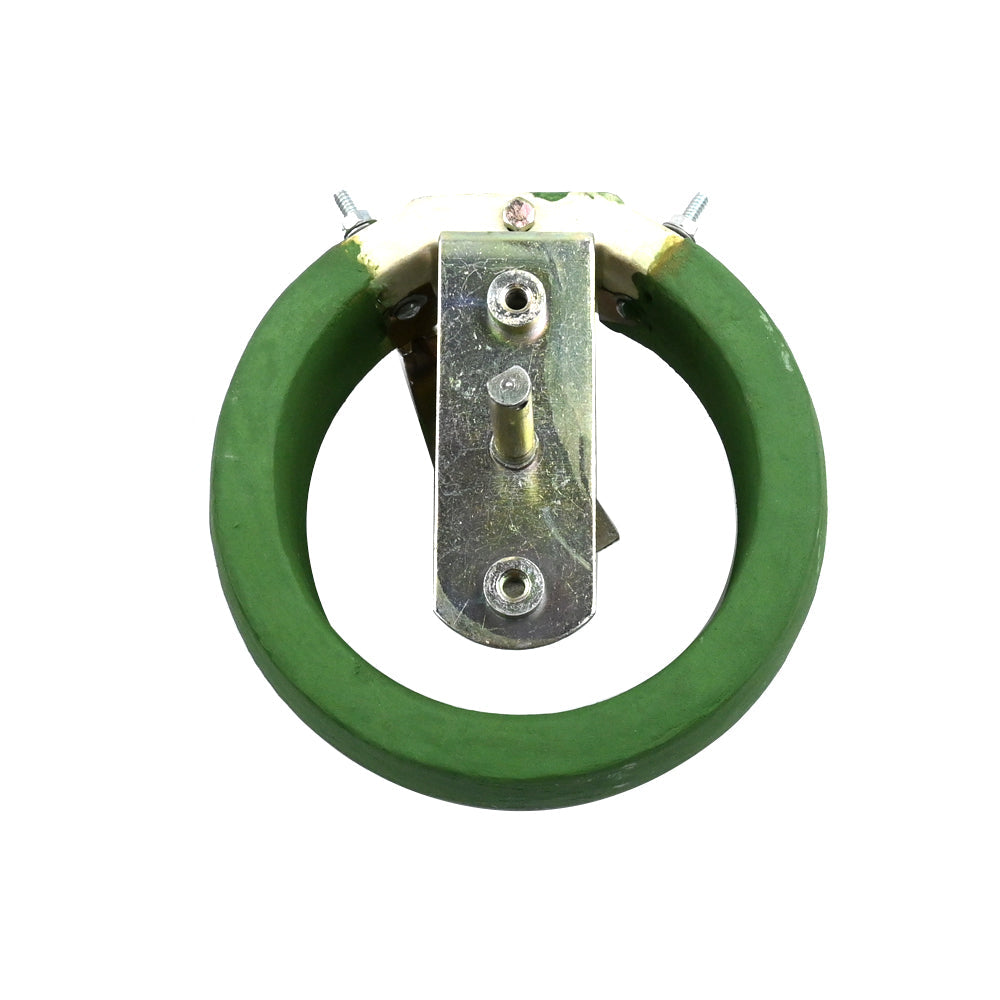

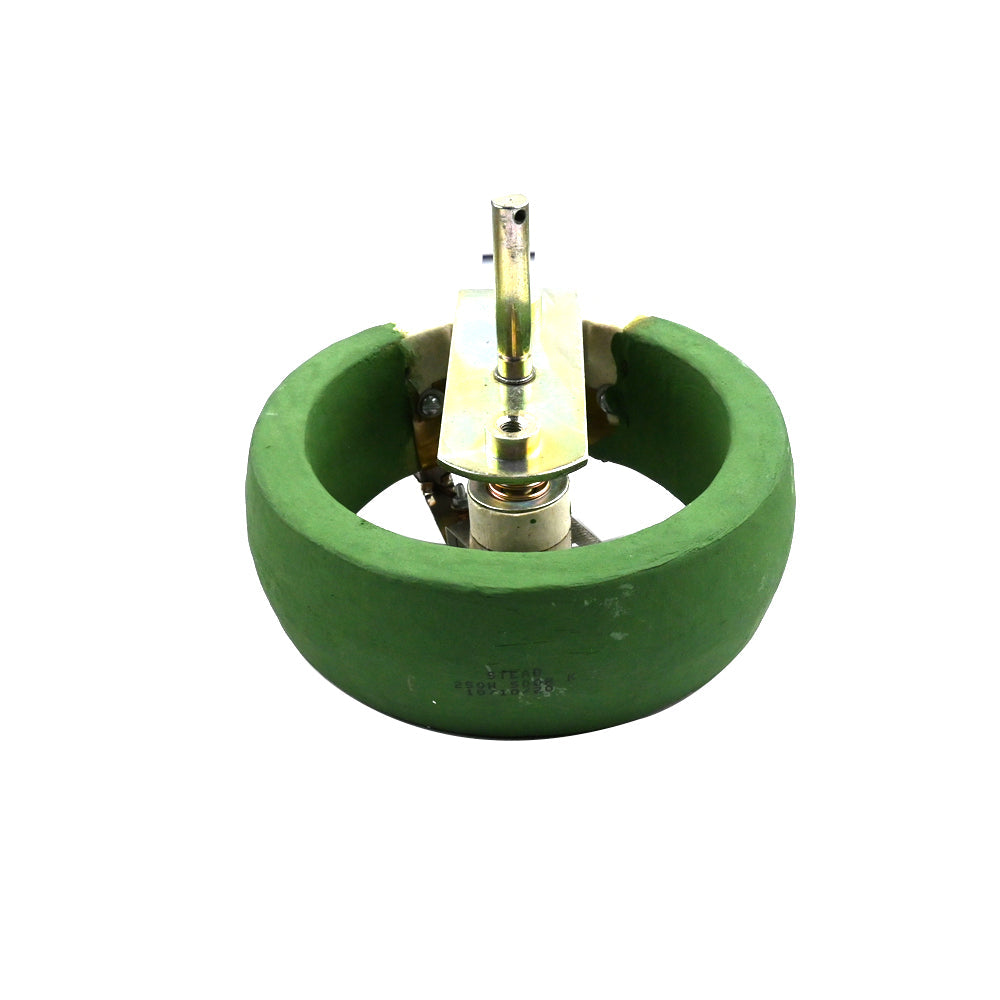

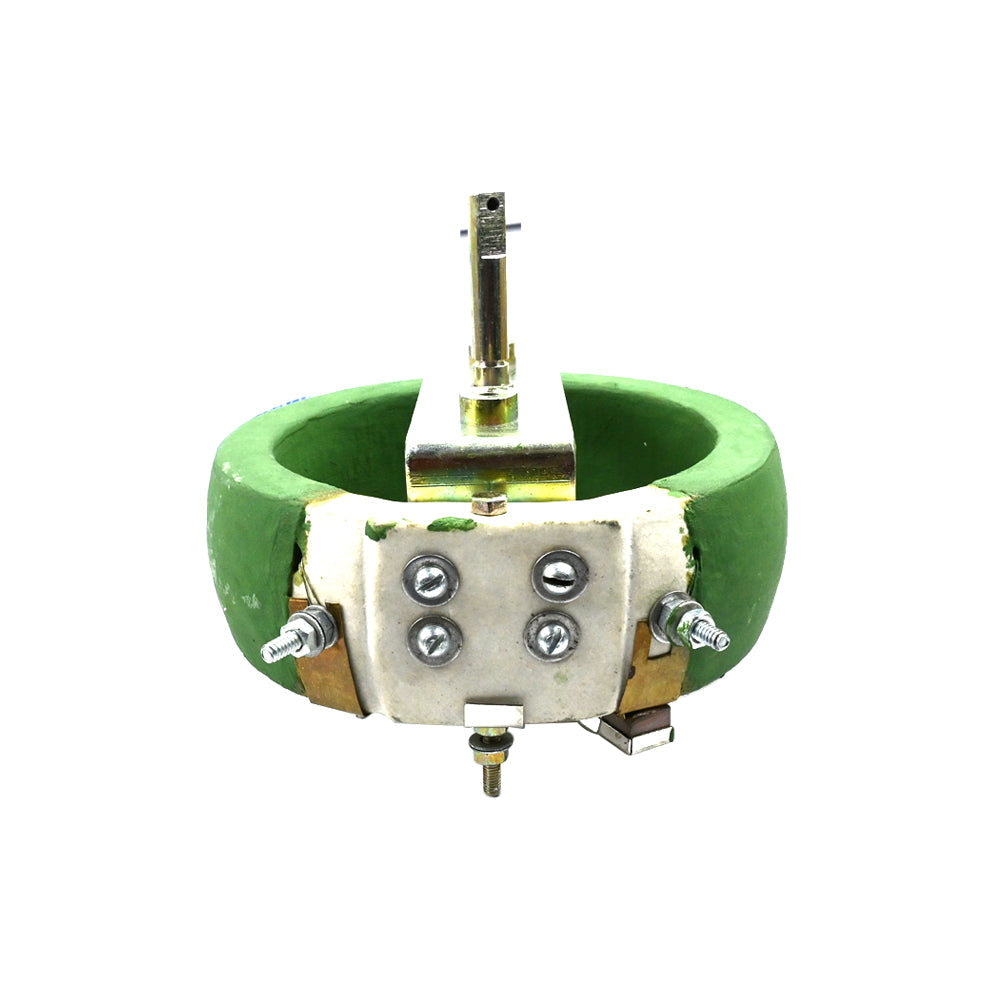

It is a 250W 500 Ohm wire wound variable potentiometer resistor. Its resistive part is rotary. The wiper in this type is mounted on a shaft and the movement of this shaft will change the length and resistance. Basically it is a variable or adjustable rotary potentiometer . It works as when rotate the wiper then resistance will be vary. A Wire Wound Potentiometer Resistor is a variable or adjustable resistor that can control the electrical resistance of a circuit without interrupting the current flow. It is a hollow circular having three connections screw terminal. The ceramic and the wire wound assembly over it are covered by silicone. A resistive wire is wrapped to form a toroid coil with a wiper that slides along the coil's surface. There are three screw terminal when we rotate the wiper in clock-wise direction resistance increases and rotate in anti-clockwise direction resistance decrease . It is constructed with a ceramic core. High voltage and current are frequently required in applications.
Features:
- Its resistive part is rotary.
- It is high power Potentiometer Resistor.
- It is a hollow circular having three connections screw terminal.
- The ceramic and the wire wound assembly over it are covered by silicone.
- A variable or adjustable wiper is mount.
- It work as non- linearly.
- High voltage and current are frequently required in applications.
- Widely used in those areas where circuits are often required to work at high temperatures.
Specifications:
| Model | 250W 500R |
| Material Type | Silicone coated |
| Type | Wire Wound Potentiometer Resistor |
| Tolerance | 10% |
| Power | 250W |
| Resistance | 500 Ohm |
| Dimensions | 122.6*151.9mm |
| No. of Screw terminal | 3 |
| Wiper diameter | 9.7mm |
| Screw diameter | 8.8mm |
| Country of Origin | China |
