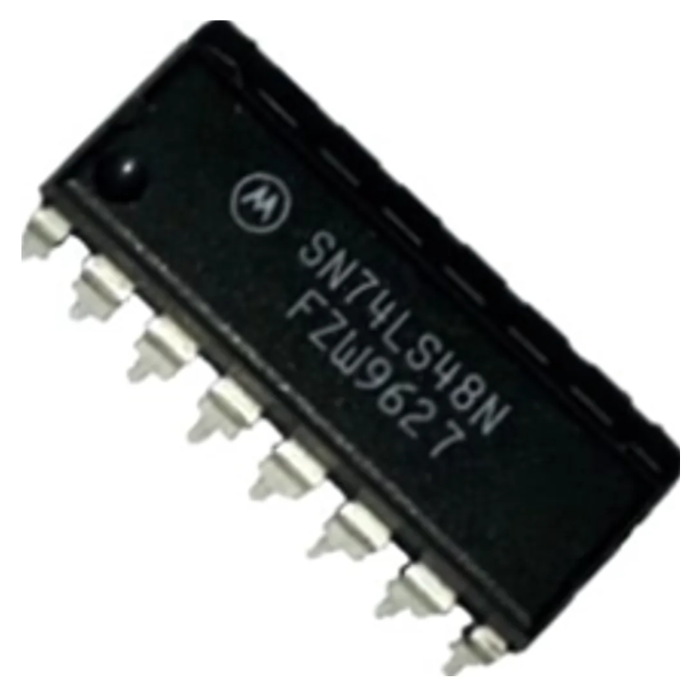

Motorola SN74LS48N IC BCD TO 7-Segment Decoder

Motorola SN74LS48N IC BCD TO 7-Segment Decoder

First Come First Serve Offer (T&C Apply )

Regular price 25.00
Regular price 39.00 Sale price 25.00
Sale Sold out
Shipping calculated at checkout.

Motorola SN74LS48N IC BCD TO 7-Segment Decoder

If you want the best solution for driving 7-segment displays then check out the Motorola SN74LS48N IC BCD to 7-Segment Decoder. This small chip converts 4-bit binary numbers into numbers that can be read on a 7-segment display. It works great and has features like automatic zero-blanking to keep the screen clear.

Because of the built-in resistors, you can also modify the brightness of the lights without the need for additional parts. It's an excellent solution for any project requiring easy-to-read displays.

Package Includes

1 x Motorola SN74LS48N IC BCD TO 7-Segment Decoder

Specifications

Specification Details
Part Number SN74LS48N
Type BCD to 7-Segment Decoder
Input Format 4-bit Binary-Coded Decimal (BCD)
Output Type 7-Segment Display
Logic Family TTL (Transistor-Transistor Logic)
Operating Voltage Range 4.75V to 5.25V
Input Current 1.6 mA (max)
Output Current 25 mA (max)
Maximum Clock Frequency 20 MHz
Features Automatic Zero-Blanking, Lamp Intensity Control
Package Type DIP (Dual In-line Package)
Temperature Range 0°C to 70°C (Commercial)
