SN04-N NPN DC 10-30V, 5mm Distance Detector Proximity Sensor Switch Module (Normally Open)

SN04-N NPN DC 10-30V, 5mm Distance Detector Proximity Sensor Switch Module (Normally Open)

First Come First Serve Offer (T&C Apply )

120.00
179.00 120.00
Sale Sold out
Shipping calculated at checkout.

SN04-N NPN DC 10-30V, 5mm Distance Detector Proximity Sensor Switch Module (Normally Open)

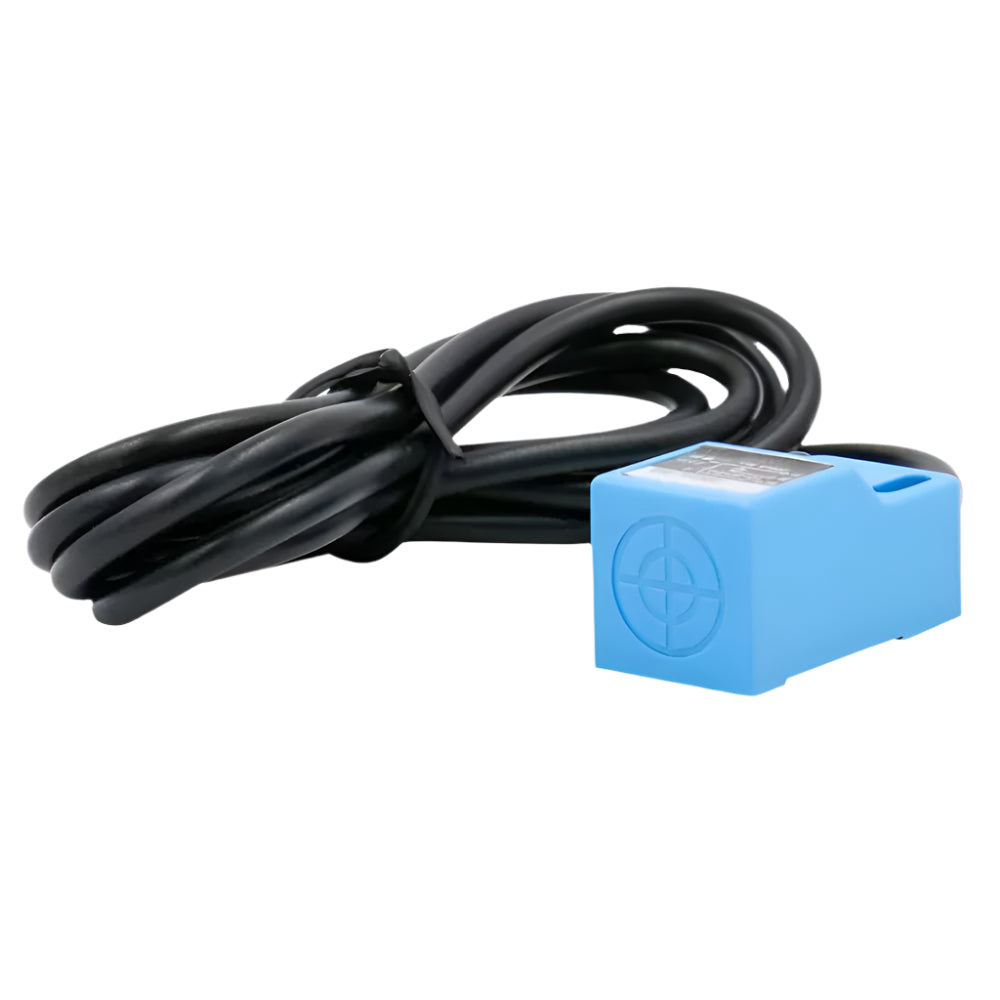

This module is an SN04-N NPN NO 5mm Distance Detector Proximity Sensor Switch. It detects metallic objects within 4mm of its surface.

The detection distance may vary slightly depending on the object’s shape, size, and material. The module can sense through thin, non-metallic materials. It has an LED indicator that turns on when the module is powered and brightens when it senses an object.

Technical Details

  • Model : SN04-N NPN-NO
  • Type: Inductive
  • Detection distance: 5 mm
  • Output Type : NO(Normally Open)
  • Operating Voltage (VDC): 10 ~ 30
  • Current Consumption (mA): 5
  • Operating Indicator: Red LED
  • Cable length:150mm

Features

  • Red LED checks the state of the proximity sensor
  • High repeated positioning accuracy
  • High switching frequency
  • Wide voltage range
  • Antivibration, dust, water, and oil prevention
  • Reverse power protection, short circuit protection, directly connecting with PLC
  • It can replace small switches and limit switches.

Applications :

  • Industrial Automation – Detects metal objects in conveyor systems and production lines.
  • Robotics – Enables precise positioning and obstacle detection in robotic arms.
  • CNC Machines & Metalworking – Ensures accurate machining by detecting tool positions.
  • Security Systems – Used in access control and alarm systems for metal detection.

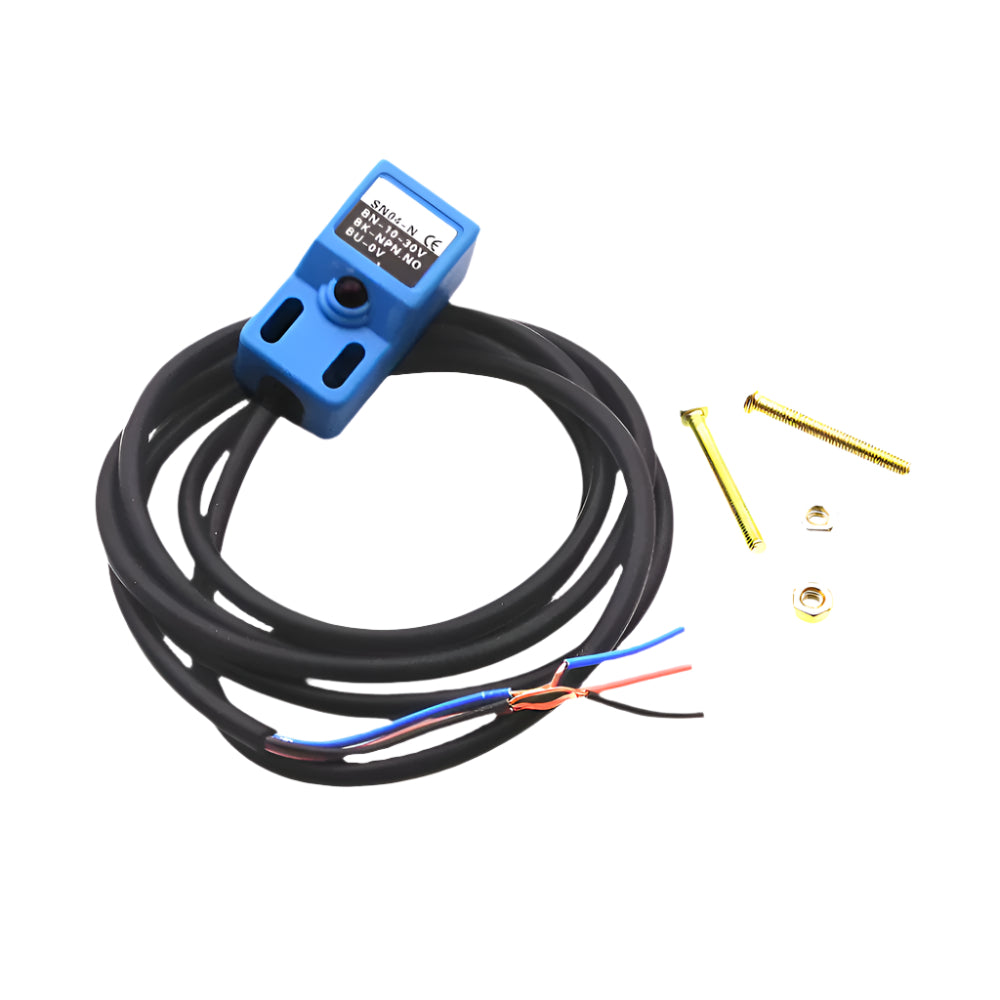

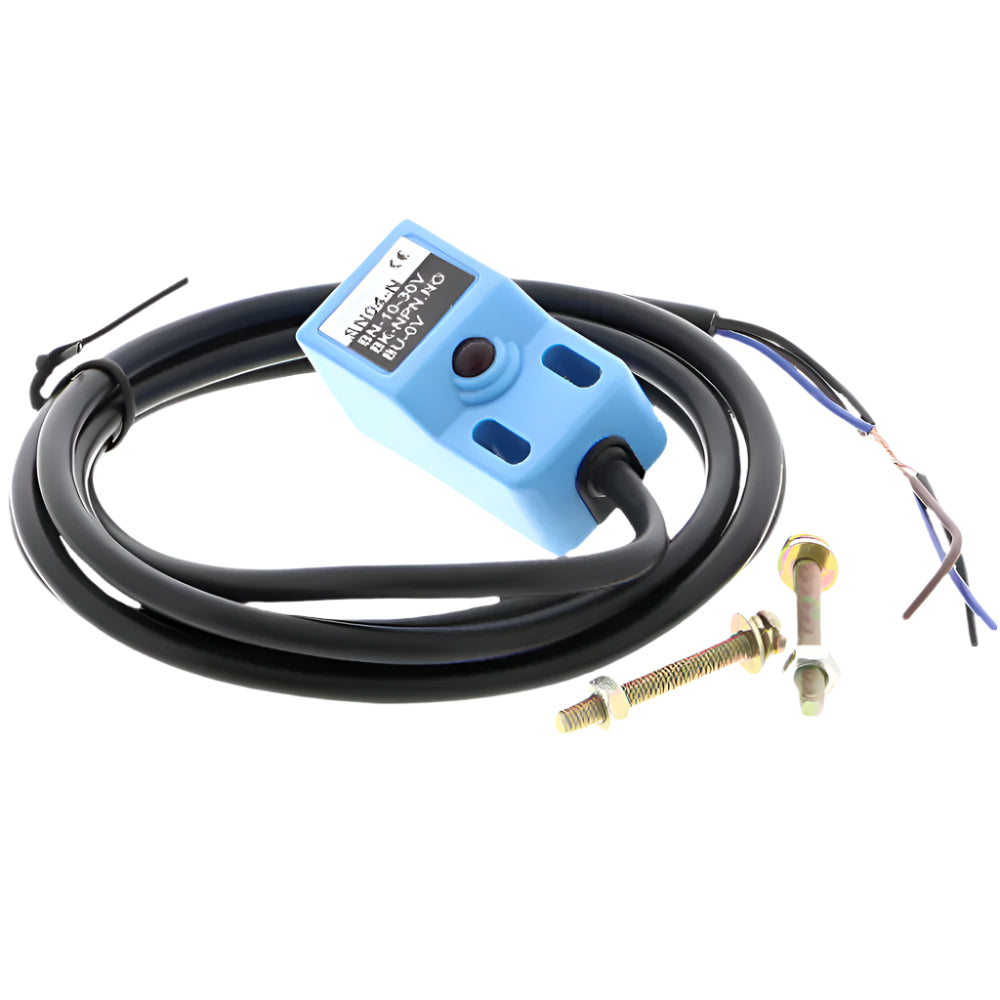

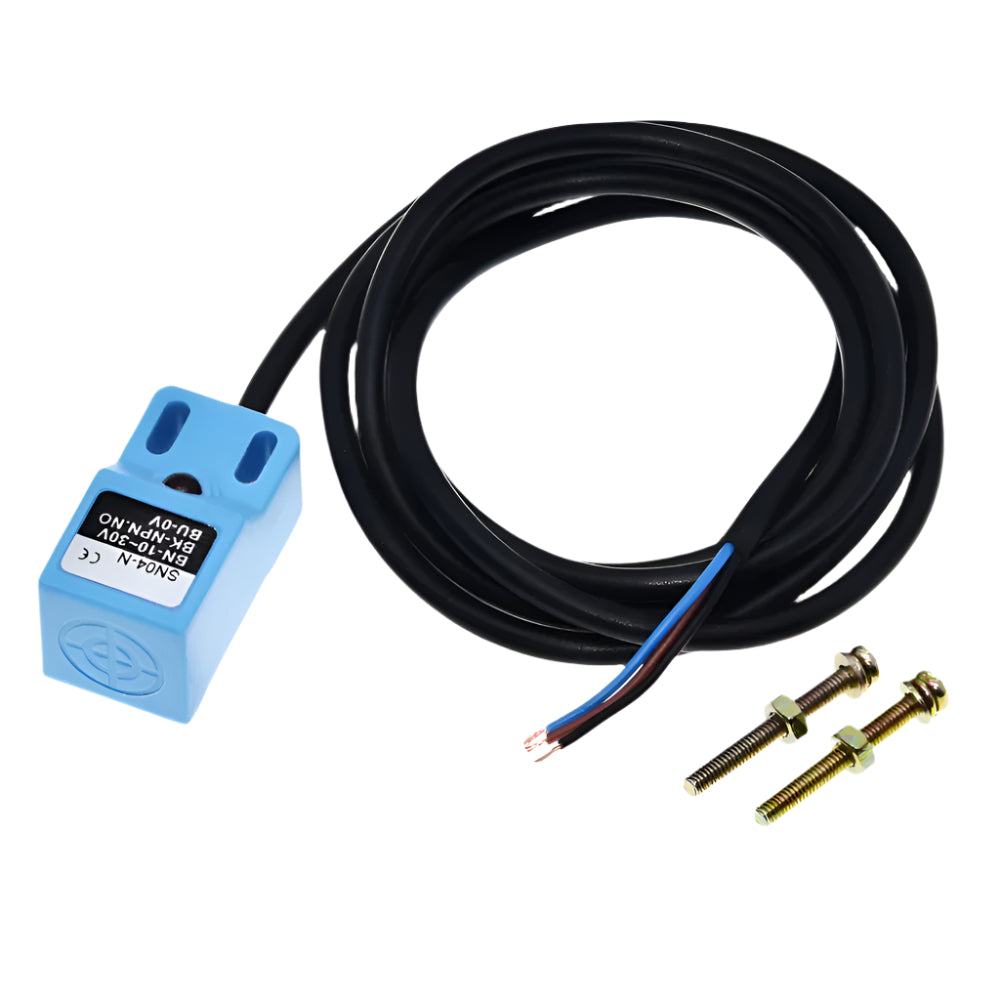

Wire Connections:

  • Brown wire: 10 ~ 30 VDC (+Ve).
  • Blue wire: 0 V (GND)
  • Black wire: signal

Physical Attributes

  • Cable Length: 150 cm.
  • Weight(gm):41

Package Includes

  • 1 x SN04-N NPN DC 10-30V, 5mm Distance Detector Proximity Sensor Switch Module (Normally Open)
