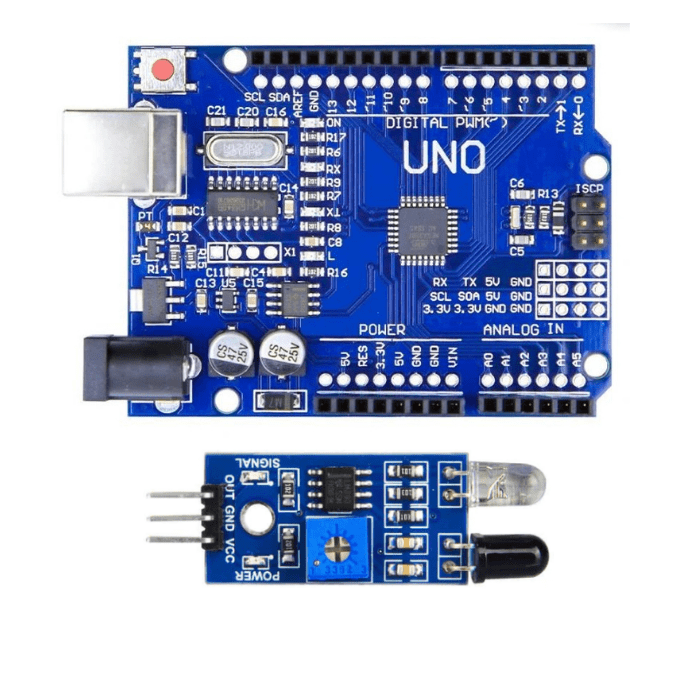

IR Proximity Sensor with SMD UNO Compatible with Arduino

IR Proximity Sensor with SMD UNO Compatible with Arduino

First Come First Serve Offer (T&C Apply )

302.82
0.00 302.82
Sale Sold out
Shipping calculated at checkout.

IR Proximity Sensor with SMD UNO Compatible with Arduino

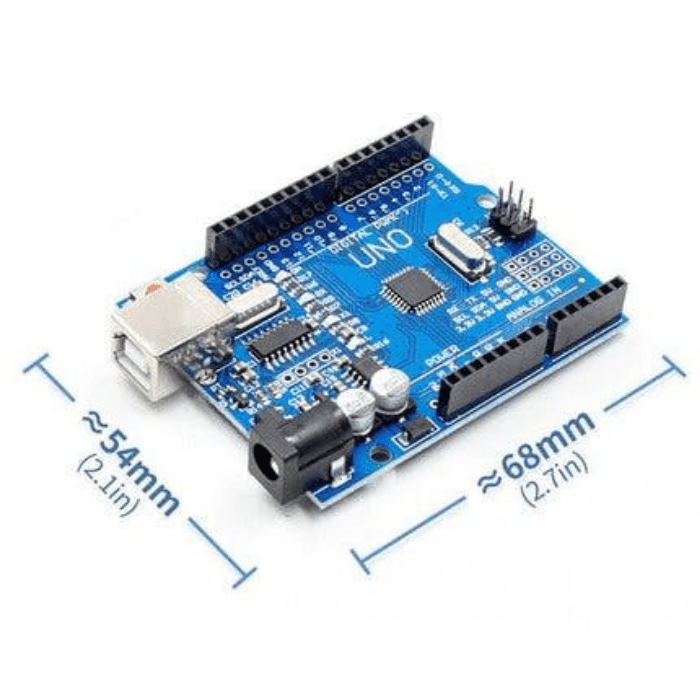

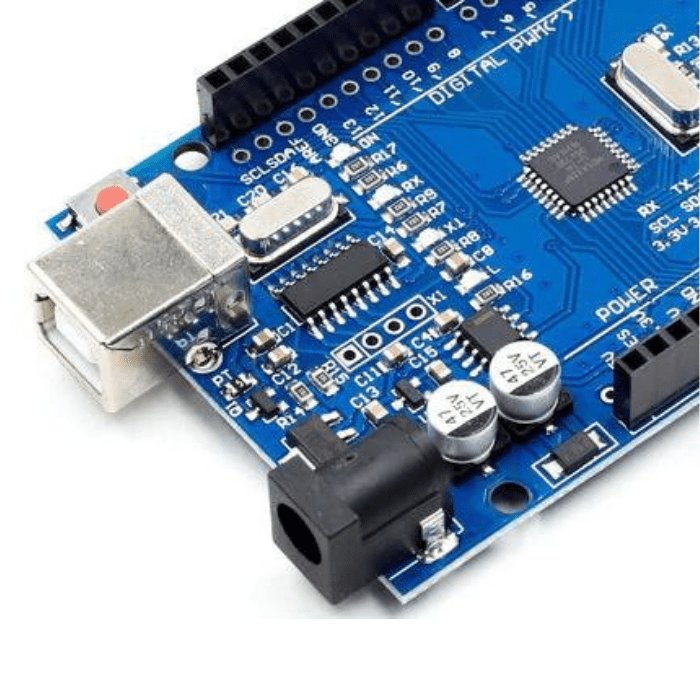

The Arduino UNO SMD board is based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

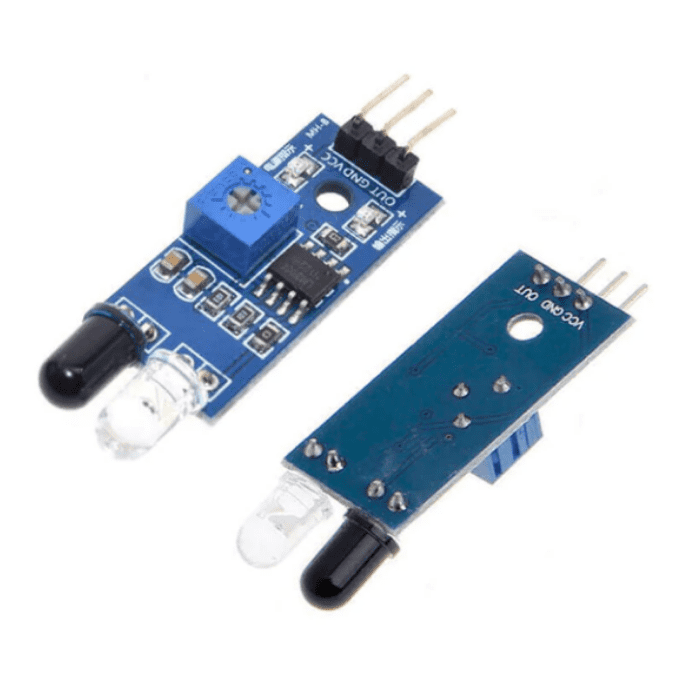

IR Proximity Sensor module has the great adaptive capability of the ambient light, having a pair of an infrared transmitter and the receiver tube, the infrared emitting tube to emit a certain frequency encounters an obstacle detection direction (reflecting surface), infrared reflected the receiver tube receiving, after a comparator circuit processing, the green LED lights up, while the signal output will output digital signal (a low-level signal).

Arduino UNO Pinout:

Arduino UNO Pinout

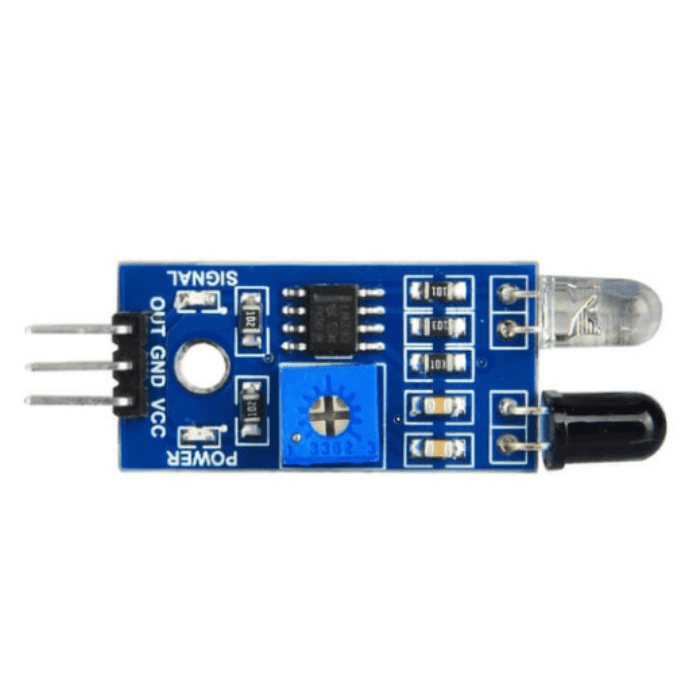

IR Proximity Sensor Pinout:

IR Proximity Sensor Pinout

Applications:

  • Remote System Monitoring
  • Home Alarm System
  • Remote Controlling System
  • Security Access Control
  • Vehicle tracking
  • SMS Gateway
  • Arduino Music Instrument
  • Robot Car
  • Fingerprint door lock

Package Includes:

  • 1 x Arduino UNO SMD
  • 1 x IR Proximity Sensor module

Specifications:

Microcontroller

ATmega328

Digital I/O Pins

14

Analog Inputs

6

Crystal Oscillator Frequency

16MHz

Operating Voltage

6-20V

Dimensions

7 x 5 x 1cms

Weight

10 grams

Main Chip Of IR Proximity Sensor

LM393

Operating Voltage (VDC) Of IR Proximity Sensor

3.6 ~ 5

Distance Measuring Range (CM)

2 ~ 30

Dimensions Of IR Proximity Sensor

48 x 14 x 8 mm
