Single Phase Solid State Relay 250V SSR-90DA 90A DC Control AC
Single Phase Solid State Relay 250V SSR-90DA 90A DC Control AC
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
Single Phase Solid State Relay 250V SSR-90DA 90A DC Control AC
The Single Phase Solid State Relay 250V SSR-90DA 75A DC Control AC is a high-performance switching device designed for reliable and efficient operation in various industrial applications. It features no switching sparks and operates with high switching speed, ensuring smooth and silent performance. Built with anti-vibration properties and excellent electromagnetic compatibility, this solid-state relay offers enhanced durability and stability. Its resistance to corrosive, humid, and dusty environments makes it ideal for use in harsh industrial conditions. With high reliability and a compact design, the SSR-90DA is a perfect choice for temperature controllers and automated control systems. Widely used in petrochemical equipment, food machinery, packaging machinery, CNC machine tools, and other automation fields, this relay ensures efficient and long-lasting operation.Technical Details of Solid State Relay
- Type: SSR-90DA
- Control Method: DC to AC
- Load Current: 90A
- Load Voltage: 24V to 380V AC
- Input Control Voltage: 3V to 32V DC
- On Voltage: ≤1.5V AC
- Off Leakage Current: ≤2mA
- On-Off Time: ≤10ms
- Dielectric Strength: 2500V AC
- Insulation Resistance: 500MΩ at 500V DC
- Ambient Temperature: -30°C to +75°C
- Mounting Method: Bolt Fixed
- Work Indicator: LED
- Weight: 98g
Features of solid-state relay
- High Current Capacity: Rated for 75A, suitable for high-power applications.
- DC Control AC: Accepts 3-32V DC input to switch 24-250V AC output.
- Solid-State Switching: No mechanical parts, ensuring long life and silent operation.
- Optical Isolation: Protects the control circuit from high voltage spikes.
- Fast Switching Speed: Provides efficient and precise switching compared to mechanical relays.
- Zero Crossing Detection: Reduces electrical noise and improves switching efficiency.
- Heat Dissipation: Requires heat sink for better thermal management.
- Industrial Grade Build: Designed for automation, motor control, heating elements, and lighting.
Applications
- Industrial Automation – Used for controlling high-power AC loads in automated machinery.
- Heating Systems – Ideal for ovens, heaters, and temperature-controlled equipment.
- Motor Control – Used in AC motor speed control and soft start applications.
- Lighting Control – Efficient switching of LED, halogen, and industrial lighting systems.
- Power Distribution – Provides reliable and silent operation in electrical distribution systems.
- CNC Machines – Helps in precise control of machining equipment.
- Home Appliances – Used in HVAC systems, smart home automation, and energy-saving devices.

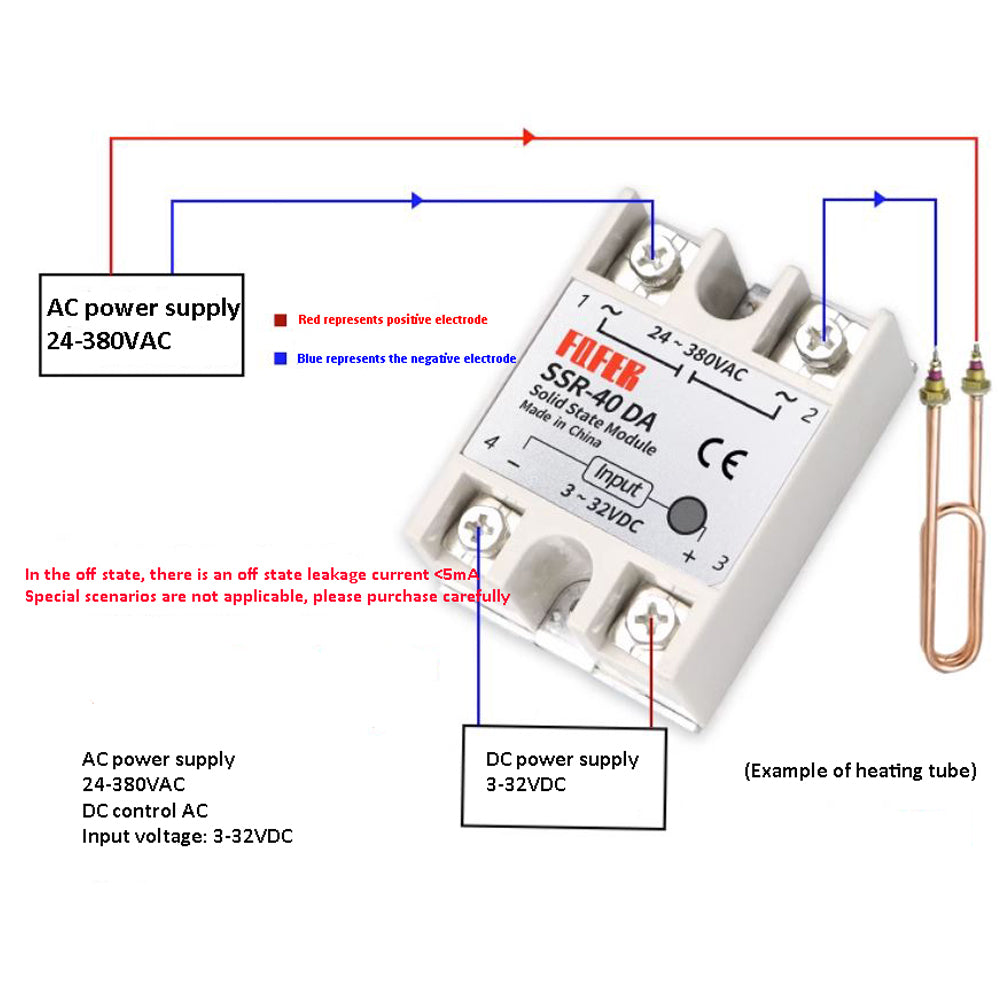

Connections
Physical Attributes
- Material: ABS
- L x W x H (mm): 62.6 x 45.7 x 23.5
- Weight (gm): 98
Package Include
- 1 x Single Phase Solid State Relay 250V SSR-90DA 75A DC Control AC
