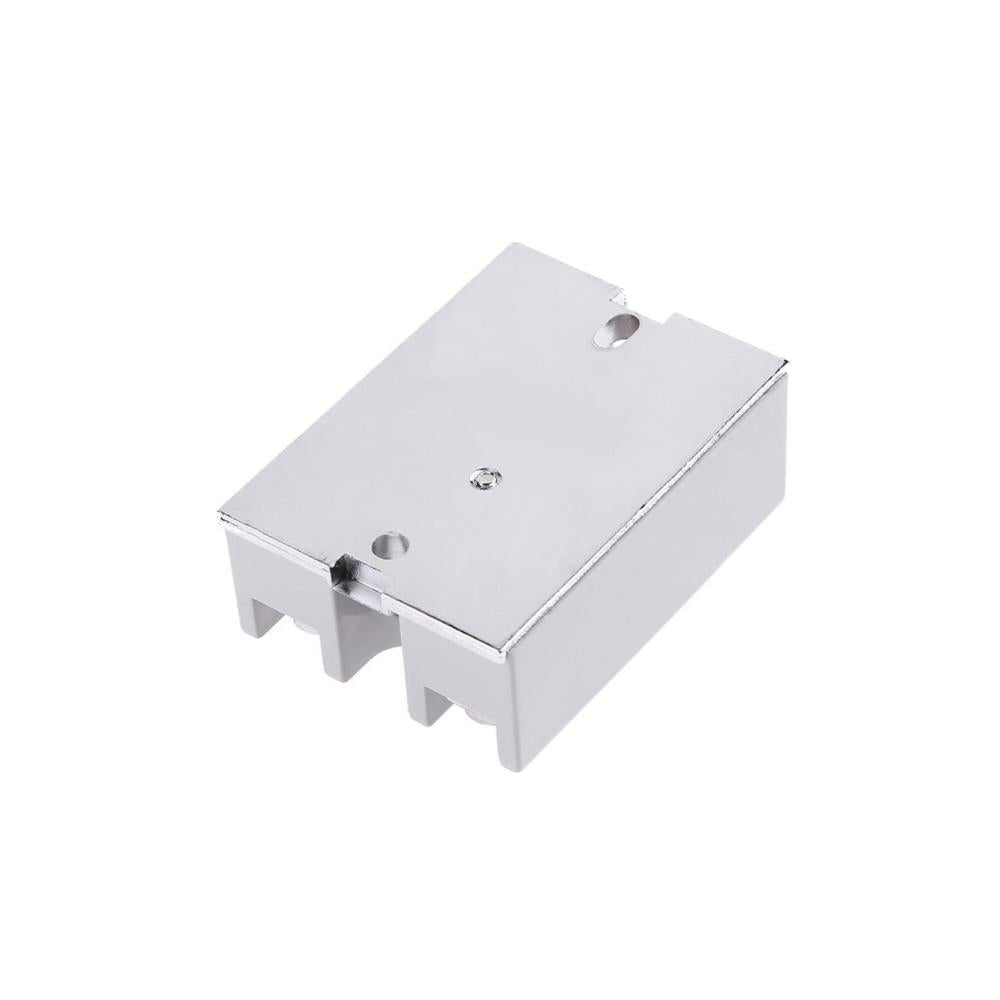

Single Phase Solid State Relay 250V SSR-80DA 80A DC Control AC

Single Phase Solid State Relay 250V SSR-80DA 80A DC Control AC

First Come First Serve Offer (T&C Apply )

749.00
1,279.00 749.00
Sale Sold out
Shipping calculated at checkout.

Single Phase Solid State Relay 250V SSR-80DA 80A DC Control AC

This is AC To AC SSR-80AA Solid State Relay Module 80-250VAC/24-380VAC 80A. A solid-state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low voltage signal isolated optically from the load.

The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.

This particular SSR can switch current loads of up to 80A with an 80-250VAC input and a zero cross-trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Technical Details of Solid State Relay

  • Model Type: Solid State Relay
  • Rated Load Current (A): 80
  • Dielectric Strength: Over 2.5kVA / 1 min
  • Trigger Voltage (VAC): 80-250V
  • Switching Voltage (VAC): 24-380 @ 80A
  • Operating Temperature (°C): -20 to 85
  • Material: ABS
  • Length (mm): 61.2
  • Width (mm): 45.6
  • Height (mm): 23
  • Weight (g): 99

Features of solid-state relay

  • Long service life and high reliability
  • Reduced electromagnetic interference
  • Highly reliable, compact size designed to offer users maximum simplicity.

Applications :

  • Industrial automation
  • Heating control systems
  • Motor speed control
  • LED and lighting control
  • Power switching in HVAC
  • Temperature regulation in ovens

Connections

Single Phase Solid State Relay 250V SSR-80DA 80A DC Control AC

Single Phase Solid State Relay 250V SSR-X-DA (X-A) Solid State Relay (DC Control AC)

Physical Attributes

  • Material: ABS
  • L x W x H (mm): 61.2x 45.6 x 23
  • Weight (gm): 99

Package Include

  • 1 x Single Phase Solid State Relay 250V SSR-80DA 80A DC Control AC
