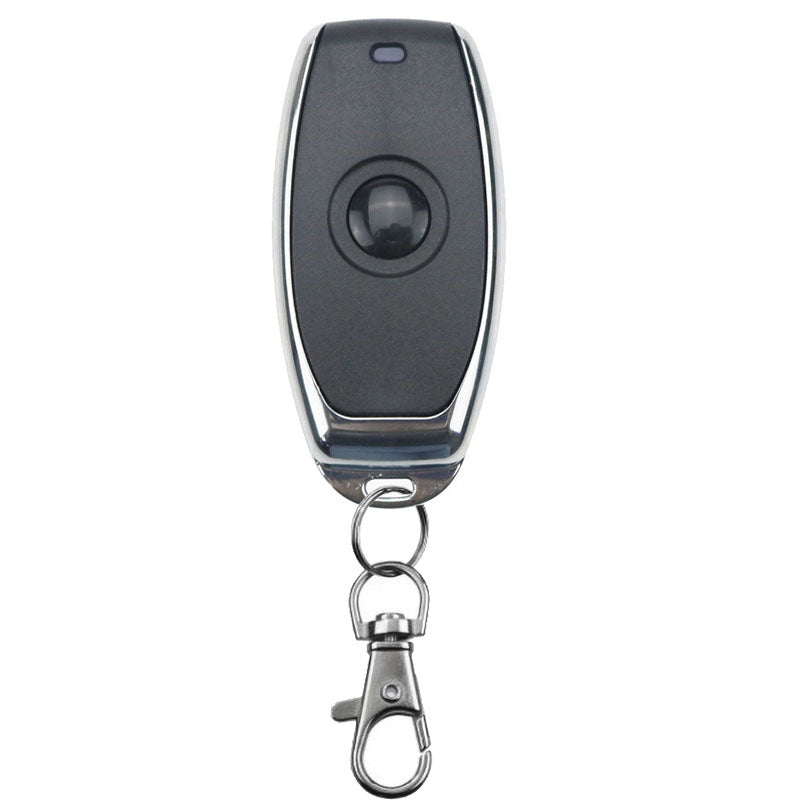

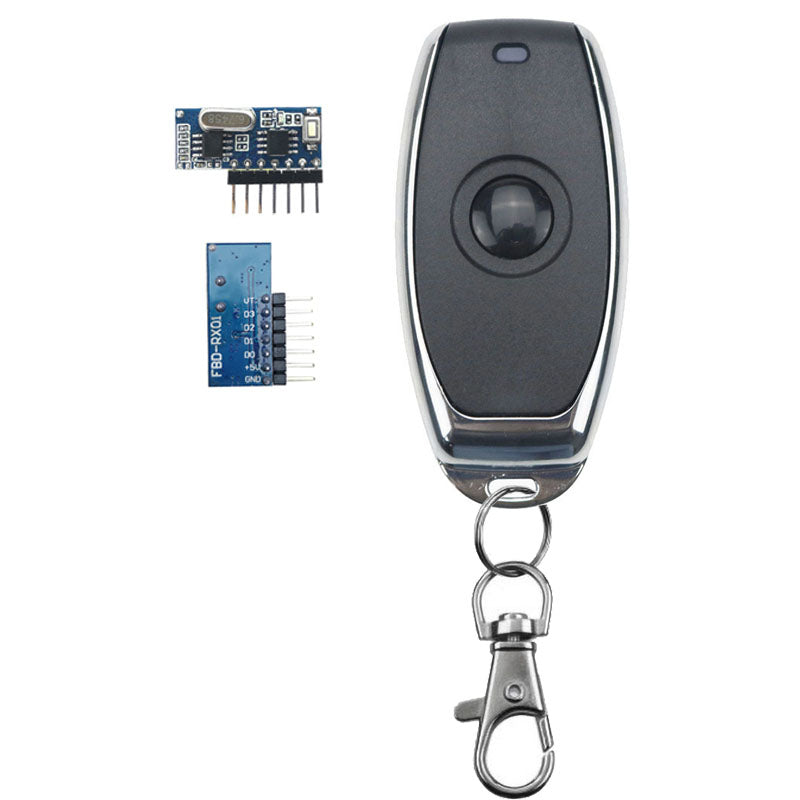

Single Channel remote control + RF superheterodyne receiver module (3.3V~5V) 433MHZ

Single Channel remote control + RF superheterodyne receiver module (3.3V~5V) 433MHZ

First Come First Serve Offer (T&C Apply )

342.02
0.00 342.02
Sale Sold out
Shipping calculated at checkout.

Wireless module using a remote control to switch a relay using a remote. It can be used as a Single channel wireless switch. It's Applications: Garage Door, Household Electrical Appliances, RGB lights.

Features

  • Chip and Operating mode
  • Learning code (1527,2240,HT6P20B,HT6P20D etc)
  • Fixed code (2260,2262 etc)
  • Hopping code(HCS301,300,200 etc.)
  • Copy code(Face to face)
Specifications
 Working Voltage 3V DC
Working Current ≤12mA
Working Frequency 433MHz
Transmit power ≥10mW
Transmission Speed 50-60kHz
Frequency Windage ±0.2MHz
Transmission Distance up to 100 meters
OEM & ODM Yes
Country of Origin China


Functions:

  • Momentary: Push the remote button, to make the receiver output HIGH, release the remote button, and the receiver output becomes low.

  • Toggle: Push the remote button once, to make the receiver output HIGH, push again the remote button, and the receiver output becomes low.


Pairing Instructions:

Clearing the code :
Press the learning button continuously on the receivers eight times. The light will flash seven times and switch off. Code cleared, receiver rest.
Note that resetting means all your paired remote controls will need to be repaired in order to control the receiver again.

Setting Momentary Mode:
Press the learning key on the Receiver once. The LED on the Receiver will flash once and then switch on.
When the LED is on, press the button on the remote control(the one you wish to control the receiver with), and the LED (on the Receiver) will flash three times and switch off, which indicates learning is complete.
Setting Toggle Mode:
Press the learning key on the Receiver twice, and the LED on the Receiver will flash twice and then switch on.
When the LED is on, press the button of the remote control(the one you wish to control the receiver with), and the LED (on the Receiver) will flash 3 times and switch off, which indicates learning is complete.
