SCT-013-000 60A Non-invasive AC current sensor Split Current Transformer (60A/1V)

SCT-013-000 60A Non-invasive AC current sensor Split Current Transformer (60A/1V)

First Come First Serve Offer (T&C Apply )

399.00
559.00 399.00
Sale Sold out
Shipping calculated at checkout.

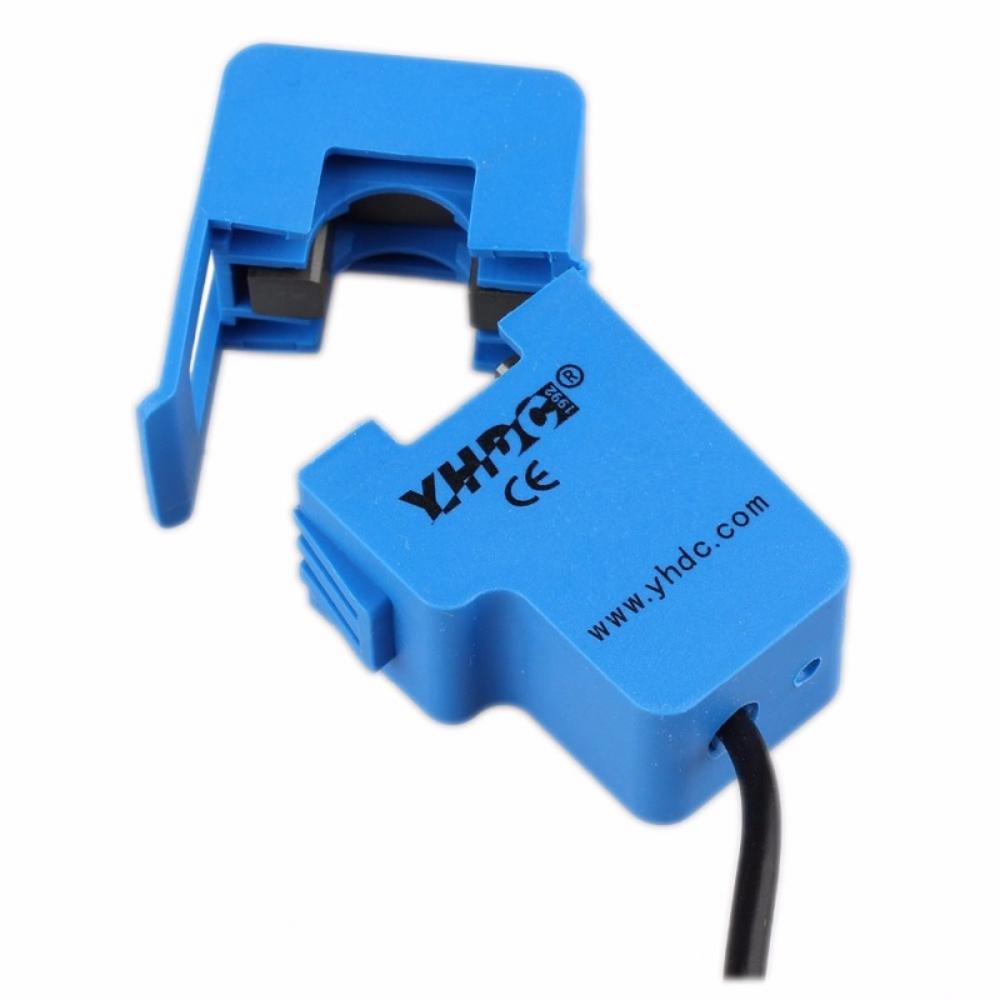

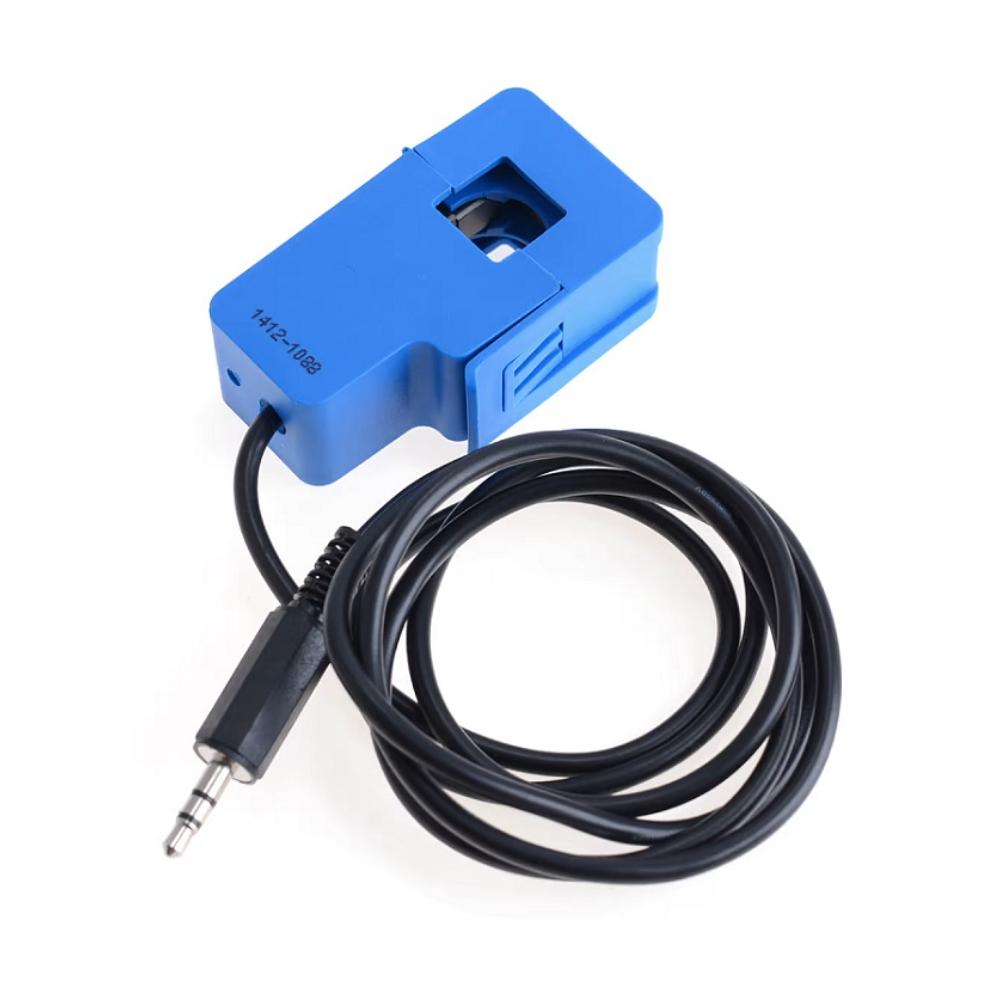

SCT-013-000 60A Non-invasive AC sensor Split Current Transformer (60A/1V)

The SCT-013-060 Non-invasive current sensor offers a silicon steel sheet split core structure, hanging installation with a lead Length of 1m, used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor, etc.

Technical Details

  • Item Type: Current Sensor
  • Model Type: Current Sensor Clamp
  • Rated Input: 60A (rms)
  • Max Input: 75A
  • Rated Output: 1V
  • Accuracy: ±1%
  • Operating Voltage: 660V
  • Frequency: 50Hz – 1KHz
  • Dielectric Strength: 3.5KV (50Hz, 1 min)
  • Operating Temperature: -25°C to 70°C
  • Dimensions: 57.5 × 34 × 21 mm
  • Weight: 64g

Features

  • Non-invasive current transformer
  • Ideal for lighting, AC motors, air compressors, and monitoring
  • Supports current measurement and protection
  • Meets UL94-V0 flame retardant standards
  • Dual output: Current or voltage (built-in sampling resistor for voltage output)

Applications :

  • Current Measurement: Accurate current measurement for various electrical systems.
  • Monitoring and Protection of AC Motors: Ensures safe operation and performance monitoring of AC motors.
  • Lighting Equipment: Tests and monitors current in lighting systems to ensure proper function.
  • Air Compressors: Measures current usage and ensures safe operation in air compressor systems.
  • Power Supply Testing: Ideal for testing USB chargers and power sources.
  • Battery Capacity Testing: Tests battery performance by simulating real-world load conditions.
  • DIY Projects: Useful for hobbyists and electronics enthusiasts to test components.
  • Portable Testing: Compact design for convenient on-the-go testing.

Physical Attributes

  • Dimensions: 57.5 × 34 × 21 mm
  • Weight: 64g
  • Cable Length: 1 m

Package Includes

  • 1 x SCT-013-000 60A Non-Invasive AC Current Sensor Split Current Transforme (60A/1V)
