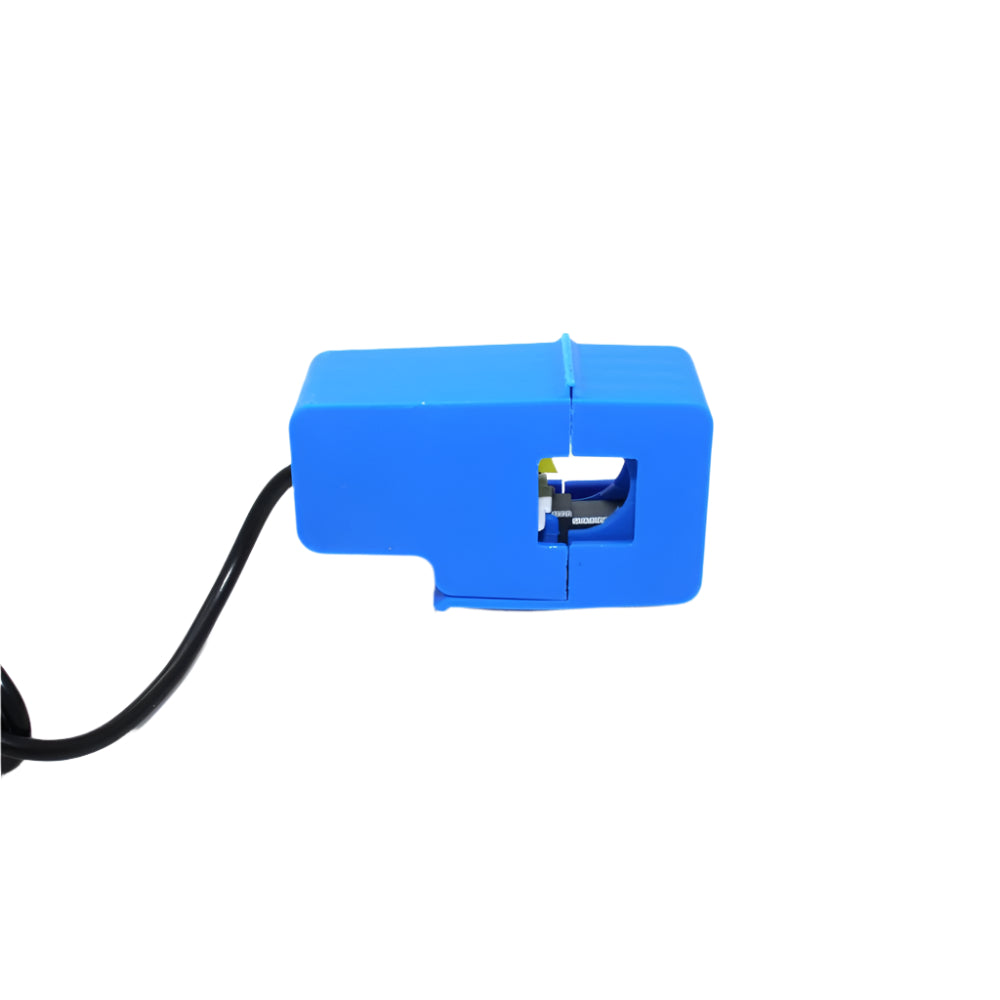

SCT-013-000 20A Non-Invasive AC Current Sensor Split Current Transformer (20A/1V)

SCT-013-000 20A Non-Invasive AC Current Sensor Split Current Transformer (20A/1V)

First Come First Serve Offer (T&C Apply )

399.00
559.00 399.00
Sale Sold out
Shipping calculated at checkout.

SCT-013-000 20A Non-Invasive AC Current Sensor Split Current Transformer (20A/1V)

This is SCT-013-010 Non-invasive AC Current Sensor Clamp Sensor 20A. SCT-013-000 is a Non-Invasive AC current sensor i.e. it is a current transformer that can be used to measure AC current up to 100 amperes.

This Non-invasive AC Current Sensor clamped around the supply line can measure a load up to 20 Amps, and allow you to calculate how much current pass through it. It can be useful for building your own energy monitor or for building an over-current protection device for an AC load. This current clamp can be used to detect a current of up to 20A. Simply clip it around the current source that you wish to measure and it will produce a (very) small AC voltage proportional to the current. The cable is terminated on one end with a standard 3.5mm jack (like a headphone jack).

Use this to build your own energy monitor and keep your power usage down, or use it to build an over-current protection device for an AC load. See the link below for an example project. Check out the datasheet for the pinout of the 3.5mm jack.

Technical Details

  • Item Type: Current Sensor.
  • Model Type: Current Sensor Clamp.
  • Dielectric Strength: 6000 VAC/1 min.
  • Operating Temperature: -25°C to 85°C.
  • Outputs: 1V & 20A.
  • Length: 57 mm.
  • Width: 36 mm.
  • Height: 21 mm.
  • Weight: 72 g.
  • Cable Length: 1 m.

Features

  • Non-invasive current transformer for easy installation.
  • Suitable for lighting equipment, AC motors, air compressors, monitoring, and protection.
  • Complies with UL94-V0 flame retardant standards for safety.
  • Two output forms: current and voltage (voltage output via built-in sampling resistor).
  • Non-linearity of ±3% (10%-120% of rated input current).
  • Output plug: 3.5mm for compatibility with various systems.

Applications :

  • Current Measurement: Accurate current measurement for various electrical systems.
  • Monitoring and Protection of AC Motors: Ensures safe operation and performance monitoring of AC motors.
  • Lighting Equipment: Tests and monitors current in lighting systems to ensure proper function.
  • Air Compressors: Measures current usage and ensures safe operation in air compressor systems.
  • Power Supply Testing: Ideal for testing USB chargers and power sources.
  • Battery Capacity Testing: Tests battery performance by simulating real-world load conditions.
  • DIY Projects: Useful for hobbyists and electronics enthusiasts to test components.
  • Portable Testing: Compact design for convenient on-the-go testing.

Physical Attributes

  • Length: 57 mm.
  • Width: 36 mm.
  • Height: 21 mm.
  • Weight: 72 g.
  • Cable Length: 1 m.

Package Includes

  • 1 x SCT-013-000 20A Non-Invasive AC Current Sensor Split Current Transforme (20A/1V)
