SCT-013-000 100A Non-invasive AC Current Sensor Split Current Transforme (100A/1V)

SCT-013-000 100A Non-invasive AC Current Sensor Split Current Transforme (100A/1V)

First Come First Serve Offer (T&C Apply )

399.00
559.00 399.00
Sale Sold out
Shipping calculated at checkout.

SCT-013-000 100A Non-invasive AC Current Sensor Split Current Transformer (100A/1V)

If you are wandering to detect current in the easiest way then you definitely have a current sensor. So, here is the solution for you. This Current sensor comes with good quality and you can purchase it at a reasonable price.

This is SCT 013 000 100A Non-Invasive AC Current Sensor Split Core Type Clamp Meter Sensor. SCT-013-000 is a Non-Invasive AC current sensor i.e. it is a current transformer that can be used to measure AC current up to 100 amperes.

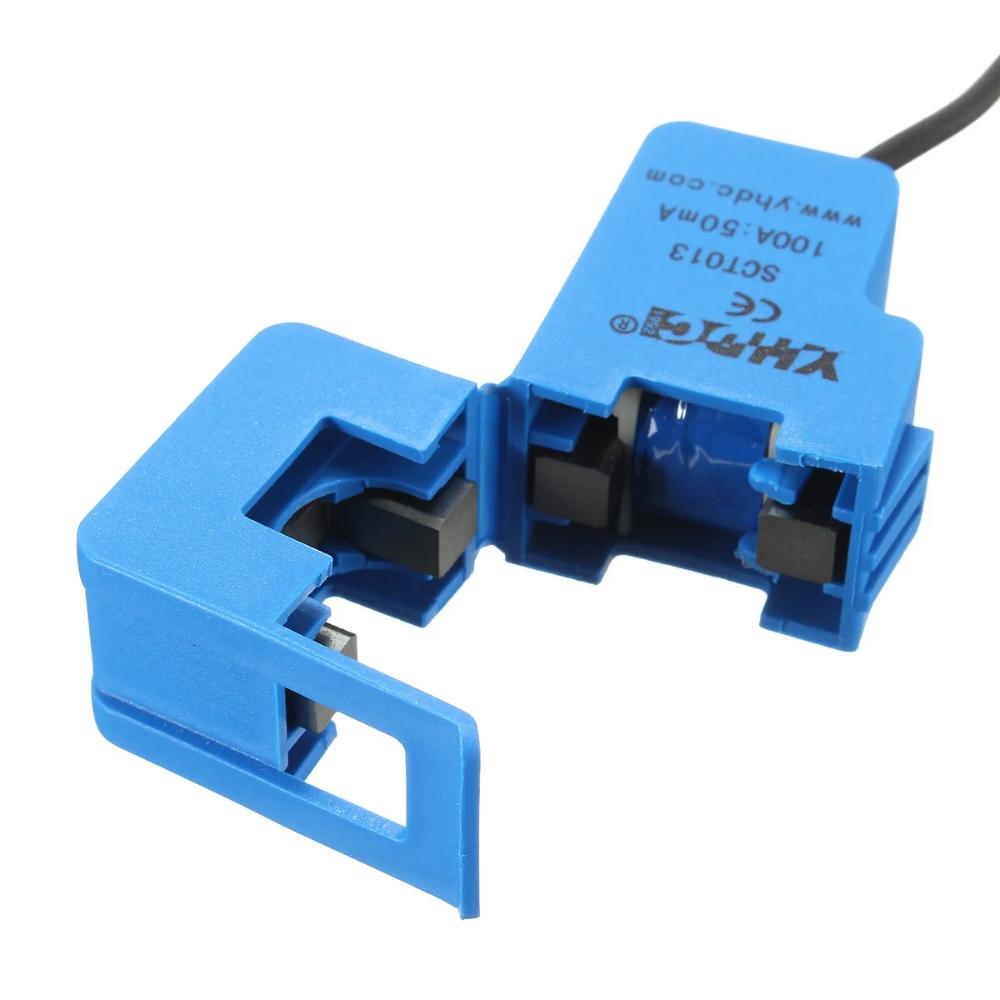

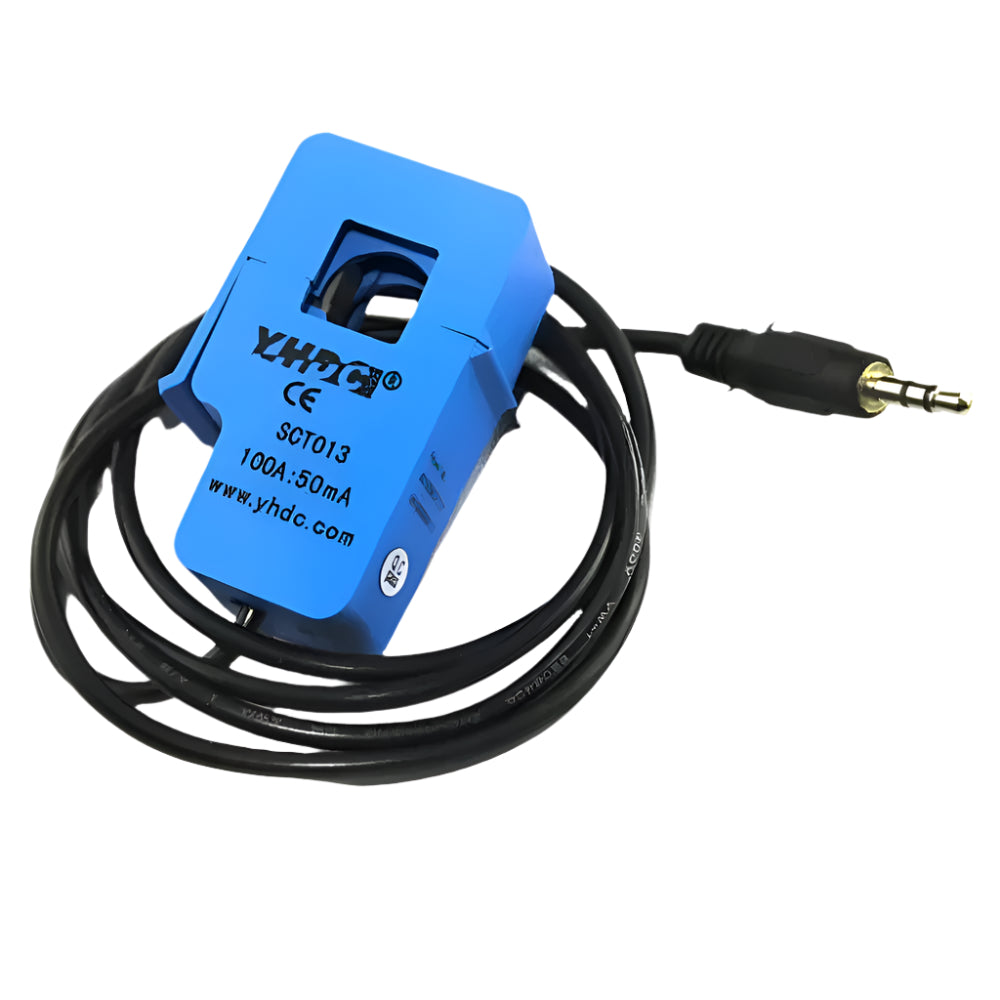

Current transformers (CTs) are sensors for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter). The split-core type such as the SCT-013-000 CT in the picture is particularly suitable for DIY use. Clip this SCT 013 000 straight onto either the live or neutral wire coming into the building without having to do any high- voltage electrical work.

Like any other transformer, a current transformer has a primary winding, a magnetic core, and a secondary winding. In the case of whole building monitoring the primary is the life or the neutral wire (not both) coming into the building itself and going through the hole in the CT. The secondary winding comprises many turns of fine wire housed within the casing of the transformer.

Technical Details

  • Item Type: Current Sensor
  • Model Type: Current Sensor Clamp
  • Dielectric Strength: 6000VAC/1min
  • Operating Temperature: -25 to 85°C
  • Cable Length: 1m

Features

  • Non-invasive current transformer
  • Ideal for lighting, AC motors, and monitoring
  • Supports current measurement and protection
  • UL94-V0 flame retardant compliant
  • Dual output: Current/Voltage (built-in resistor)
  • Non-linearity: ±3% (10%-120% rated input)
  • Output Plug: 3.5mm

Applications :

  • Current Measurement: Accurate current measurement for various electrical systems.
  • Monitoring and Protection of AC Motors: Ensures safe operation and performance monitoring of AC motors.
  • Lighting Equipment: Tests and monitors current in lighting systems to ensure proper function.
  • Air Compressors: Measures current usage and ensures safe operation in air compressor systems.
  • Power Supply Testing: Ideal for testing USB chargers and power sources.
  • Battery Capacity Testing: Tests battery performance by simulating real-world load conditions.
  • DIY Projects: Useful for hobbyists and electronics enthusiasts to test components.
  • Portable Testing: Compact design for convenient on-the-go testing.

Physical Attributes

  • L x W x H (mm): 57 x 36 x 21
  • Weight: 72 g.
  • Cable Length: 1 m.

Package Includes

  • 1 x SCT-013-000 100A Non-invasive AC Current Sensor Split Current Transforme (100A/1V)
