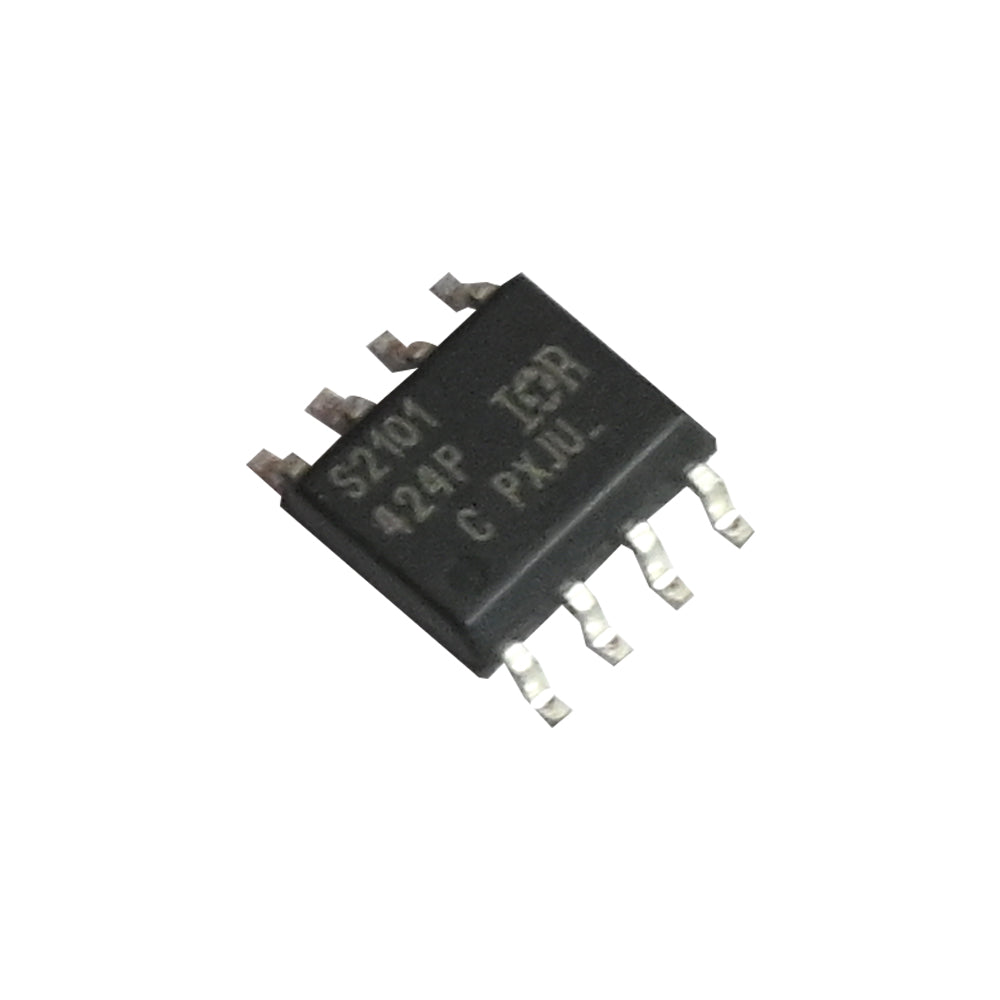

S2101 High and Low Side Driver SOIC-8 Package

S2101 High and Low Side Driver SOIC-8 Package

First Come First Serve Offer (T&C Apply )

46.06
0.00 46.06
Sale Sold out
Shipping calculated at checkout.

Its S2101 High and Low Side Driver SOIC-8 Package, S2101 is an independent high-side and low-side referenced output channel power MOSFET and IGBT driver with high voltage and high speed. Proprietary Ruggedized monolithic construction is possible because of HVIC and latch-immune CMOS technologies. The logic input is compatible with 3.3 V or conventional CMOS or LSTTL output. The output drivers have a high pulse current buffer stage that is built with little driver cross-conduction in mind. A high side N-channel power MOSFET or IGBT that operates up to 600 V can be driven using the floating channel.

Features:

  • Floating channel designed for bootstrap operation
  •  Fully operational to +600 V
  •  Tolerant to negative transient voltage, dV/dt immune
  • Gate drive supply range from 10 V to 20 V
  • Undervoltage lockout
  • 3.3 V, 5 V, and 15 V logic input compatible
  • Matched propagation delay for both channels
  • Outputs in phase with inputs
Specifications
Power Dissipation 1W
Part Number S2101
Temperature -55 to 150
Mounting Type SMD
Package SOIC-8
No. of Pins 8
Current 130 mA/270 mA
Type Driver IC
Brand International Rectifier
