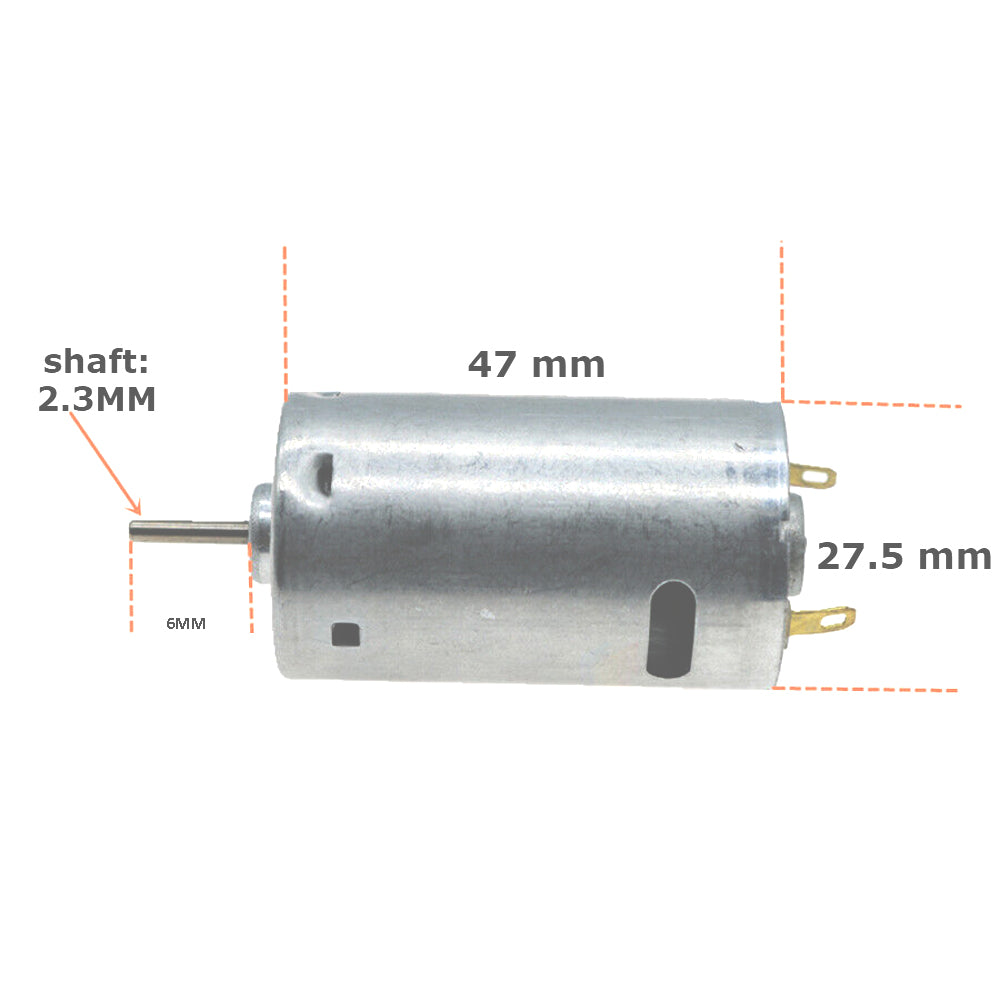

RS390 RS-390 390 6V-24V 4200-18900 RPM Carbon Brush DC Motor

RS390 RS-390 390 6V-24V 4200-18900 RPM Carbon Brush DC Motor

First Come First Serve Offer (T&C Apply )

149.00
199.00 149.00
Sale Sold out
Shipping calculated at checkout.

The RS390 DC Motor is a high-performance, versatile motor that operates across a wide voltage range of 6V to 24V. With an impressive top speed of 18,900 RPM at 24V, this motor is ideal for applications requiring high-speed rotation in confined spaces. Featuring durable carbon brushes, the RS390 ensures longevity and reliability, making it a perfect choice for hobbyists, DIY enthusiasts, and small machinery developers.

Key Features:

High Speed: Achieves speeds up to 18,900 RPM at 24V for efficient performance.

Wide Voltage Range: Operates smoothly from 6V to 24V for versatile applications.

Compact Size: Space-saving design with a height of 47 mm and a diameter of 27.5 mm.

Durable Carbon Brushes: Provides reliable electrical performance and a long service life.

Reversible Rotation: Capable of clockwise and counterclockwise rotation by switching polarity.

Easy Mounting: Standard 2.5 mm mounting holes spaced 16 mm apart facilitate quick installation.

Applications:

RC Vehicles: Perfect for powering small radio-controlled cars, boats, and planes.

Robotics: Ideal for driving components in hobby robots and mechanical projects.

Power Tools: Suitable for small drills, screwdrivers, and rotary tools.

Toys and Gadgets: Commonly used in high-speed toys, such as motorized fans and vacuums.


Specifications

  • Voltage Range: 6V to 24V DC
  • No Load Speed:
  • 6V: 4,200 RPM
  • 12V: 9,426 RPM
  • 24V: 18,900 RPM
  • No Load Current:
  • 6V: 0.2-0.3 A
  • 12V: 0.4-0.5 A
  • 24V: 0.7-1.0 A
  • Stall Current: 1.5-2.5 A
  • Output Shaft Diameter: 2.3 mm
  • Output Shaft Length: 6 mm
  • Mounting Screw Hole Size: 2.5 mm
  • Mounting Hole Distance (center-to-center): 16 mm
  • Motor Height: 47 mm
  • Motor Outer Diameter: 27.5 mm

Physical Attribute

  • Output shaft: 2.3MM
  • Shaft length: 6MM
  • Screw hole: 2.5MM
  • Hole distance: 16 MM
  • Weight: 100 g
  • Height: 47 MM (excluding front and rear bearing housings)
  • Motor outer diameter: 27.5 MM

Package Includes

  • 1 x RS390 RS-390 390 6V-24V 4200-18900 RPM Carbon Brush DC Motor
