Rotary Incremental Encoder Photo-Electric

Rotary Incremental Encoder Photo-Electric

First Come First Serve Offer (T&C Apply )

841.82
841.82
Sale Sold out
Shipping calculated at checkout.
Model

Rotary Incremental Encoder

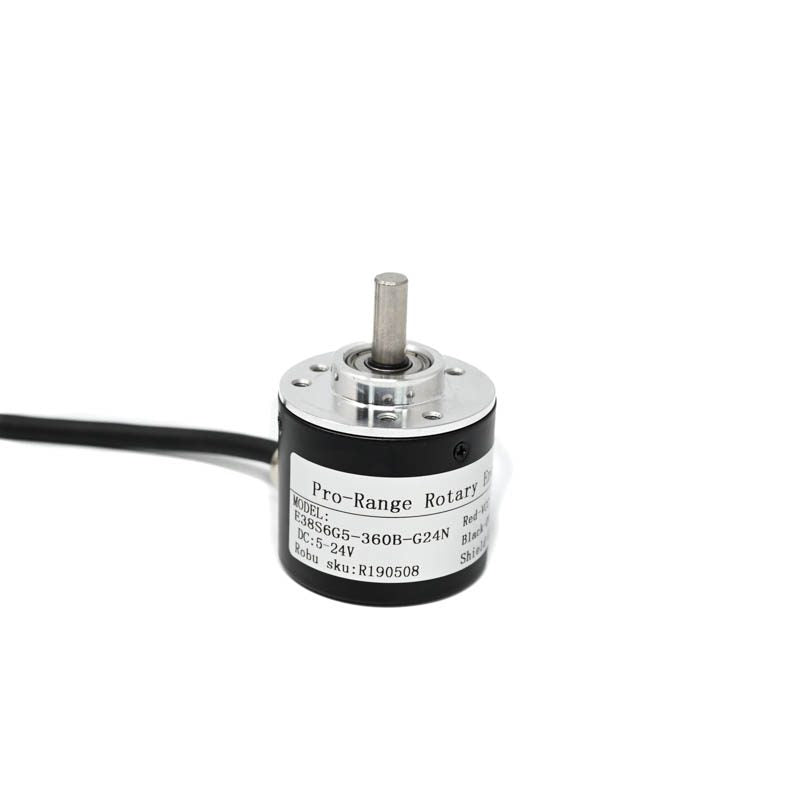

The Rotary Incremental Encoder is a high-precision position and motion sensor that converts rotational movement into digital signals. Utilizing a photo-electric sensing method, this encoder provides accurate incremental pulses for speed, direction, and position feedback in automation, robotics, and CNC applications.

Key Features:

✅ Photo-Electric Sensing Technology – Ensures high-resolution output with reliable performance.
✅ Incremental Output Signals (A/B Phase) – Provides precise quadrature signals for motion tracking.
✅ Durable Shaft & Housing – Built with a robust metal or high-grade plastic enclosure for long-term use.
✅ Wide Voltage Range – Typically operates between 5V to 24V DC for versatility.
✅ High Pulse Per Revolution (PPR) Options – Available in 100, 200, 360, 600, 1000, 2000, 2500 PPR (varies by model).
✅ Compact & Lightweight Design – Suitable for integration into compact automation systems.

Technical Specifications:

  • Sensing Type: Photo-Electric Optical

  • Shaft Diameter: 6mm / 8mm / 10mm (Varies by model)

  • Pulses Per Revolution (PPR): 100 / 200 / 360 / 600 / 1000 / 2000 / 2500 PPR

  • Operating Voltage: 5V / 12V / 24V DC

  • Output Signal: Quadrature A/B Phase, Open Collector or Push-Pull

  • Response Frequency: Up to 100 kHz

  • Rotational Speed: Up to 6000 RPM

  • Cable Length: Typically 1m (customizable)

  • Mounting Type: Flange or Servo Mount

  • Output Format: NPN / PNP Open Collector, Line Driver (Differential Output)

  • Operating Temperature: -20°C to +85°C

Applications:

🔹 CNC Machines & Robotics – Position and speed control in automated systems.
🔹 3D Printers & Stepper Motor Feedback – Improves motion precision.
🔹 Industrial Automation – Conveyor belt motion tracking.
🔹 Servo & DC Motor Control – Enhances closed-loop feedback.
🔹 Automated Measurement Systems – Detects angular movement in metrology devices.

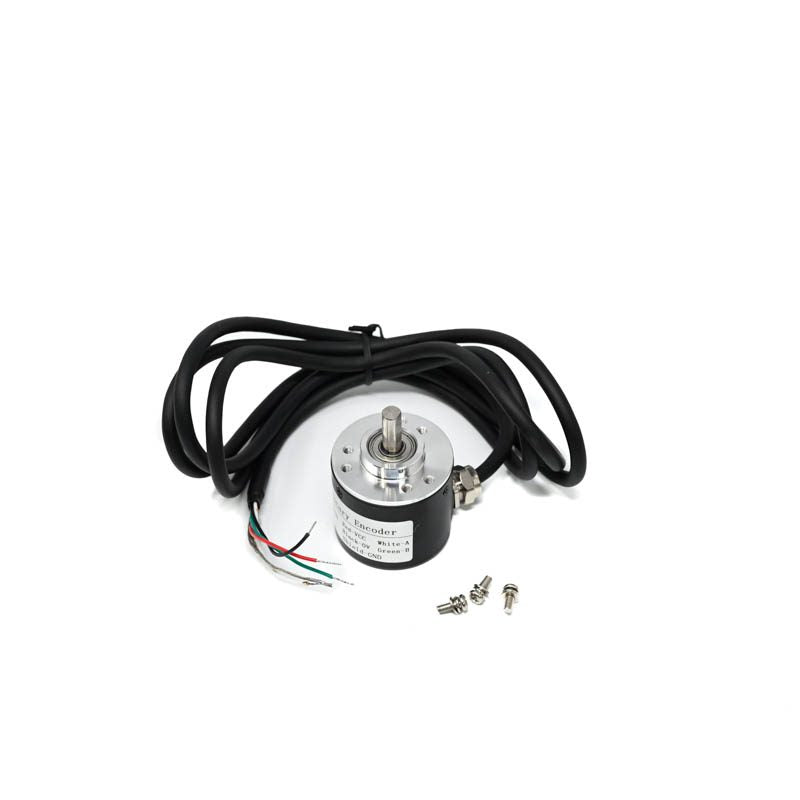

Package Includes:

✔ 1 x Rotary Incremental Encoder
✔ Mounting Accessories (Brackets, Screws – Depending on Model)
✔ Connection Cable (Pre-Wired or Terminal Type)
