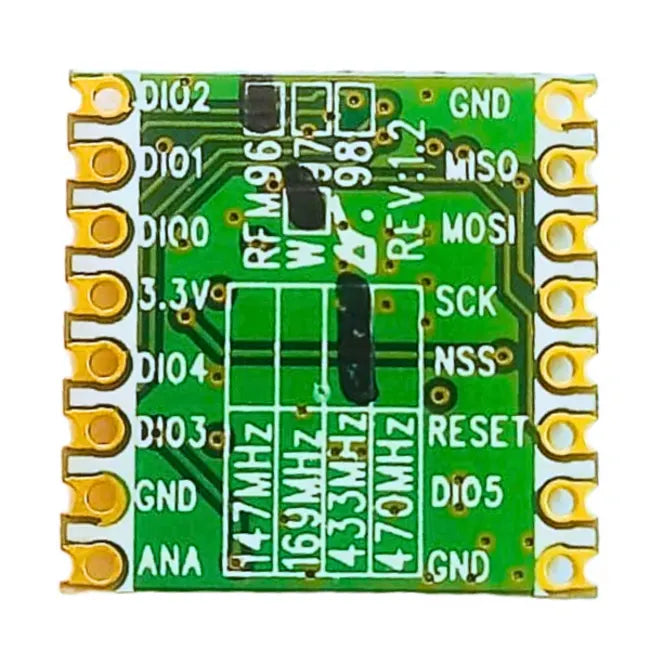

RFM96W mhz wireless Lora

The RFM96W 433mhz Wireless Receiving Module is the ultimate solution for long-range communication needs. Crafted with cutting-edge technology, it excels in ultra-long-range spread spectrum communication, ensuring high interference immunity and minimal power consumption.

Whether it's Automated Meter Reading, Home Automation, or Industrial Monitoring, this module delivers unmatched performance. Made with the patented LoRaTM modulation technique, the RFM96W achieves a sensitivity of over -148dBm. The integrated +20 dBm power amplifier, along with programmable bit rate and LoRaTM modem, ensures a link budget that outshines industry standards.

This module is perfect for Wireless Alarm Systems, Security Systems, and applications requiring extended range. The RFM96W's versatility extends to its use in Long-range Irrigation Systems, resolving the traditional compromise between range and selectivity. Its high sensitivity, robust power output, and programmable features make it an indispensable tool in diverse scenarios.

Crafted for durability and performance, the RFM96W comes with a low RX current of 10.3 mA, ensuring efficient operation. The fully integrated synthesizer with a resolution of 61 Hz adds to its reliability. The module's compatibility with various modulation techniques makes it suitable for FSK, GFSK, MSK, GMSK, LoRaTM, and OOK modulation.

Features:

  • LoRaTM Modem.
  • 168 dB maximum link budget.
  • +20 dBm – 100 mW constant RF output vs. V supply.
  • +14 dBm high-efficiency PA.
  • Programmable bit rate up to 300 kbps.
  • High sensitivity: down to -148 dBm.
  • Bullet-proof front end: IIP3 = -12.5 dBm.
  • Excellent blocking immunity.
  • Low RX current of 10.3 mA, 200 nA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
  • Built-in bit synchronizer for clock recovery

Applications:

  • Automated Meter Reading.
  • Home and Building Automation.
  • Wireless Alarm and Security Systems.
  • Industrial Monitoring and Control
  • Long-range Irrigation Systems

Also check SX1278 LoRa Module Ra- 02 433MHZ Wireless Spread Spectrum Transmission. The Ra-02 is based on LoRa spread spectrum technology, which enables long-range communication.

LoRa RFM95 Tutorial Ra-02 HopeRF module comparison RFM95W

Package Includes:

  • 1 x RFM96W mhz wireless Lora

Specifications:

Frequency 433mhz
Communication Range Ultra-Long Range
Sensitivity -148dBm
Power Output +20 dBm (100 mW) constant RF output
Bit Rate Programmable, up to 300 kbps
Modulation Technique LoRaTM Modem
Link Budget 168 dB maximum
Power Amplifier +14 dBm high-efficiency PA
Current Consumption Low RX current of 10.3 mA
Modulation Techniques Supported FSK, GFSK, MSK, GMSK, LoRaTM, OOK
Synthesizer Resolution 61 Hz
