RC522 RFID Module with Tag and card
RC522 RFID Module with Tag and card
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability

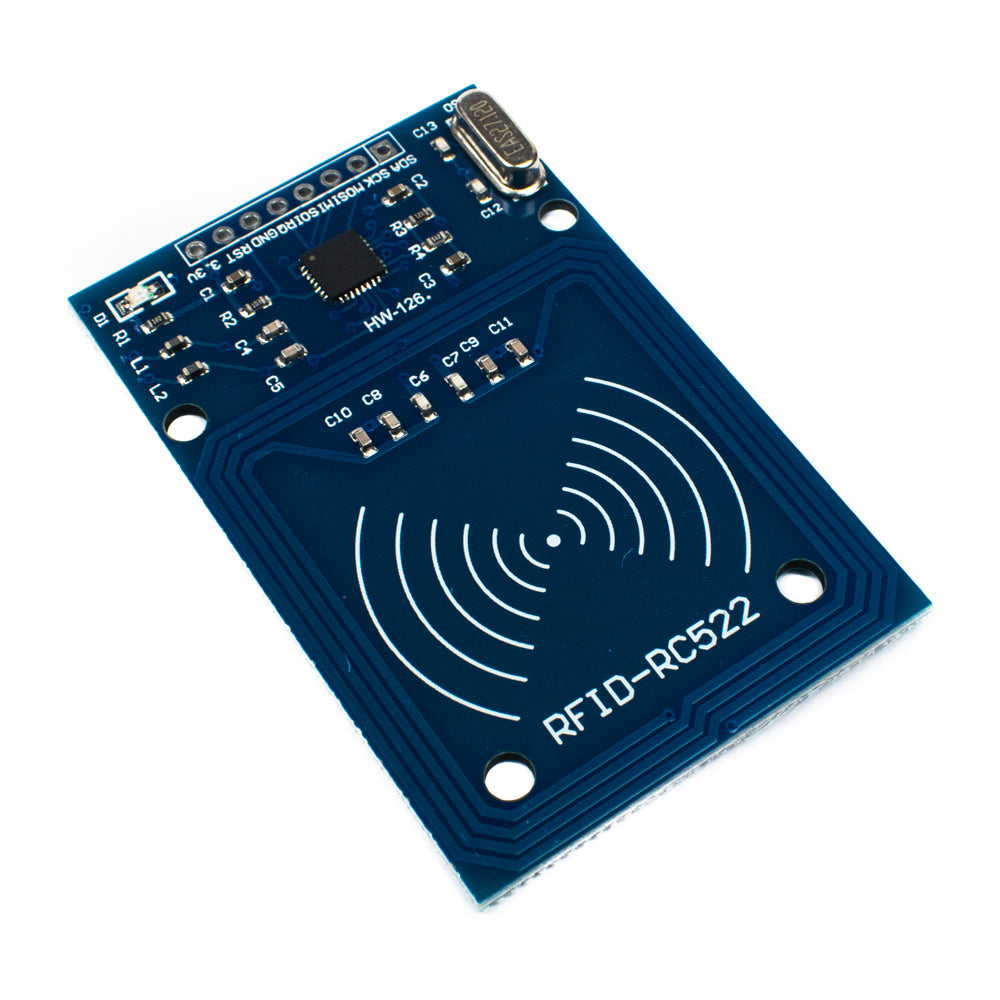

RFID Reader / Writer 13.56MHz with Cards RC522 A 13.56MHz RF reader cum writer module with an RC522 IC and two S50 RFID cards are included in the kit. The MF RC522 is a highly integrated transmission module operating at 13.56 MHz for contactless communication. The ISO 14443A/MIFARE mode is supported by the RC522. The RC522 - RFID Reader has an excellent modulation and demodulation algorithm for easy RF connection at 13.56 MHz. The S50 RFID Cards will make it easier for you to study and incorporate the 13.56 MHz RF transition into your project. To connect with microcontrollers, the module use SPI. There are already many projects in the open-hardware community that use the RC522 - RFID Communication with the Arduino.

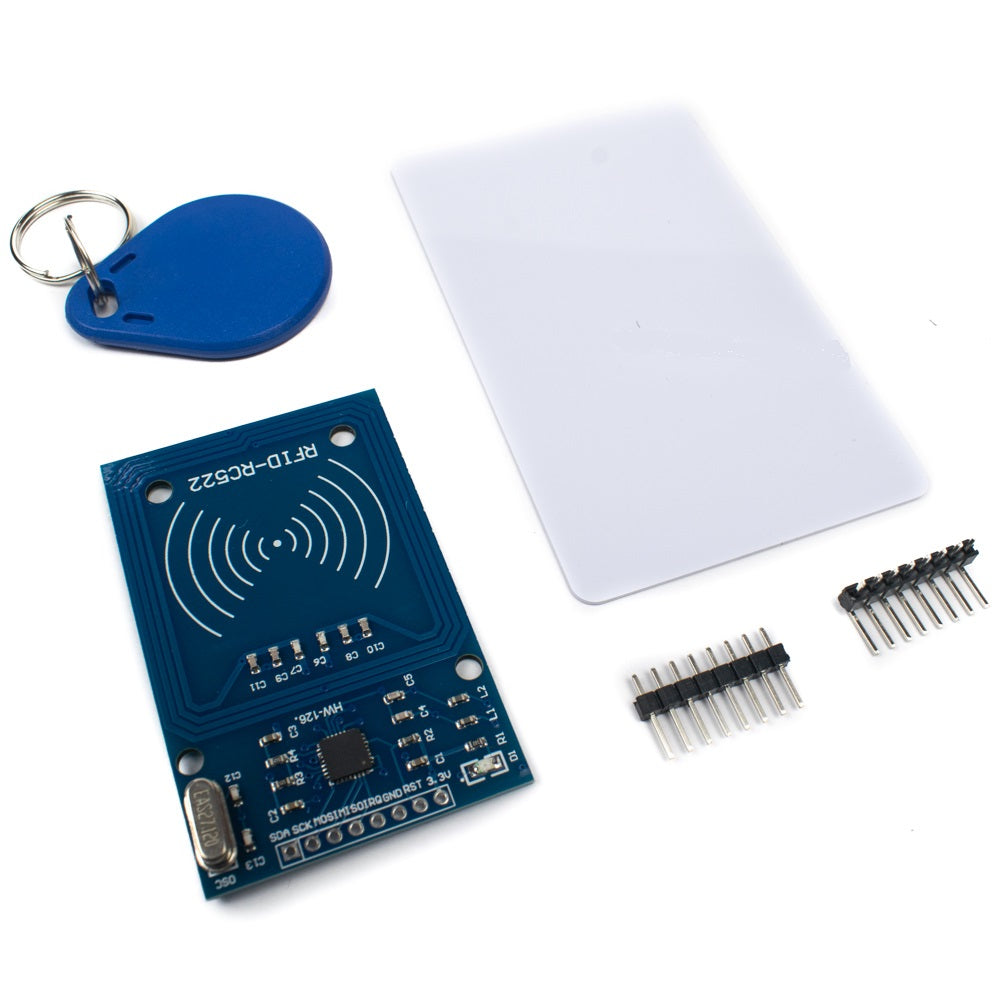

Package contents
- 1x Mifare RC522 Card Read Antenna RF Module.

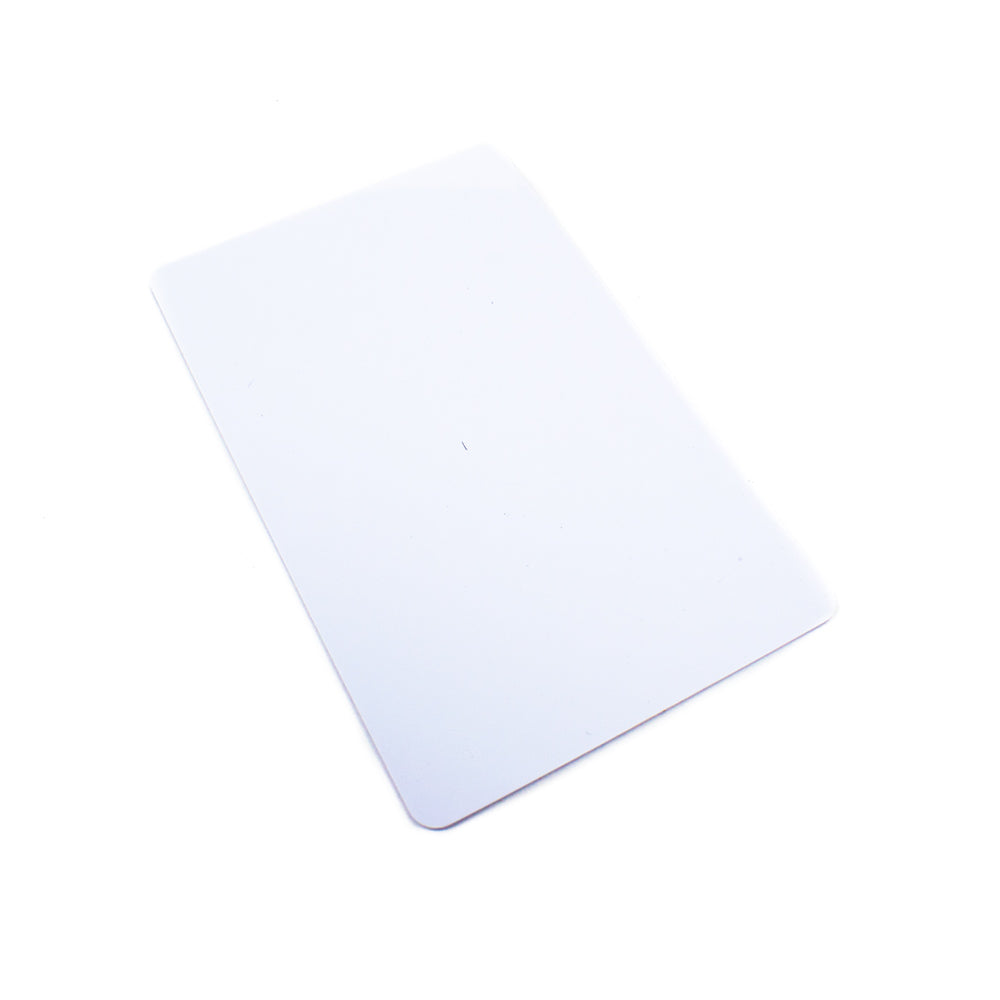

- 1x RFID plain white Card

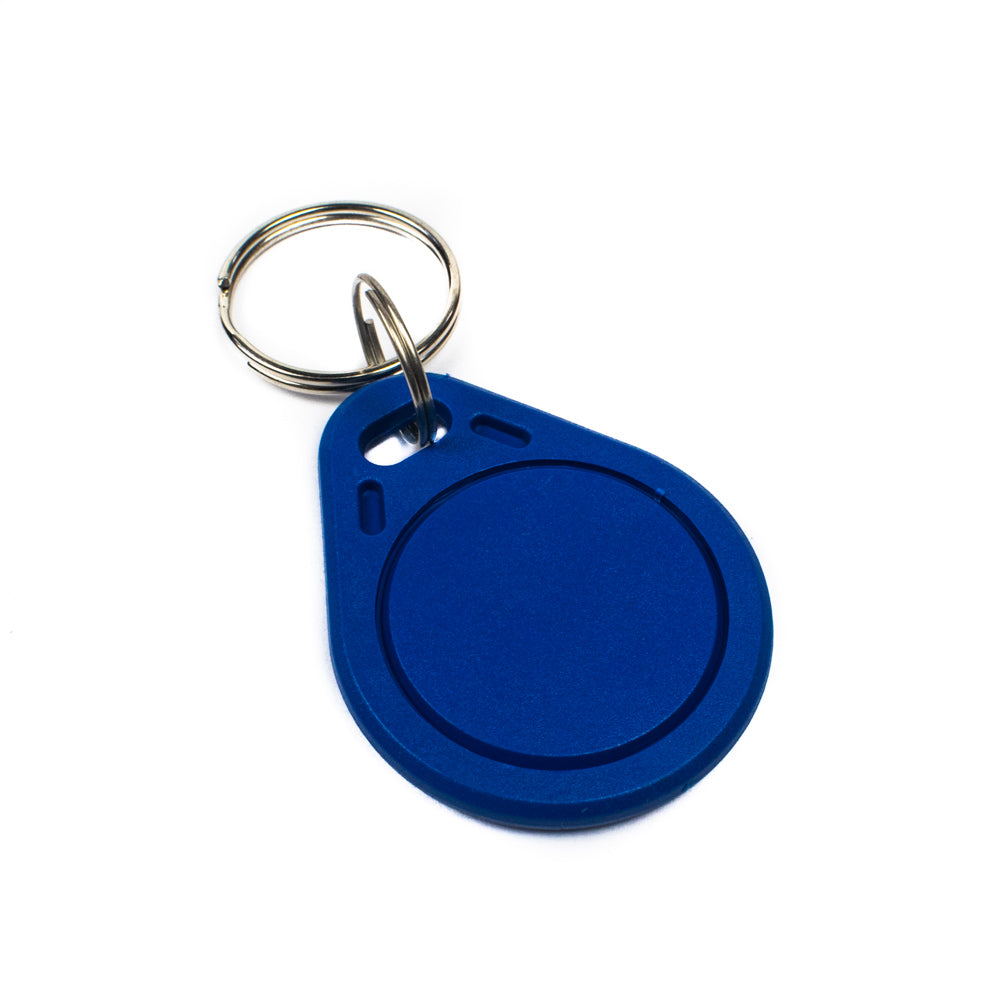

- 1x RFID FOB
- 1x 8pin right-angle header pins
- 1x 8pin straight header pin.
Specifications
| Idle Current | 10-13mA |
| Peak Current | <30mA |
| Input Voltage | 3.3 volts |
| Operating Frequency | 13.56 MHz |
| Relative Humidity | 5 % -95 % |
| Read Range | Approx 3cm with supplied card and fob |
| Max Data Transfer Rate | 10Mbit / s |
| Dimensions | 60mm × 39mm |
| Interface Type | SPI |
| Supported Card Types | Mifare1 S50, mifare1 S70, Mifare ultralight, Mifare Pro |
| Country of Origin | China |
