Industrial HMI All-in-one Touch Display For Raspberry Pi 5

Industrial HMI All-in-one Touch Display For Raspberry Pi 5

First Come First Serve Offer (T&C Apply )

Regular price 12,213.74
Regular price 0.00 Sale price 12,213.74
Sale Sold out
Shipping calculated at checkout.
Size
Controller

Industrial HMI All-in-one touch Display
for Raspberry pi 5

High Resolution | 10-point Touch | Aluminum alloy case

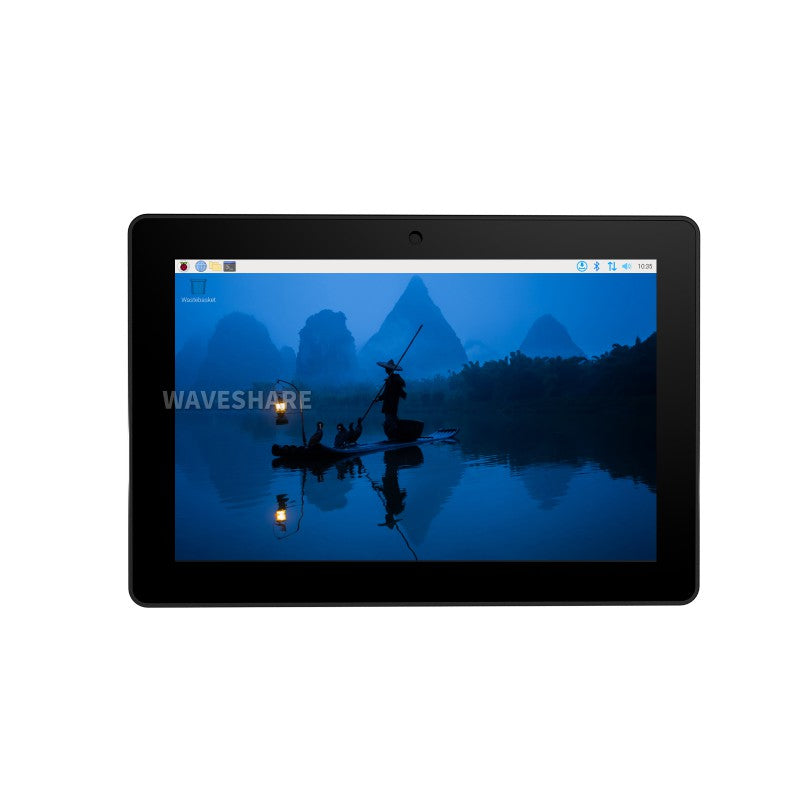

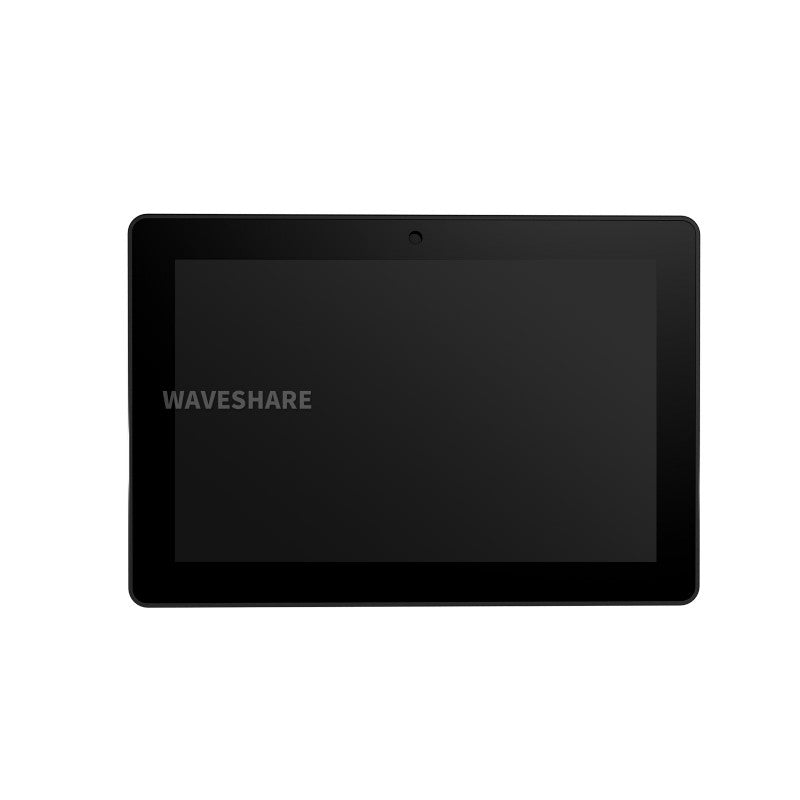

 Industrial 8inch / 10.1inch HMI all-in-one touch display for Raspberry Pi 5, front view

Size8" / 10.1" Resolution1280×800 Touch TypeCapacitive Display PanelIPS Viewing Angle178°
Touch PanelToughened Glass Touch Points10-Points Display InterfaceDual Standard HDMI Touch Panel TechOptical Bonding Front Camera5MP



Size Options

8inch HMI all-in-one touch display

8″

10.1inch HMI all-in-one touch display

10.1″


Version Options

Pi5 all-in-one display kit

Pi5 All-in-one Display
(Raspberry Pi 5-4GB/8GB is included, assembled before shippment)

touch Display + accessories kit

Touch Display + Accessories Only
(the Raspberry Pi 5 is NOT included)




Toughened Glass Panel

Sensitive Touch Control With High Resolution Display, Durable Design

Industrial HMI all-in-one touch display for Raspberry Pi 5, adopts toughened glass panel



Built-In Raspberry Pi 5 (4GB/8GB)

Based On Raspberry Pi 5 With Broadcom BCM2712 2.4GHz Quad-Core 64-Bit Arm Cortex-A76 CPU

Industrial HMI all-in-one touch display for Raspberry Pi 5, optional for Raspberry Pi 5

* the Raspberry Pi 5-4GB/8GB is optional.



5MP Front Camera

For Accurate Face Recognition, Ensuring Safety Every Moment

Industrial HMI all-in-one touch display for Raspberry Pi 5, with 5MP front camera



10-Point Capacitive Touch

Industrial HMI all-in-one touch display for Raspberry Pi 5, 10-Point capacitive touch
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical bonding, display well and dustproof



Adjustable Brightness Via Software


Excellent Heat Dissipation

Full Metal Enclosure With Efficient Heat Dissipation,
Pure Passive Cooling, No Fan Noise Worries

Industrial HMI all-in-one touch display for Raspberry Pi 5, excellent heat dissipation

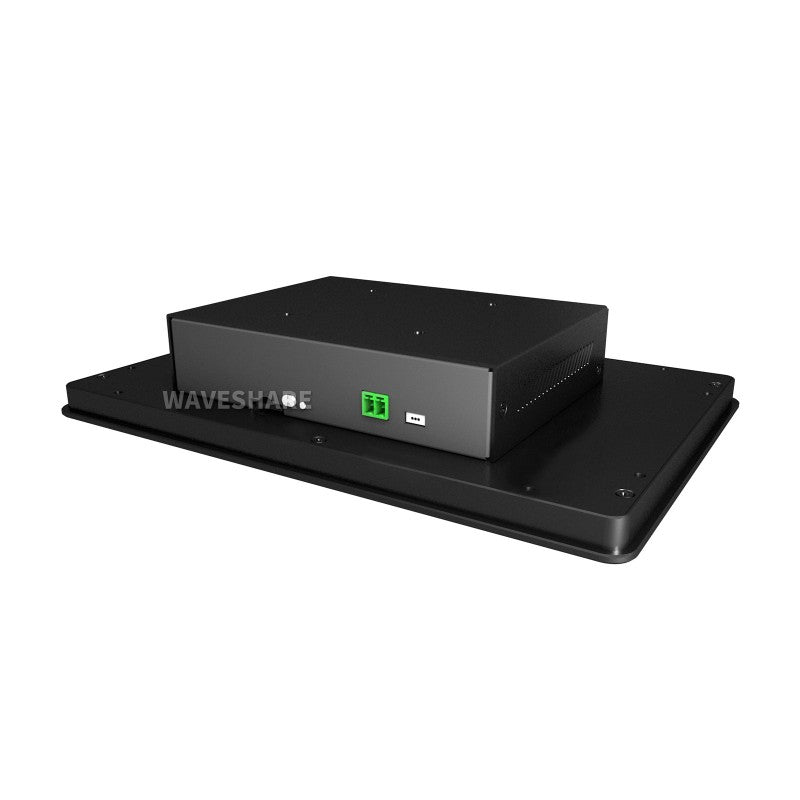

Two Power Supply Methods

Supports Power Supply Via Screw Terminal Or USB Type-C Port

Industrial HMI all-in-one touch display for Raspberry Pi 5, supports power supply via screw terminal or USB Type-C

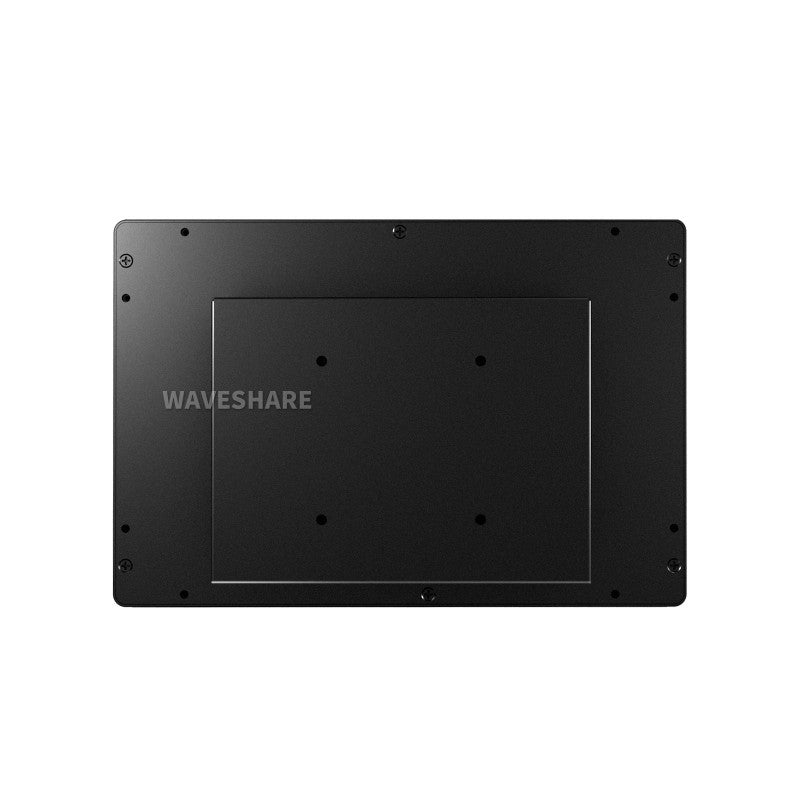

VESA Mounting Support

Easily Adaptable To Various Monitor Arms,
Enjoy A Flexible Installation Experience

Industrial HMI all-in-one touch display for Raspberry Pi 5, VESA mounting support

* Note: the monitor arm is NOT included, please refer to the package content for the detailed part list.

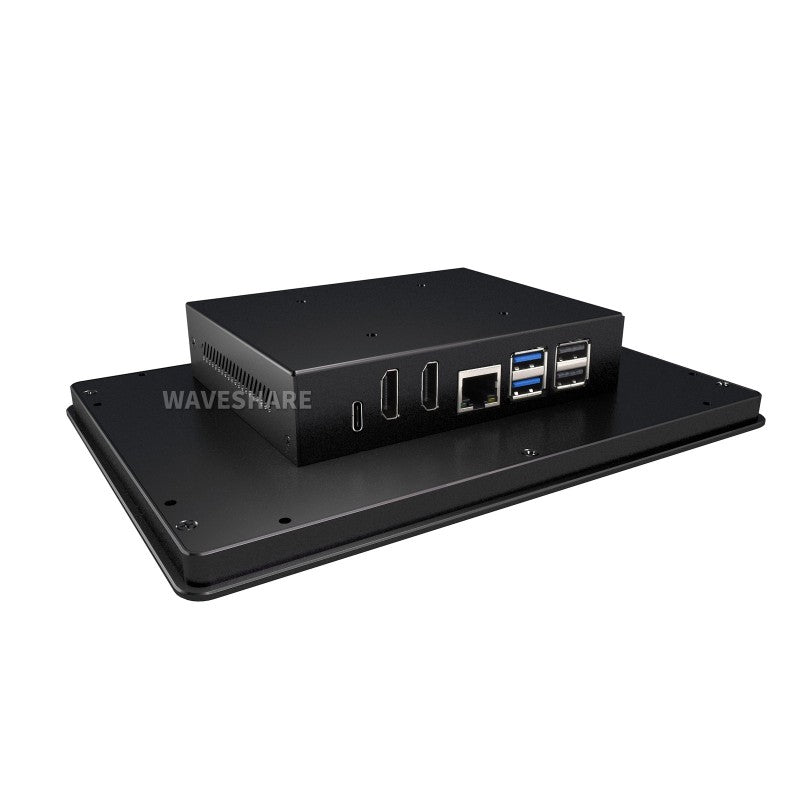

Interface

Industrial HMI all-in-one touch display for Raspberry Pi 5, interface introduction
  1. 5V Type-C power port
  2. Standard HDMI Interface x 2
  3. Gigabit Ethernet connector
  4. USB3.0 port x 2
  5. USB2.0 port x 2
  1. TF card slot
  2. Power button
  3. Power indicator
  4. 5V Power supply screw terminal (3.81mm pitch)
  5. Debugging serial port



Dimensions

8inch Version

PI5-HMI-080C, dimensions

10.1inch Version

PI5-HMI-101C, dimensions



Resources

Wiki: www.waveshare.com/wiki/PI5-HMI-080C





Package Contains:

PI5-HMI-080C

  1. 8inch PI5 all-in-one display (Pi5-4GB included) x1
  2. OPTIONS PSU-27W-USB-C x1
  3. Mounting buckle (4PCS) x1
  4. Screws pack x1

PI5-HMI-080C


PI5-HMI-080C-ACCE

  1. 8inch touch display x1
  2. Aluminum alloy heatsink x1
  3. Pi5-Camera-Cable-200mm x1
  4. Pi5-Display-Cable-200mm x1
  5. OPTIONS PSU-27W-USB-C x1
  6. Thermal pad 16*16*1mm x1
  7. TF card 64GB x1
  8. Mounting buckle (4PCS) x1
  9. Silicon button x1
  10. Screws pack x1

PI5-HMI-080C-ACCE


PI5-HMI-101C

  1. 10.1inch PI5 all-in-one display (Pi5-4GB included) x1
  2. OPTIONS PSU-27W-USB-C x1
  3. Mounting buckle (4PCS) x1
  4. Screws pack x1

PI5-HMI-101C


PI5-HMI-101C-ACCE

  1. 10.1inch touch display x1
  2. Aluminum alloy heatsink x1
  3. Pi5-Camera-Cable-200mm x1
  4. Pi5-Display-Cable-200mm x1
  5. OPTIONS PSU-27W-USB-C x1
  6. Thermal pad 16*16*1mm x1
  7. TF card 64GB x1
  8. Mounting buckle (4PCS) x1
  9. Silicon button x1
  10. Screws pack x1

PI5-HMI-101C-ACCE
