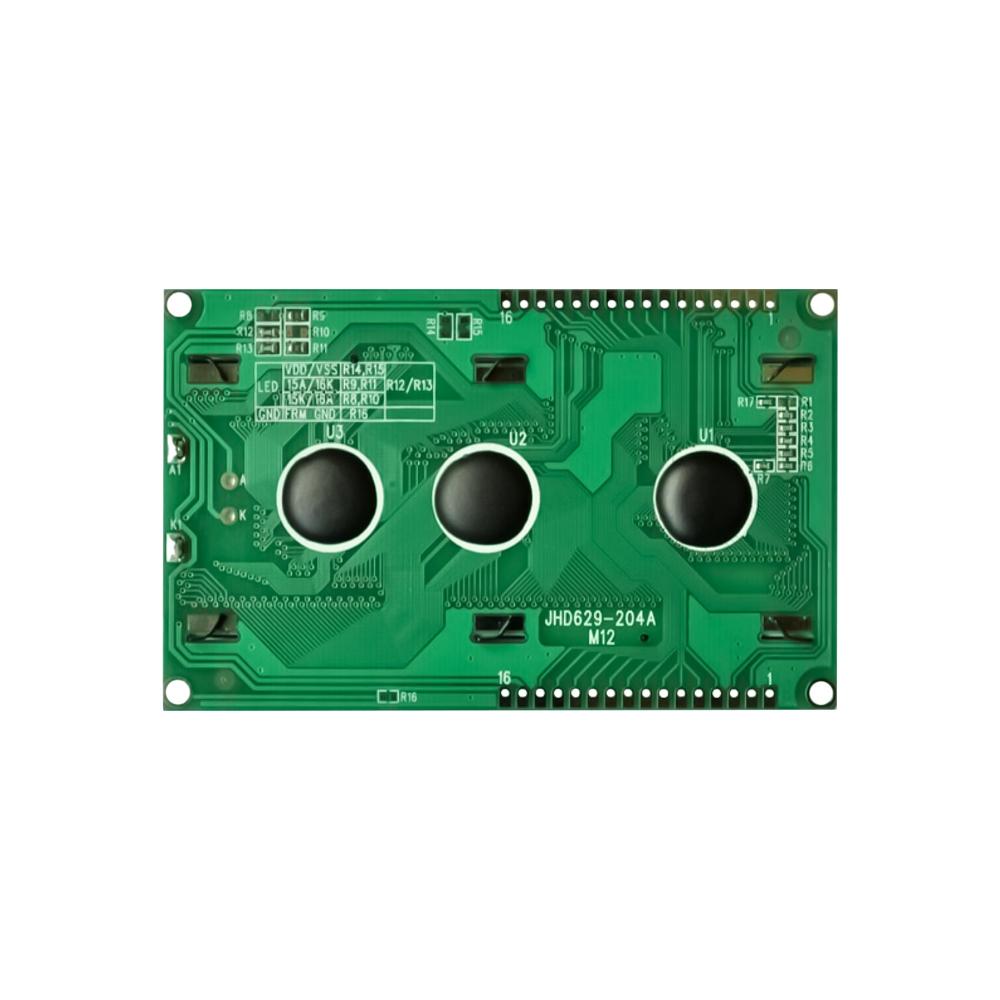

Original JHD 20×4 2004 character LCD Display Green Color

Original JHD 20×4 2004 character LCD Display Green Color

First Come First Serve Offer (T&C Apply )

599.00
799.00 599.00
Sale Sold out
Shipping calculated at checkout.
The Original JHD 20×4 Character LCD Display with green Backlight is an efficient and cost-effective choice for adding visual output to your Arduino or microcontroller-based projects. With a layout of 20 characters by 4 lines, this display offers a spacious and organized way to show data, making it perfect for projects requiring detailed outputs.
Featuring white text on a vivid green background, it delivers high contrast and excellent readability, ensuring clarity in various lighting conditions. Designed with a parallel interface, this display is simple to connect and highly compatible with Arduino and other microcontroller platforms.
The LCD is ideal for showing a range of data, such as text messages, numerical values from sensors (e.g., temperature, pressure), or system cycle counts. Its versatility, ease of use, and reliable design make it a fantastic choice for both beginner and advanced electronics projects.

Features:

Display Layout: 20 characters wide, 4 rows, offering ample space for detailed data and text display.

Text and Background: Black text on a bright green background ensures high contrast and excellent readability.

Backlight: Includes a single LED backlight that can be dimmed using a resistor or PWM for adjustable brightness.

Easy Control: Requires only 6 digital lines for operation, compatible with analog or digital pins on microcontrollers.

Microcontroller Compatibility: Works seamlessly with Arduino, STM32, PIC, AVR, and other platforms.

Flexible Communication: Supports both 4-bit and 8-bit parallel communication modes.

Energy Efficient: Low power consumption, making it ideal for portable or battery-operated projects.

Durable and Reliable: Built for long-term use, suitable for a variety of environments and applications.

Technical Details

  • Model Type: Original JHD LCD
  • Display: 20×4 Character
  • Backlight Color: green
  • Character Size: 2.95×4.75
  • Driver: 01 to 16
  • LCD: STN green black
  • Length (mm): 98
  • Width (mm): 60
  • Height (mm): 14
  • Weight (g): 75

Applications:

  • Display sensor data and system status in Arduino projects.
  • Show temperature, humidity, and time in smart home systems.
  • Monitor environmental data in industrial applications.
  • Provide robot status and sensor feedback in robotics.
  • Demonstrate microcontroller interfacing in educational kits.
  • Serve as a control panel interface for industrial systems.
  • Display experimental data in laboratory setups.
  • Show time and date in clock applications.
  • Display timers, countdowns, and cycle counts in testing.
  • Use in embedded systems for user interfaces and feedback.

Physical Attributes of oled display module

  • Length (mm): 98
  • Width (mm): 60
  • Height (mm): 14
  • Weight (g): 75

Outline Drawing

Original JHD 20×4 character LCD Display with Blue Backlight

Package Includes

  • 1 x Original JHD 20×4 2004 character LCD Display Green Color
