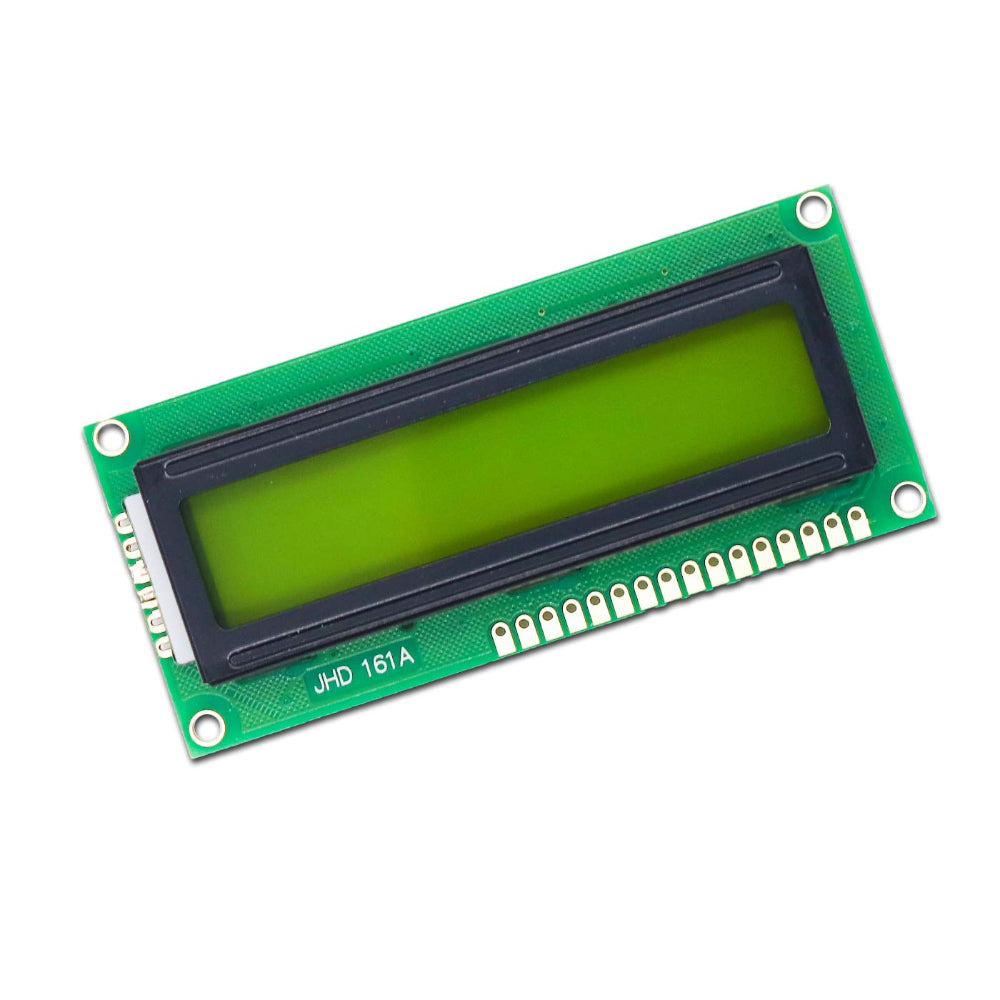

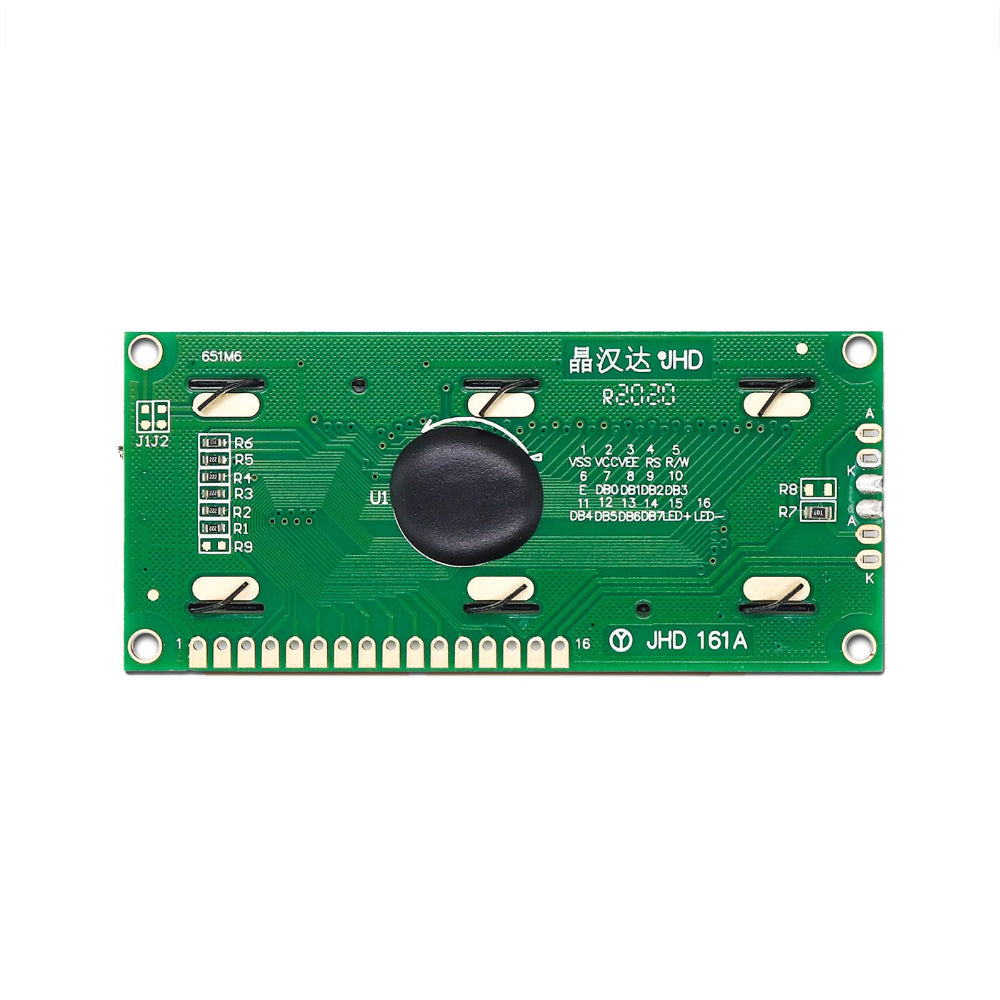

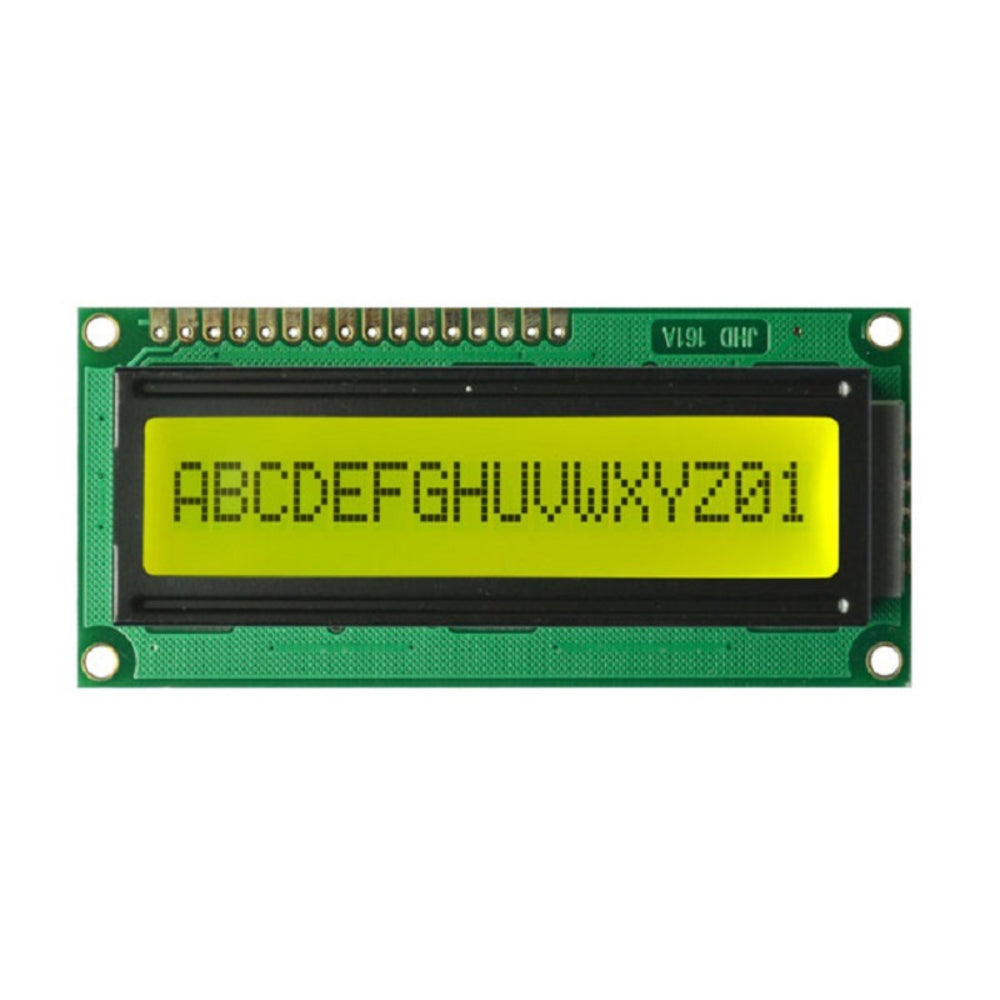

Original JHD 16x1 Character LCD Display With Green Backlight

Original JHD 16x1 Character LCD Display With Green Backlight

First Come First Serve Offer (T&C Apply )

199.00
299.00 199.00
Sale Sold out
Shipping calculated at checkout.
The LCD 16×1 Parallel LCD Display is an ideal solution for adding a simple yet effective visual output to your Arduino projects, especially when you need a compact display. This 16×1 White on RGB LCD Display features a clear and high-contrast display with black text on a Green background, providing excellent visibility. It is designed with a Green backlight that ensures better readability and a clean, modern look. The display is easy to interface with Arduino or other microcontrollers, making it a versatile addition to any project. The display can show simple text or numerical values, such as sensor readings (temperature, pressure) or even system cycle counts, making it suitable for a wide range of applications.

Features:

Display Size: 16 characters wide, 1 row, offering clear and concise output for simple data.

High Contrast: White text on a Green background for excellent readability and visual appeal.

Adjustable Backlight: Single LED backlight included, which can be dimmed using a resistor or PWM for customized brightness.

Minimal Pin Usage: Can be fully controlled using only 6 digital lines, compatible with both analog and digital pins.

Technical Details

  • Model Type: Original JHD LCD
  • Display: 16×1 Character
  • Backlight Color: Green
  • VA: 64.5×14.5
  • Controller: SPLC780D
  • Character: 3.20×6.35
  • Driver: 1 to 16
  • LCD: STN Green Negative
  • Length (mm): 80
  • Width (mm): 36
  • Height (mm): 14.5
  • Weight (g): 32

Applications:

  • Ideal for displaying simple text, system messages, or sensor data in Arduino-based projects
  • Perfect for projects that require a compact display for real-time monitoring, such as temperature or humidity readings
  • Suitable for use in embedded systems, providing user interfaces or status updates for automation projects
  • Great for educational projects, allowing students to learn and experiment with displays in electronics
  • Used in process control systems to show the status of processes or cycles in real-time
  • Ideal for displaying user inputs, such as text or numeric values, in small-scale devices or gadgets

Physical Attributes of oled display module

  • Length (mm): 80
  • Width (mm): 36
  • Height (mm): 14.5
  • Weight (g): 32

Outline Drawing

Original JHD 16×1 Character LCD Display With Blue Backlight

Package Includes

  • 1 x Original JHD 16×1 Character LCD Display With Green Backlight
