Original High Torque and Performance Full Metal Digital Servo Motor 90 Degree

Original High Torque and Performance Full Metal Digital Servo Motor 90 Degree

First Come First Serve Offer (T&C Apply )

1,079.00
1,729.00 1,079.00
Sale Sold out
Shipping calculated at checkout.

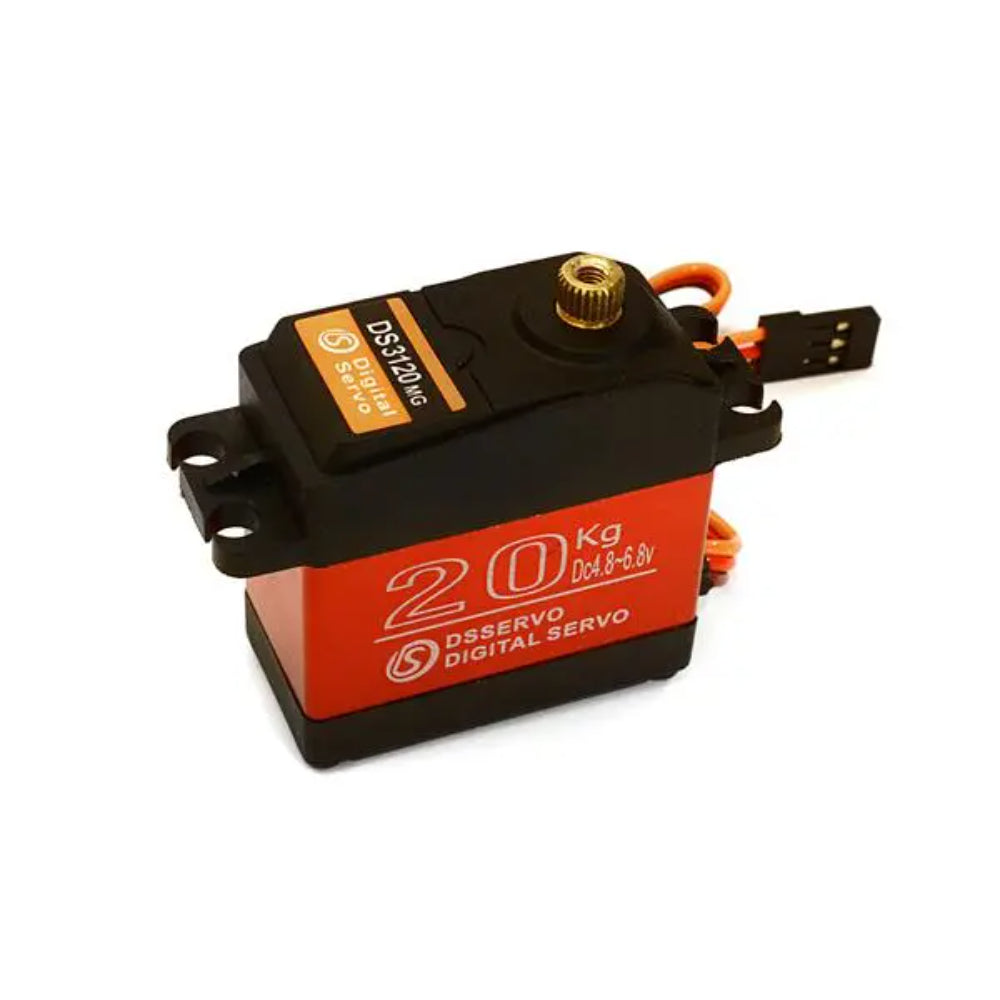

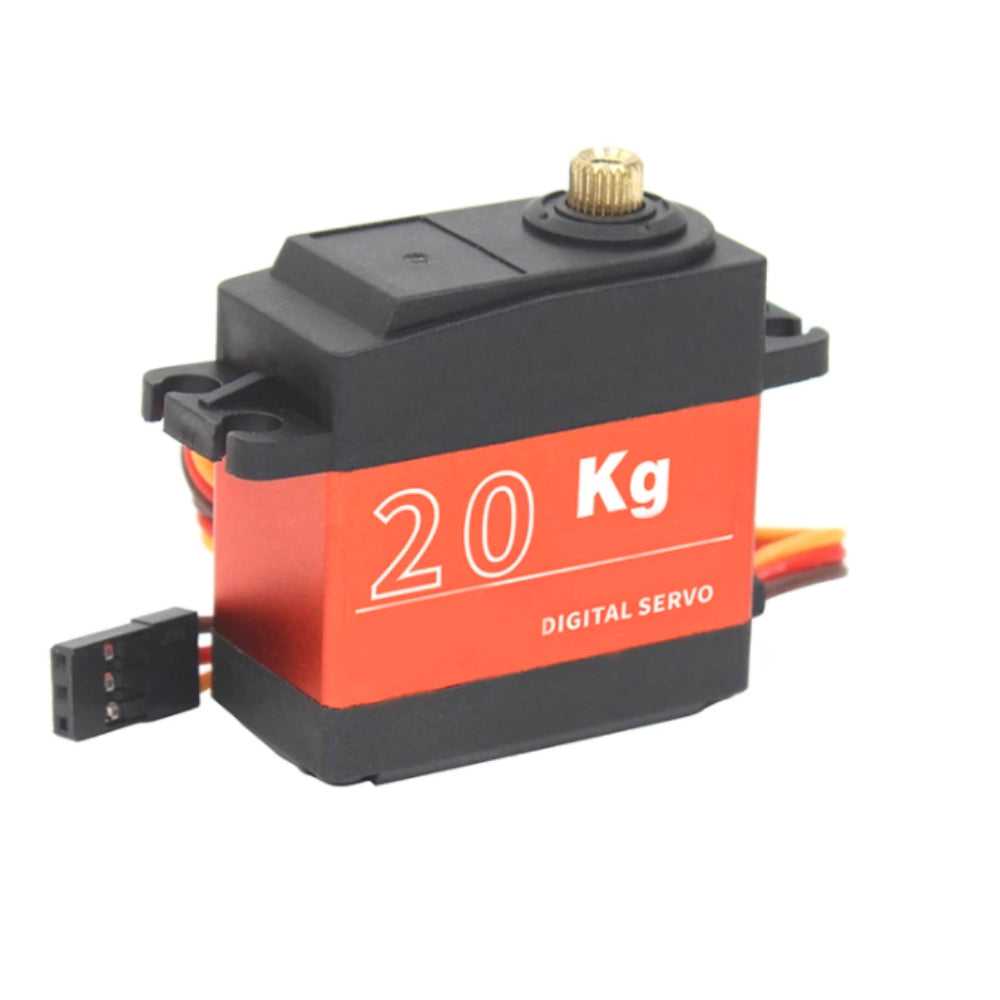

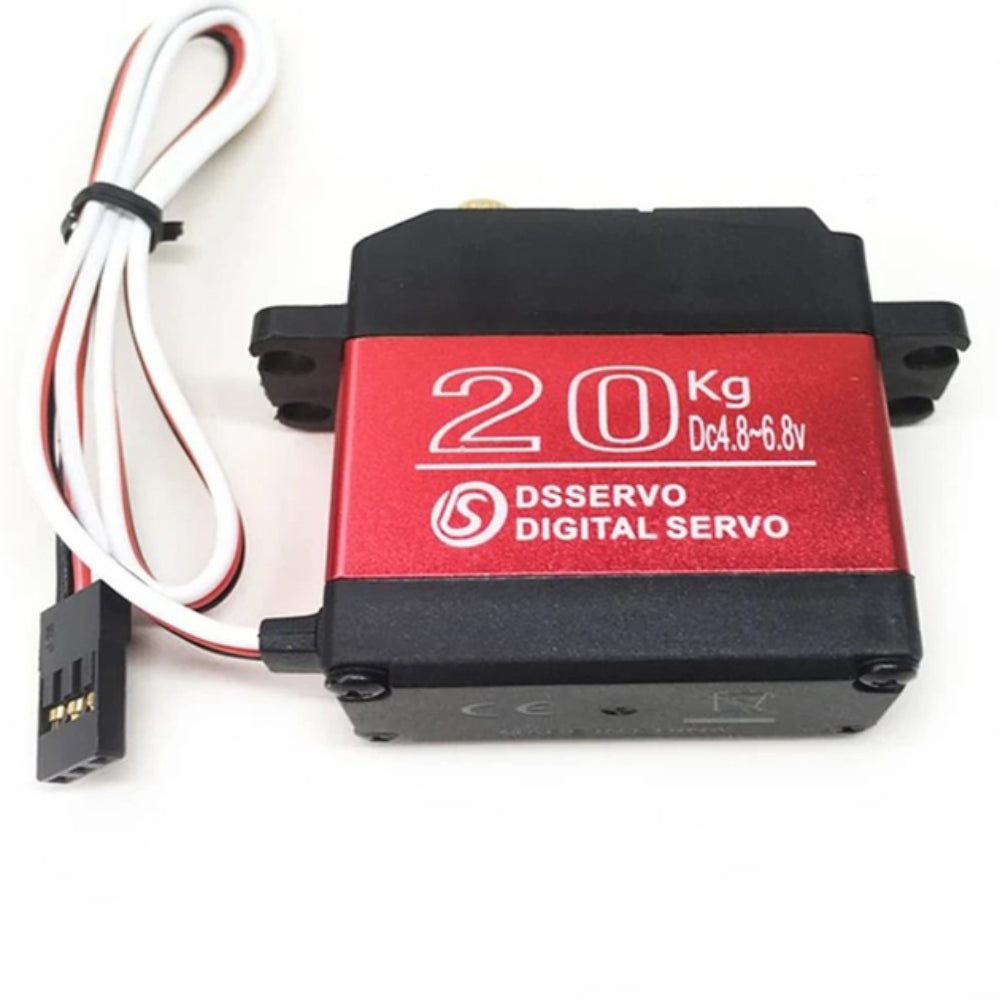

The DS3120 20KG is a high-torque, full-metal digital servo motor designed for precision and durability. Offering a maximum torque of 20kg-cm at 6.0V, it is ideal for heavy-duty applications such as RC vehicles, robotics, and industrial systems. It is equipped with full metal gears and provides exceptional durability and smooth operation under demanding conditions. The servo features a digital control system for accurate positioning and reduced jitter. It suits various motion requirements with a rotation range of 180° and adjustable endpoints. Its coreless motor ensures high speed and efficiency, while the robust metal housing offers excellent heat resistance and protection. Compact and reliable, the DS3120 20KG is perfect for projects that demand both power and precision.

Features:

High Torque Output: Designed to handle heavy loads with ease, providing powerful performance for a wide range of demanding tasks.

Full Metal Construction: The robust all-metal housing and gears ensure durability, longevity, and resistance to wear and tear, even in challenging environments.

Digital Control Technology: Advanced digital circuitry guarantees precise position control, fast response times, and reduced jitter, perfect for high-precision applications.

90-Degree Rotational Range: Offers smooth and accurate movement within a 90-degree arc, ideal for applications that require precise angular positioning.

Advantages:

High Torque Capability: Can handle heavy loads with ease, making it suitable for demanding applications like robotics, industrial automation, and RC vehicles.

Durable Full-Metal Construction: The metal casing and gears provide exceptional durability and resistance to wear, ensuring long-term reliability even under challenging conditions.

Precision and Accuracy: Advanced digital control technology delivers precise position control and smooth operation, making it ideal for tasks requiring exact angular movements.

Mechanical Specification:

  • Size: 40x20x40.5mm (1.58x0.79x1.60inch)
  • Weight: 83g±2G
  • Limit angle: 90°
  • Connector Cable: 320mm ± 5mm

Electrical Specification

  • Item: DS3120 20KG Large Torque Digital Servo
  • Stalling Torque(4.8V): 18.2kg/cm
  • Stalling Torque(6V): 20 kg/cm
  • Stop torque (7.2V): 22.3kg/cm
  • Speed: 0.18sec/60°(4.8V)/0.16sec/60°(6V)
  • Operating voltage: 4 .8~7.2 volts DC
  • Deadband: 3 μs
  • Motor Type: DC Motor
  • Gear Type: Metal
  • Maximum Frequency: 500-2500us

Applications

  • Robotics
  • Remote-Controlled Vehicles
  • Automation Systems
  • Camera Stabilization
  • Mechanical Systems
  • Education and Hobby Projects
  • Aerospace Applications
  • Medical Devices
  • UAV

Motor Outline Drawing

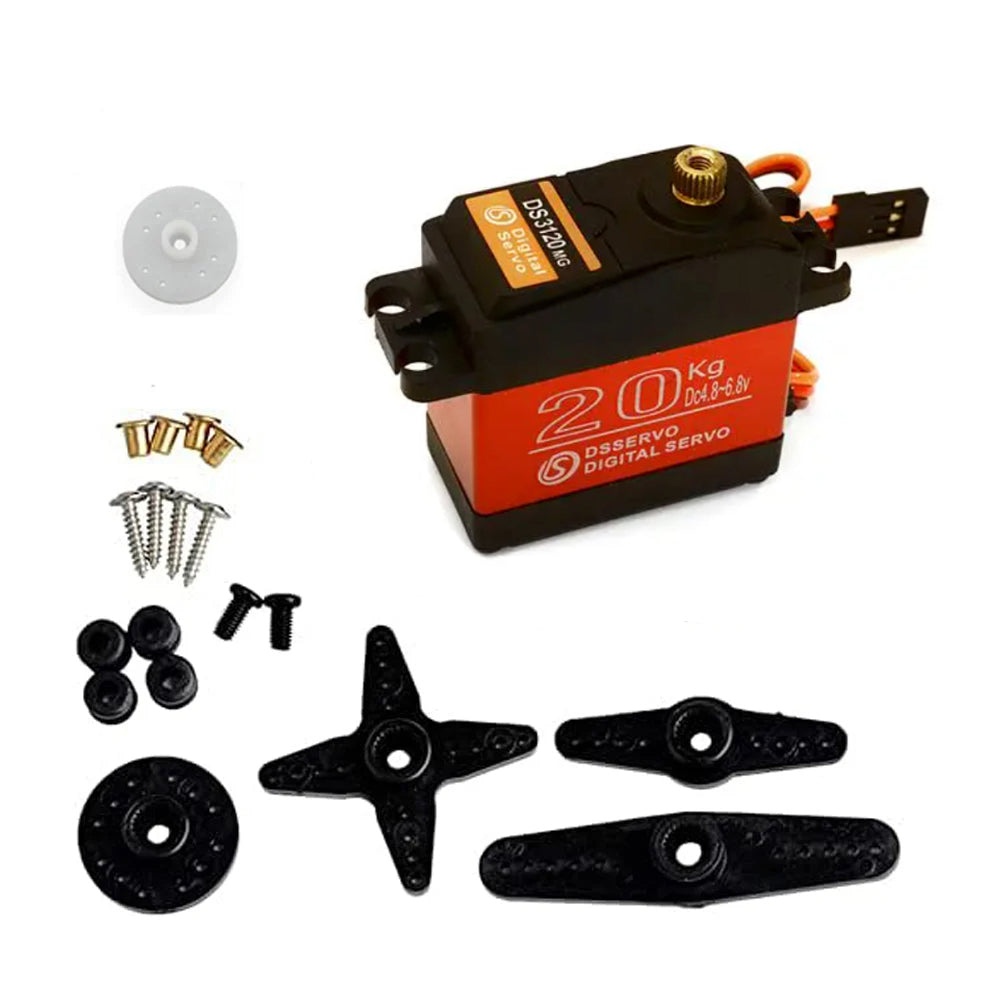

Package Includes

  • 1 x DS Servo 20kg DS3120 90 Degree
  • 1 x Accessories Set
