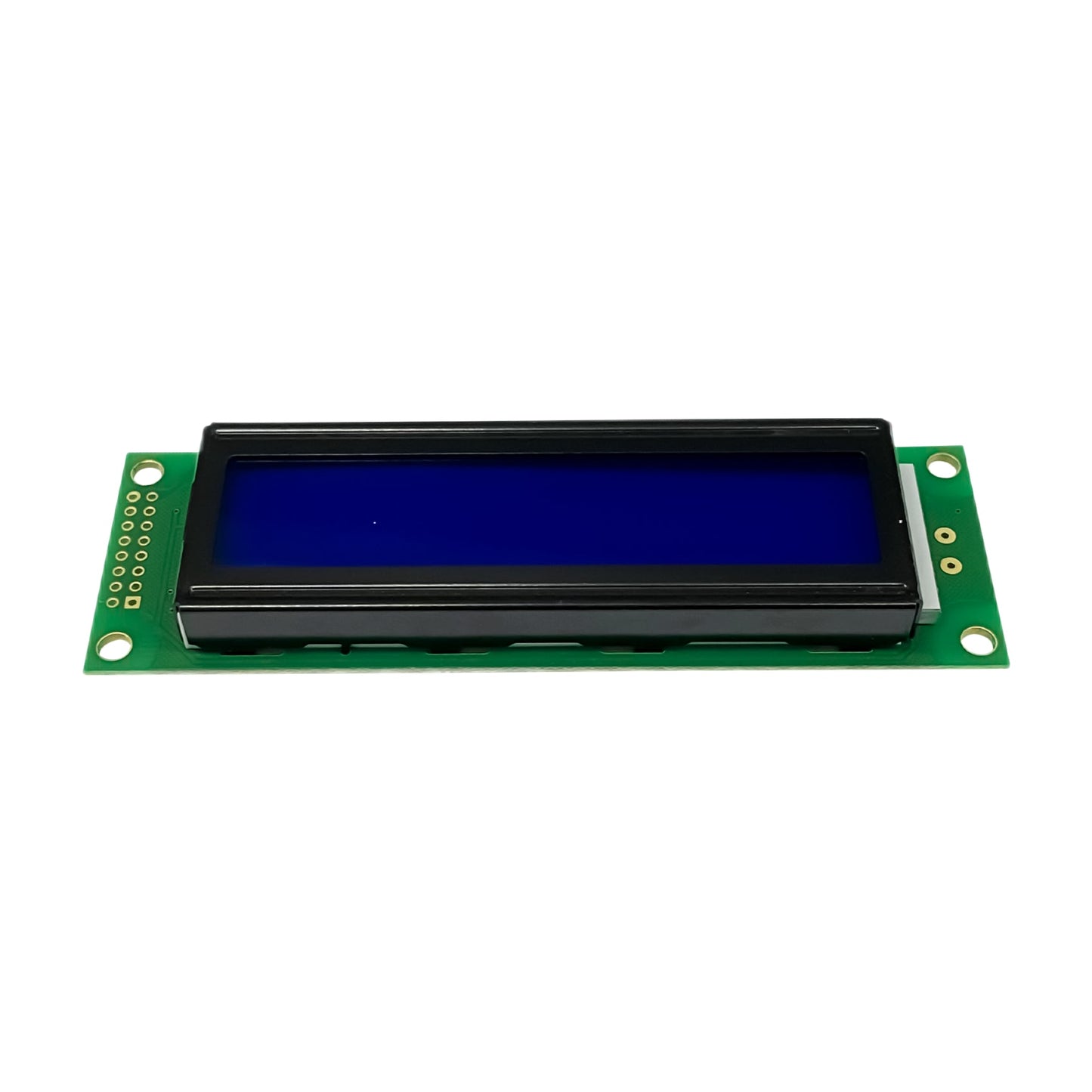

Original 20X2 2002 JHD Character LCD Display Blue Color

Original 20X2 2002 JHD Character LCD Display Blue Color

First Come First Serve Offer (T&C Apply )

499.00
599.00 499.00
Sale Sold out
Shipping calculated at checkout.
The Original JHD 20×2 Character LCD Display with Blue Backlight is a reliable and cost-effective solution for adding visual output to your Arduino or microcontroller projects. This display features a 20-character by 2-line layout, making it suitable for applications requiring a compact yet informative display.
With black text on a vibrant Blue background, it ensures excellent readability and contrast, even in various lighting conditions. The display is designed with a parallel interface, making it simple to connect and control with Arduino or other microcontroller platforms.
Its built-in Blue white LED backlight enhances visibility and can display a wide range of information, including simple text, sensor data (like temperature or pressure), or operational data such as the number of cycles performed by a system. This display is ideal for projects where clarity, reliability, and ease of integration are essential.

Features:

Display Layout: 20 characters wide, 2 rows, providing ample space for text and data display.

Text and Background: Black text on a vibrant Blue background for high visibility and contrast.

Backlight: Includes a single LED backlight, adjustable with a resistor or PWM for customizable brightness.

Easy Control: Operates with only 6 digital lines, compatible with any analog or digital pins.

Microcontroller Compatibility: Effortlessly interfaces with Arduino, STM32, PIC, AVR, and other microcontroller platforms.

Versatile Interface: Supports 4-bit and 8-bit parallel communication for flexible integration.

Power Efficiency: Low power consumption, making it suitable for energy-sensitive and portable applications.

Durable Design: Reliable and robust, ideal for various environments and long-term use.

Technical Details

  • Model Type: Original JHD LCD
  • Display: 20×2 Character
  • Backlight Color: Blue
  • VA: 91.6×18.6
  • Controller: SPLC780D
  • Character Size: 3.20×5.55
  • Driver: 1 to 16
  • LCD: STN Blue white
  • Length (mm): 116
  • Width (mm): 37
  • Height (mm): 13.5
  • Weight (g): 55

Applications:

  • Arduino Projects: Display sensor data, system status, or text messages in DIY electronics.
  • Home Automation: Show temperature, alerts, and system settings in smart home systems.
  • Industrial Monitoring: Monitor environmental data like temperature, pressure, or process status.
  • Robotics: Provide task status, sensor readings, or control feedback in robotic applications.
  • Educational Projects: Use in training kits to demonstrate microcontroller and LCD interfacing.
  • Control Panels: Integrate as an HMI for real-time feedback and operational data.
  • Digital Clocks: Display time and date in real-time clock applications.
  • Scientific Experiments: Show experimental data like measurements or progress status.
  • Timers and Counters: Display elapsed time, countdowns, or cycle counts in systems.
  • Embedded Systems: Use in compact devices requiring text-based user interfaces.

Physical Attributes of oled display module

  • Length (mm): 116
  • Width (mm): 37
  • Height (mm): 13.5
  • Weight (g): 55

Outline Drawing

Original JHD 20×2 character LCD Display with Yellow Backlight

Package Includes

  • 1 x Original JHD 20×2 character LCD Display with Blue Backlight
