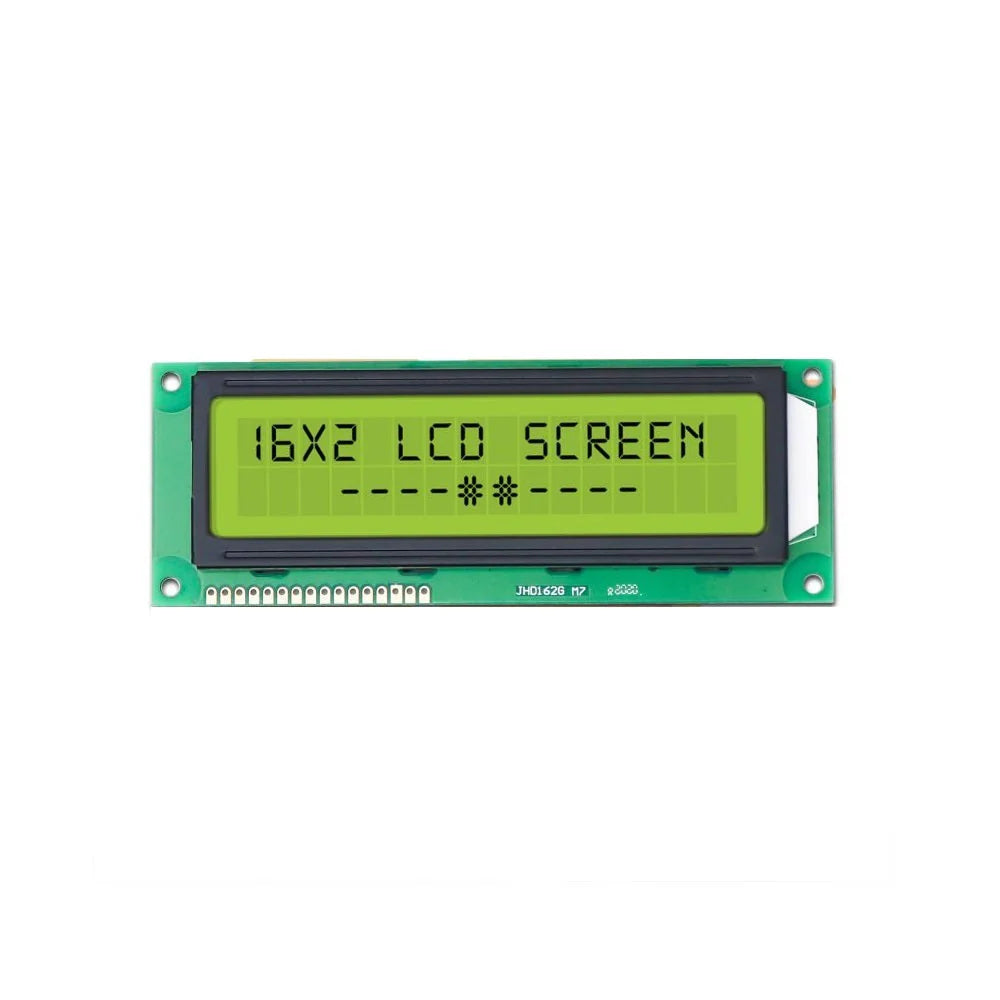

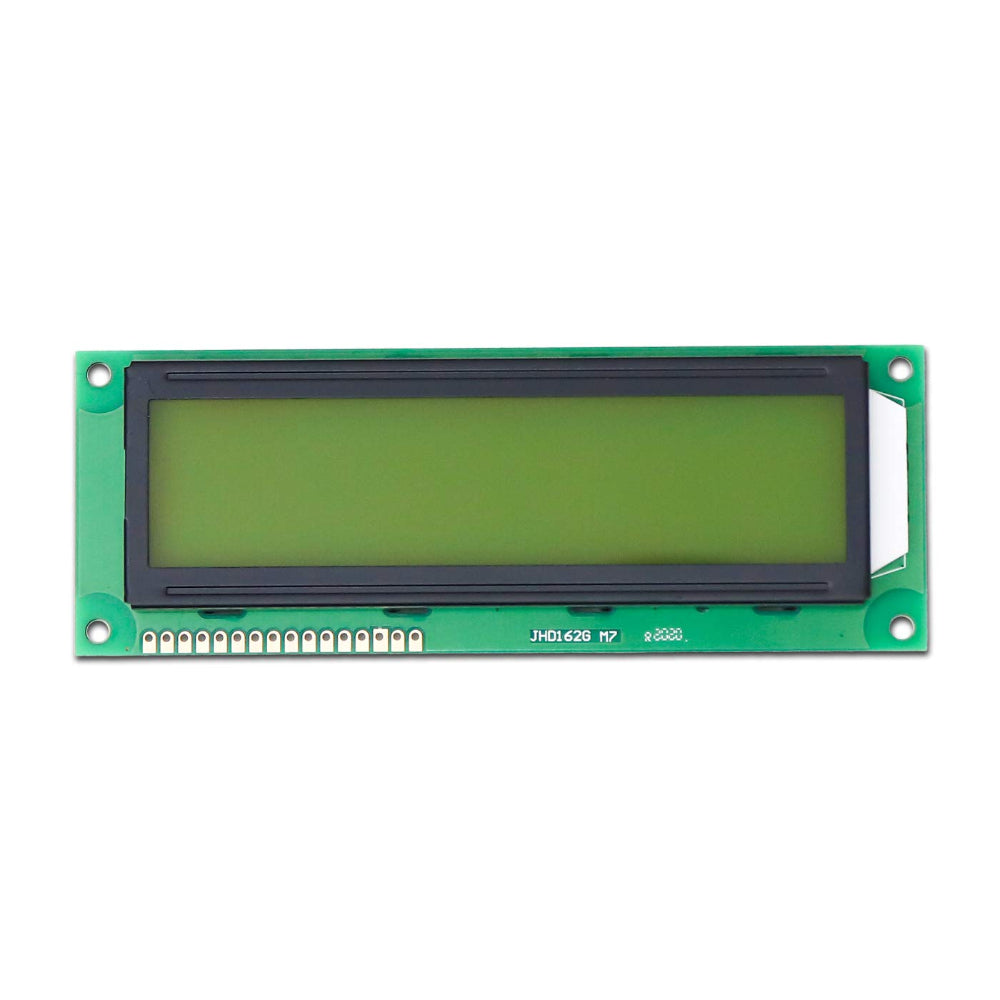

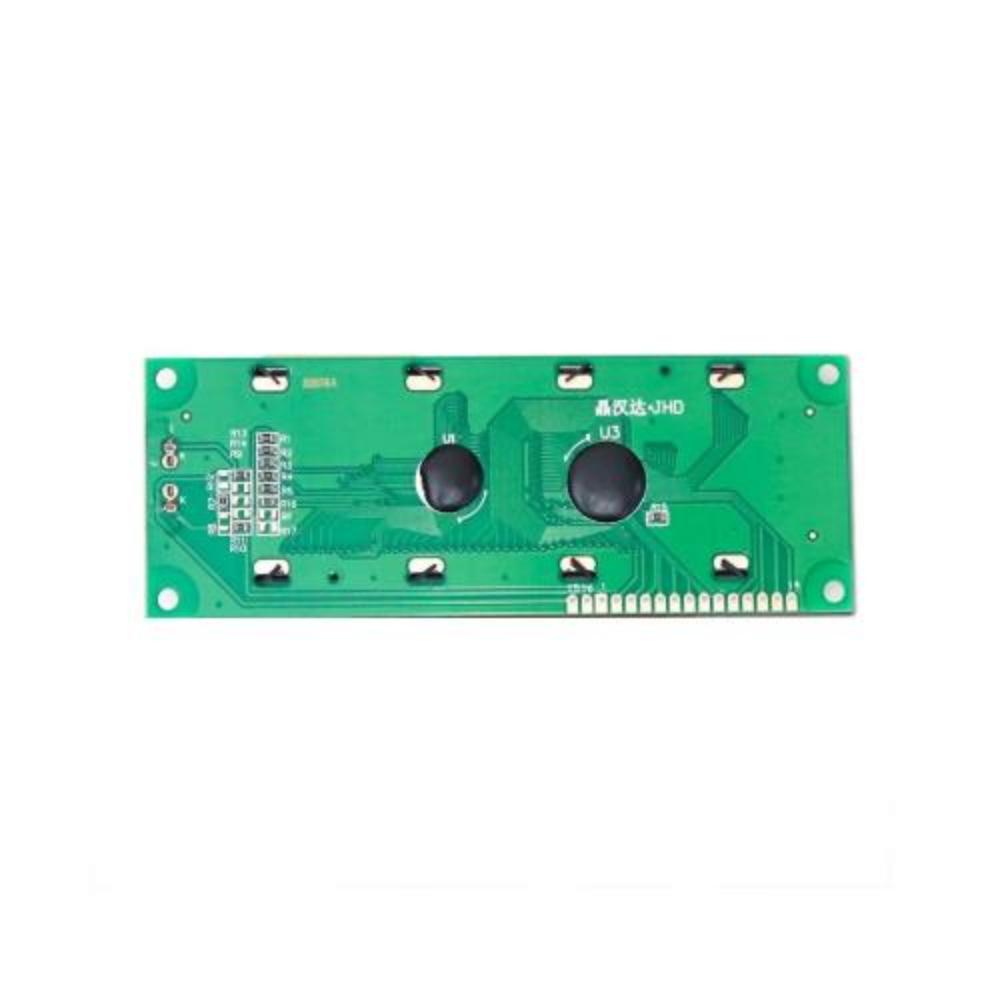

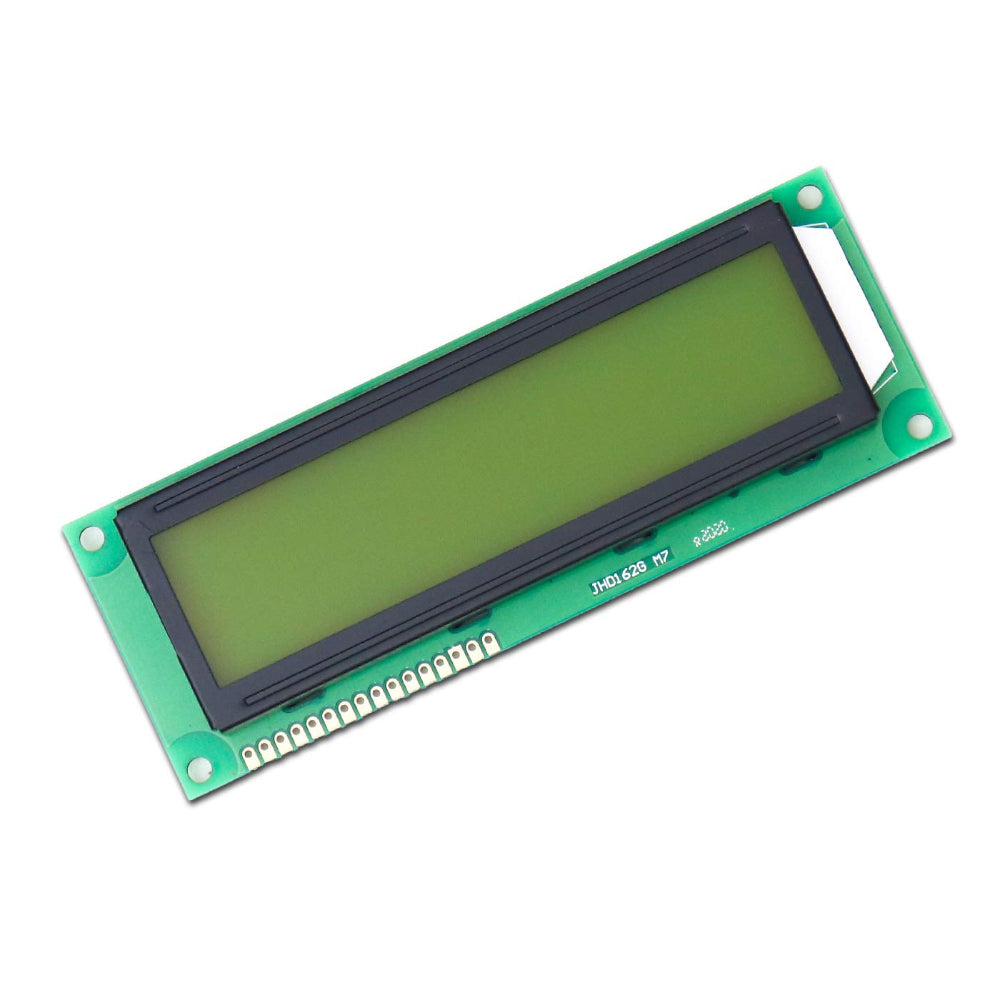

Original 16X2 JHD Jumbo Character LCD Display Green Color

Original 16X2 JHD Jumbo Character LCD Display Green Color

First Come First Serve Offer (T&C Apply )

449.00
599.00 449.00
Sale Sold out
Shipping calculated at checkout.
The 16x2 Jumbo LCD Display by JHD is a high-contrast alphanumeric display module, featuring a larger character size for improved readability. Built on the popular HD44780 display controller, it ensures seamless compatibility with most microcontroller platforms. This display offers a 16-character by 2-row layout, making it ideal for projects requiring clear and easily visible text output. Its widespread use means readily available libraries and support for integration across platforms like Arduino, AVR, PIC, and STM32. The module includes a backlight for enhanced visibility and supports both 4-bit and 8-bit parallel communication modes for flexible interfacing.

Features:

Display Layout: 16 characters wide, 2 rows for a total of 32 characters.

Text and Background: Black text on a vibrant Green background for excellent contrast and readability.

Backlight: Includes a single LED backlight, which can be dimmed using a resistor or PWM for adjustable brightness.

Easy Control: Operates with just 6 digital lines, compatible with analog or digital pins.

Versatile Interface: Supports both 4-bit and 8-bit parallel communication modes.

Microcontroller Compatibility: Works seamlessly with most platforms like Arduino, AVR, PIC, STM32, and more.

Power Efficiency: Low power consumption suitable for battery-operated projects.

Robust Design: Ideal for a wide range of applications requiring durable and clear displays.

Technical Details

  • Model Type: Original JHD LCD
  • Color of Display: Green
  • Color of Character: Black
  • Size: 16 x 2 (16 characters x 2 rows)
  • Input Voltage: +5V
  • Supply Current: 1.5mA
  • Board Dimensions: 23mm x 44mm (LxB)
  • Display Dimensions: 100mm x 24mm (LxB)
  • Weight (g): 66

Applications:

  • Electronic Equipment
  • Medical Equipment
  • Smart Homes
  • Fax Machines
  • Laser Printers
  • Industrial Test Equipment
  • Networking Equipment

Physical Attributes of oled display module

  • Board Dimensions: 23mm x 44mm (LxB)
  • Display Dimensions: 100mm x 24mm (LxB)
  • Weight (g): 66

Outline Drawing

Original 16X2 JHD Jumbo Character LCD Display Green Color

Package Includes

  • 1 x Original 16X2 JHD Jumbo Character LCD Display Green Color
