4mm PNP Inductive Proximity Sensor M12 DC6~36V (Unshielded)(Normally Open)

4mm PNP Inductive Proximity Sensor M12 DC6~36V (Unshielded)(Normally Open)

First Come First Serve Offer (T&C Apply )

234.22
299.00 234.22
Sale Sold out
Shipping calculated at checkout.

4mm PNP Inductive Proximity Sensor M12 DC6~36V (Unshielded)(Normally Open)

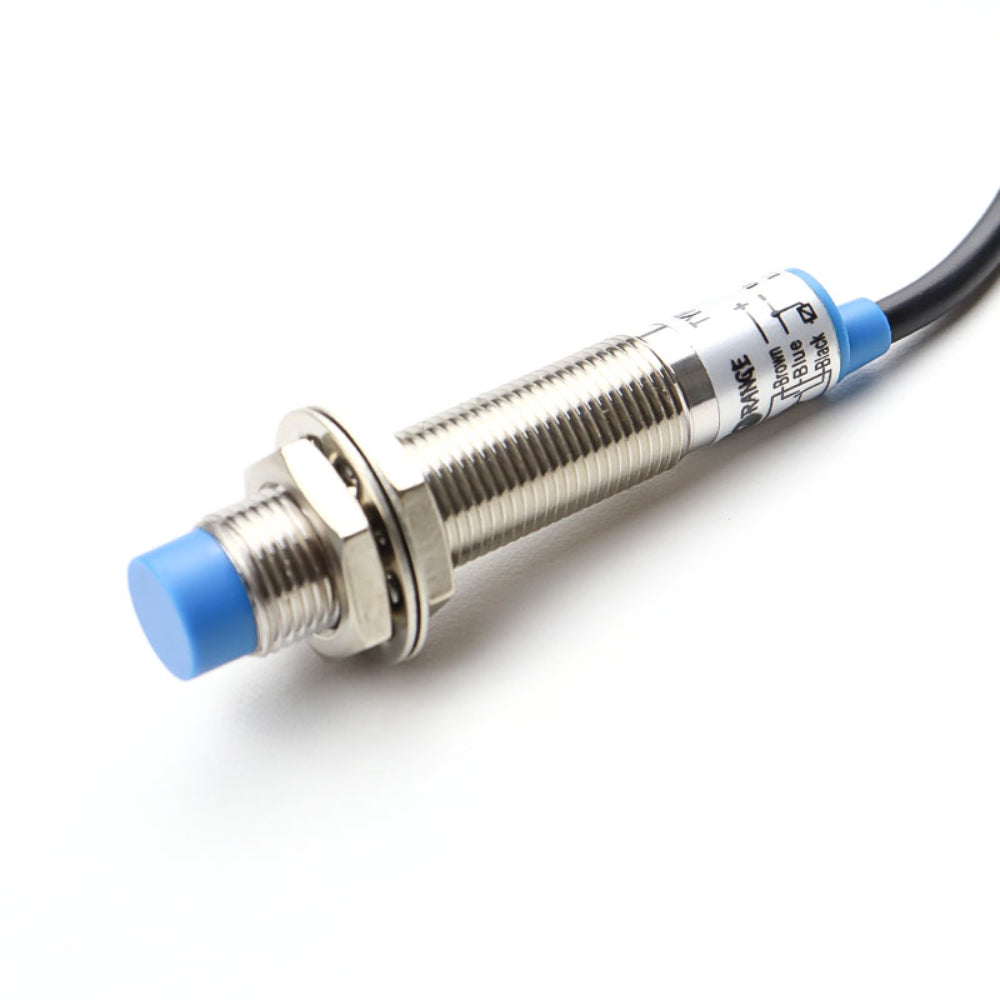

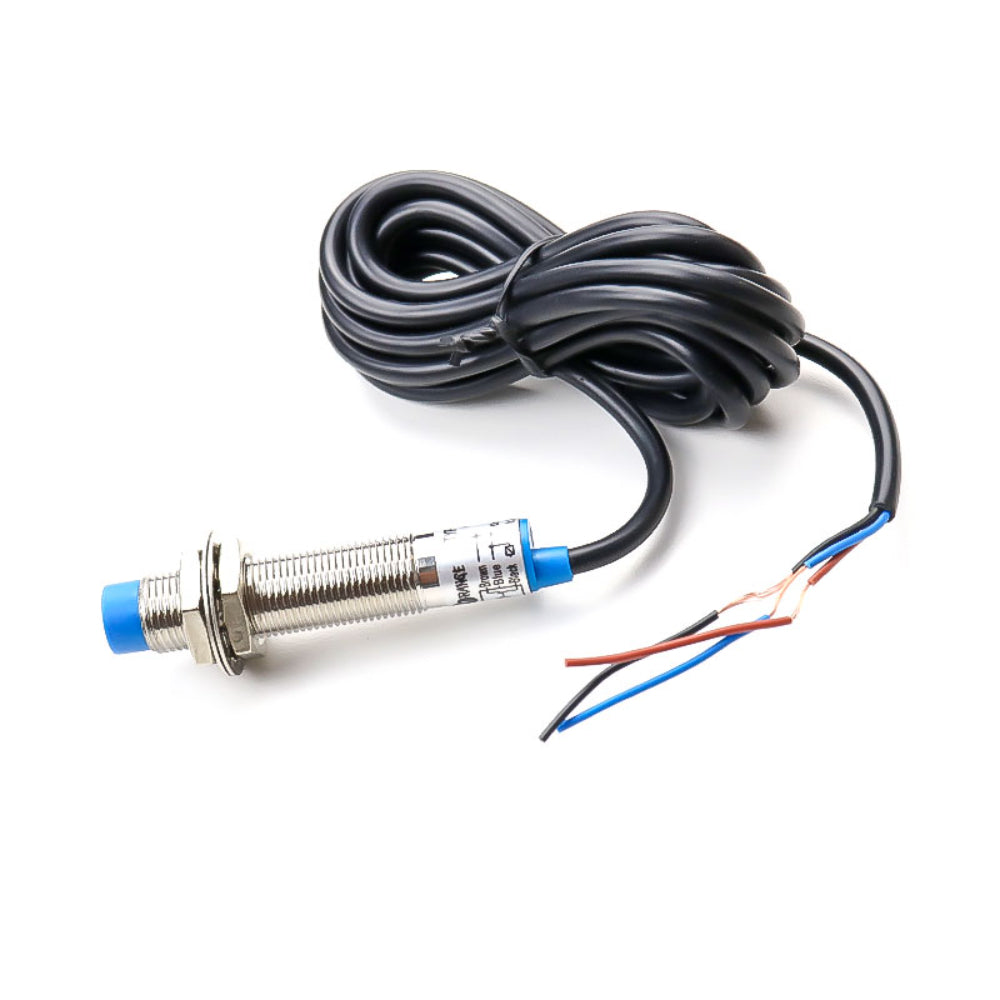

4mm PNP Inductive Proximity Sensor RM12 DC6~36V (Unshielded) is a brand new inductive proximity sensor that detects a metal object. Non-flush, or unshielded sensors, do not have the shield around the end of the sensor so the field can radiate from the face to the sides of the sensor in a larger pattern.

This M12 indicates a cylinder type whose diameter is 12mm and the length of that cylinder is 62mm. The operating voltage range is VDC 6~36V, but the nominal voltage is 30V with detecting distance of 4mm. The sensor has 3 wire NO (Normally open) type output with RED LED indicator.

The Inductive Proximity Sensor application:

Mine metallurgy.

Plastics, textile and Chemical Industry.

Light industry, tobacco, electric power, railway, and war industry.

Technical Details

  • Operating Voltage (VDC): 6 to 36
  • Detection Distance (mm): 4
  • Outer Thread Size: M12
  • Model: RM12~3004 PA
  • Object Type: Inductive
  • Output Type: PNP Normally Open Three-line
  • Installation Type: Non-Flush (Unshielded)
  • Max Output Current (mA): 200
  • Setting Distance (mm): 0 ~ 2.4
  • Insulation Resistance (MOhm): 50
  • Storage Temperature (°C): -30 to 80
  • Cable Dimensions: Ø4, 3-Wire, 2 Meter
  • Weight (g): 44

Feature

  • IP67 protection structure (IEC standard).
  • Compact volume.
  • High precision of repeated location.
  • Diversified exterior.
  • Good performance of anti-interference.
  • Many output forms.
  • High on-off frequency.
  • Wide voltage range.
  • Dustproof, vibration proof, waterproof, and oil proof.
  • With short-circuit protection and inverted connecting protection.
  • Long service life.

Physical Attributes

  • Cable Diamensions : Ø4, 3-Wire, 2 Meter
  • Weight (gm) : 44

Package Includes

  • 1 x 4mm PNP Inductive Proximity Sensor M12 DC6~36V (Unshielded)(Normally Open)
