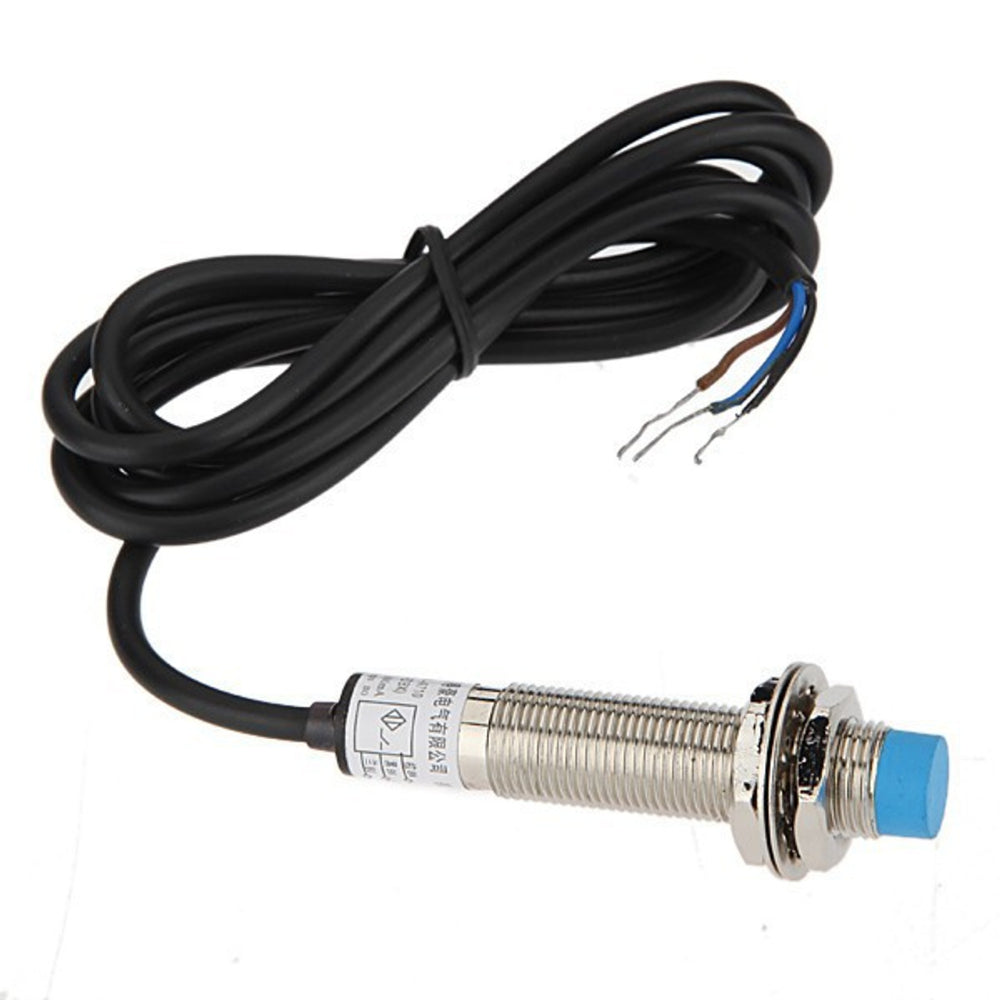

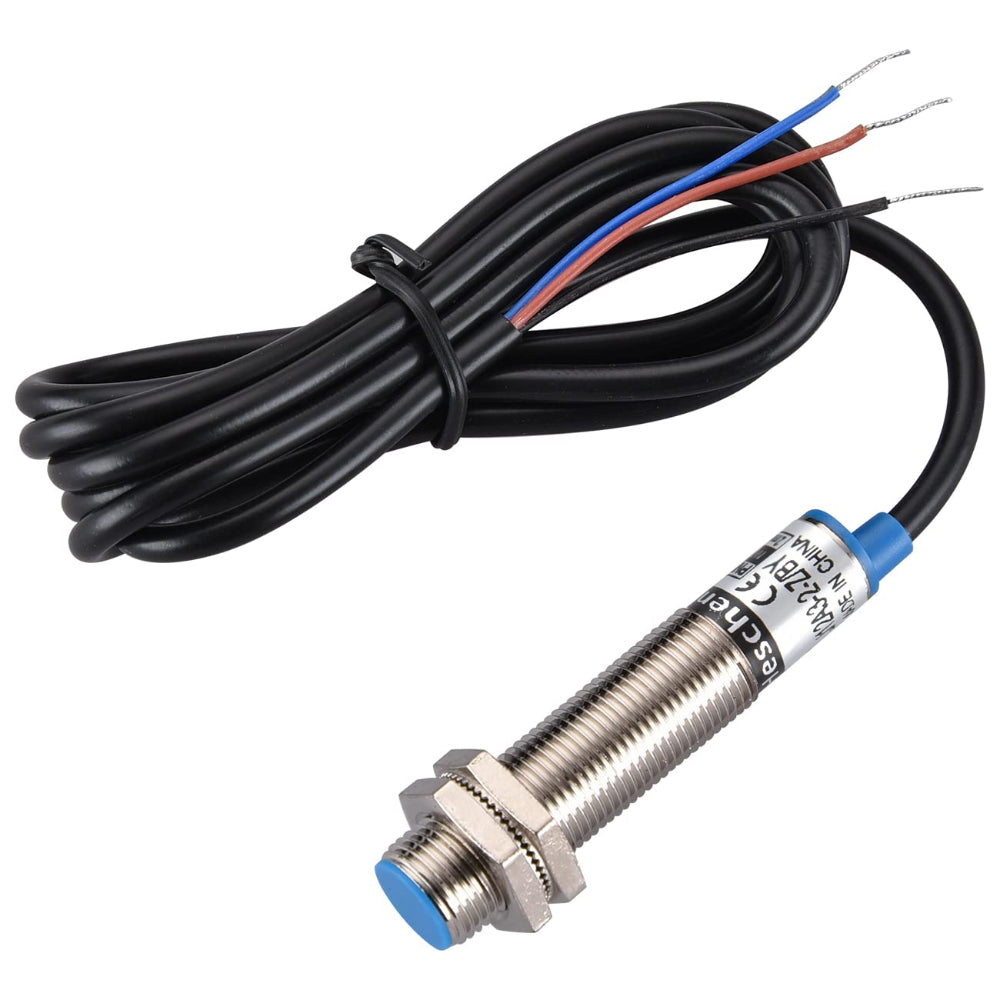

2mm PNP Inductive Proximity Sensor M12 DC6~36V (unshielded)(Normally Open)

2mm PNP Inductive Proximity Sensor M12 DC6~36V (unshielded)(Normally Open)

First Come First Serve Offer (T&C Apply )

269.00
429.00 269.00
Sale Sold out
Shipping calculated at checkout.

2mm NPN Inductive Proximity Sensor M12 DC6~36V (unshielded)(Normally Open)

2mm PNP Inductive Proximity Sensor RM12 DC6~36V (Shielded) is a brand new inductive proximity sensor that detects a metal object. Flush-style sensors actually have a shield that restricts the magnetic field so that it only radiates out of the face of the sensor.

This M12 indicates a cylinder type whose diameter is 12mm and cylinder length 57mm. The operating voltage range is VDC 6~36V, but the nominal voltage is 30V with detecting distance of 2mm. The sensor has 3 wire NO (Normally open) type output with RED LED indicator.

The Inductive Proximity Sensor application:

Mine metallurgy.
Plastics, textile and Chemical Industry.
Light industry, tobacco, electric power, railway, and war industry.

Technical Details

  • Operating Voltage (VDC): 6 to 36
  • Detection Distance (mm): 2
  • Outer Thread Size: M12
  • Model: RM12~3002 PA
  • Object Type: Inductive
  • Output Type: PNP Normally Open Three-line
  • Installation Type: Flush (Shielded)
  • Max Output Current (mA): 200
  • Setting Distance (mm): 0 ~ 1.4
  • Insulation Resistance (MOhm): 50
  • Storage Temperature (°C): -30 to 80
  • Cable Dimensions: Ø3.5, 3-Wire, 2 Meter
  • Weight (g): 55

Feature

  • IP67 protection structure (IEC standard)
  • Compact volume
  • High precision of repeated location
  • Diversified exterior
  • Good performance of anti-interference
  • Multiple output forms
  • High on-off frequency
  • Wide voltage range
  • Dustproof, vibration-proof, waterproof, and oil-proof
  • Short-circuit and inverted connection protection
  • Long service life

Applications :

  • Industrial Automation: Detects metal objects in conveyor systems, assembly lines, and automated machinery.
  • Precision Metal Detection: Ideal for sensing small ferrous and non-ferrous metal objects in manufacturing processes.
  • Robotics: Enables accurate positioning and motion control in robotic arms and automated systems.
  • CNC Machines: Identifies metal tools and workpieces in milling, lathe, and grinding machines.
  • Automotive Manufacturing: Used in vehicle assembly lines for detecting parts and ensuring correct alignment.
  • Security & Access Control: Integrated into automated gates, doors, and security systems for non-contact sensing.
  • Smart Warehousing: Assists in inventory management by detecting metallic storage bins and automated equipment.
  • Medical & Laboratory Equipment: Utilized in specialized applications for detecting metal components in precision instruments.

Physical Attributes

  • Cable Diamensions : Ø3.5, 3-Wire, 2 Meter
  • Weight (gm) : 55

Package Includes

  • 1 x 2mm PNP Inductive Proximity Sensor M12 DC6~36V (unshielded)(Normally Open)
