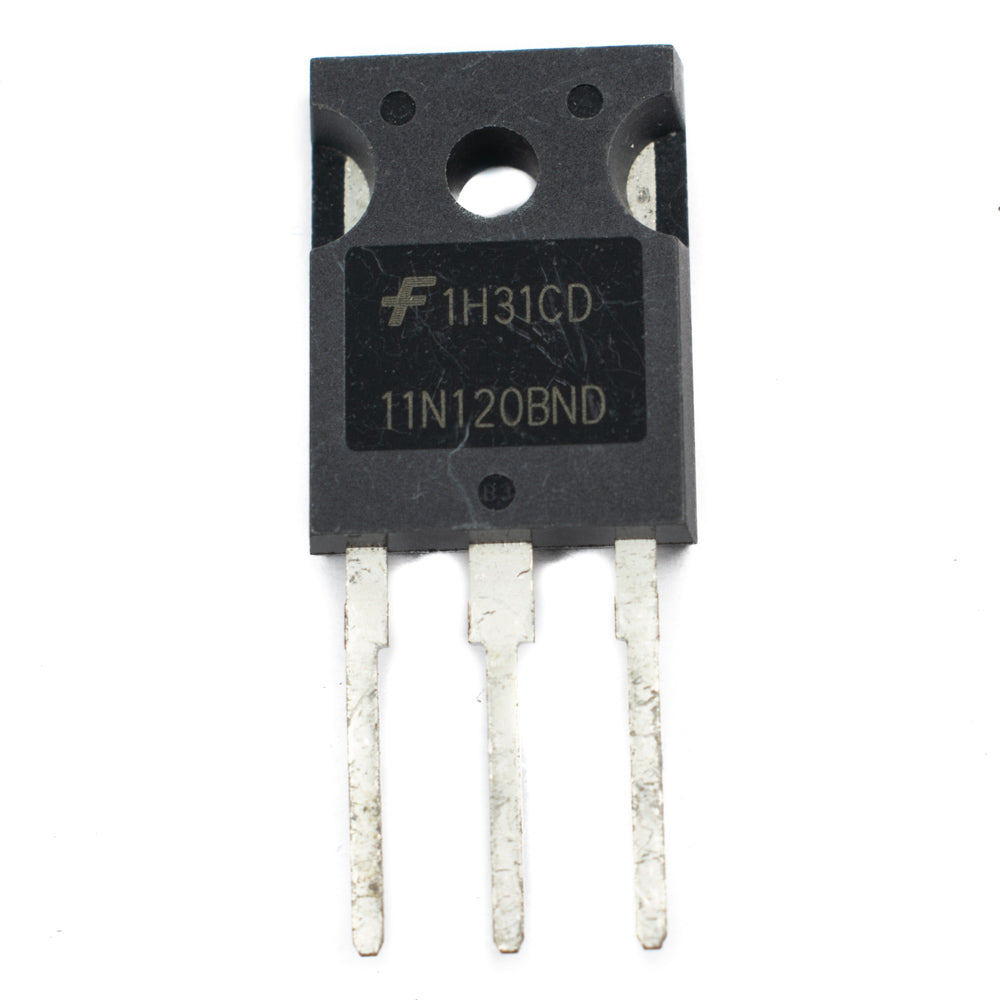

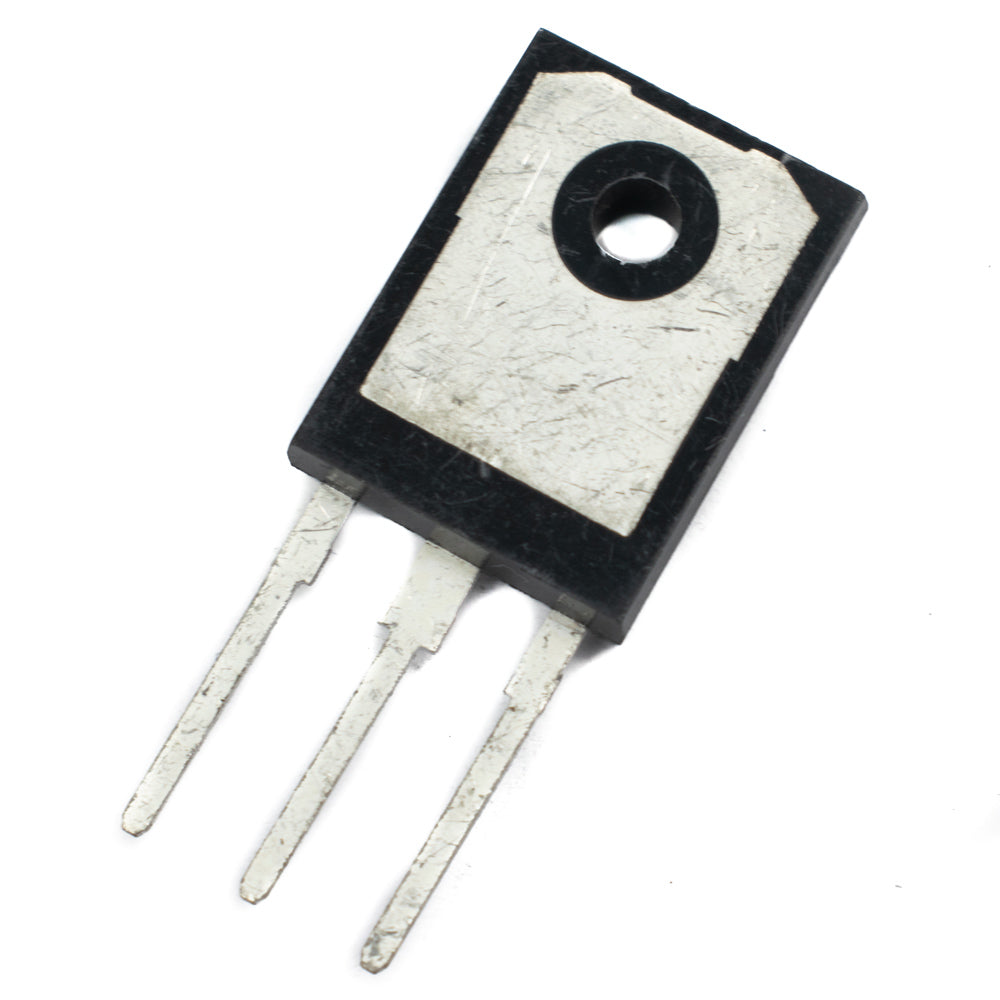

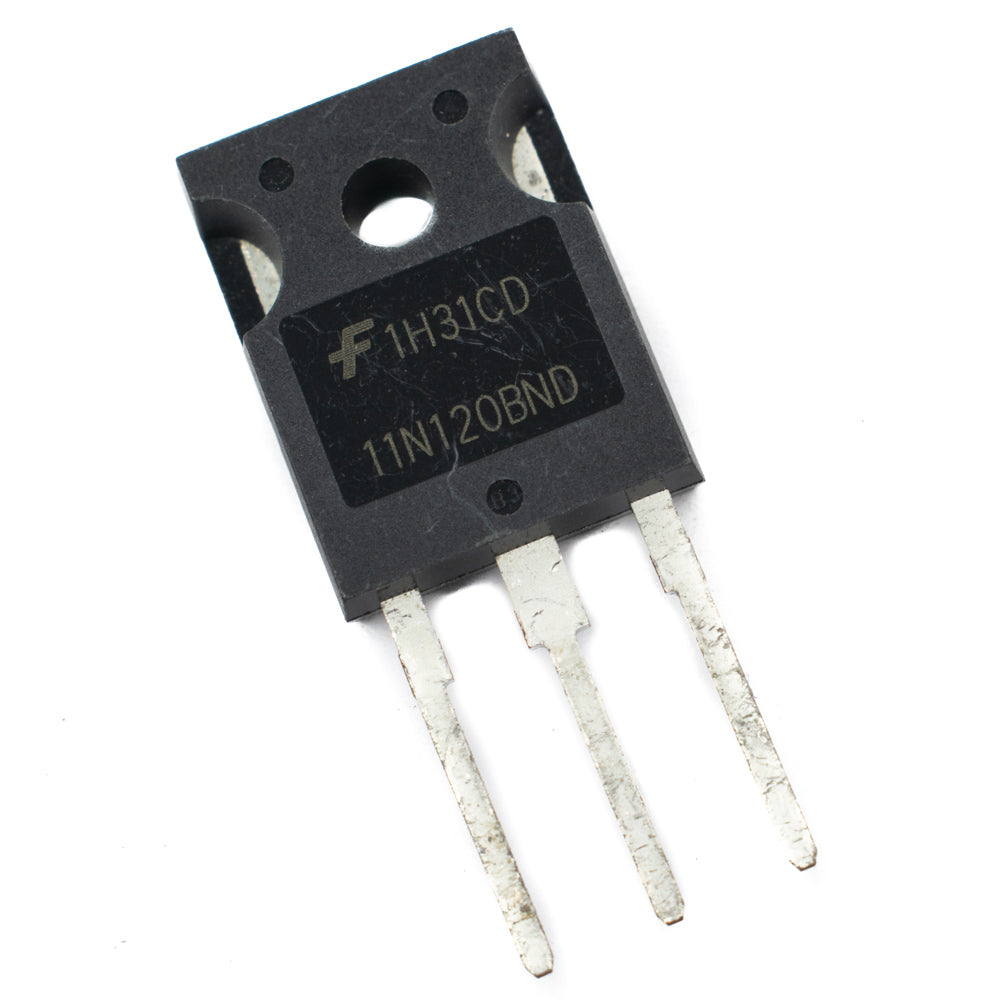

ONSEMI 11N120 1200V 43A NPT Series N-Channel IGBT with Anti-Parallel Hyperfast Diode

ONSEMI 11N120 1200V 43A NPT Series N-Channel IGBT with Anti-Parallel Hyperfast Diode

First Come First Serve Offer (T&C Apply )

2,095.65
0.00 2,095.65
Sale Sold out
Shipping calculated at checkout.

The 11N120 is a Non-Punch Through (NPT) IGBT design. This is a new member of the MOS gated high voltage switching IGBT family. IGBTs combine the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low onโˆ’state conduction loss of a bipolar transistor. The IGBT used is the development type TA49291. The Diode used is the development type TA49189. The IGBT is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors. Formerly Developmental Type TA49303.

Datasheet

Features

  • 43 A, 1200 V, TC = 25ยฐC
  • 1200 V Switching SOA Capability
  • Typical Fall Time: 340 ns at TJ = 150ยฐC
  • Short Circuit Rating
  • Low Conduction Loss
  • Thermal Impedance SPICE Model
  • This is Pbโˆ’Free Device
Specifications
Model 11N120BND
Brandย  FSC/ONSEMI
Collector to Emitter Voltage 1200V
Max. Collector Current
 43A
Max. Junction Temperature 150ยฐC
Packageย  TO-247
Country of Origin China
