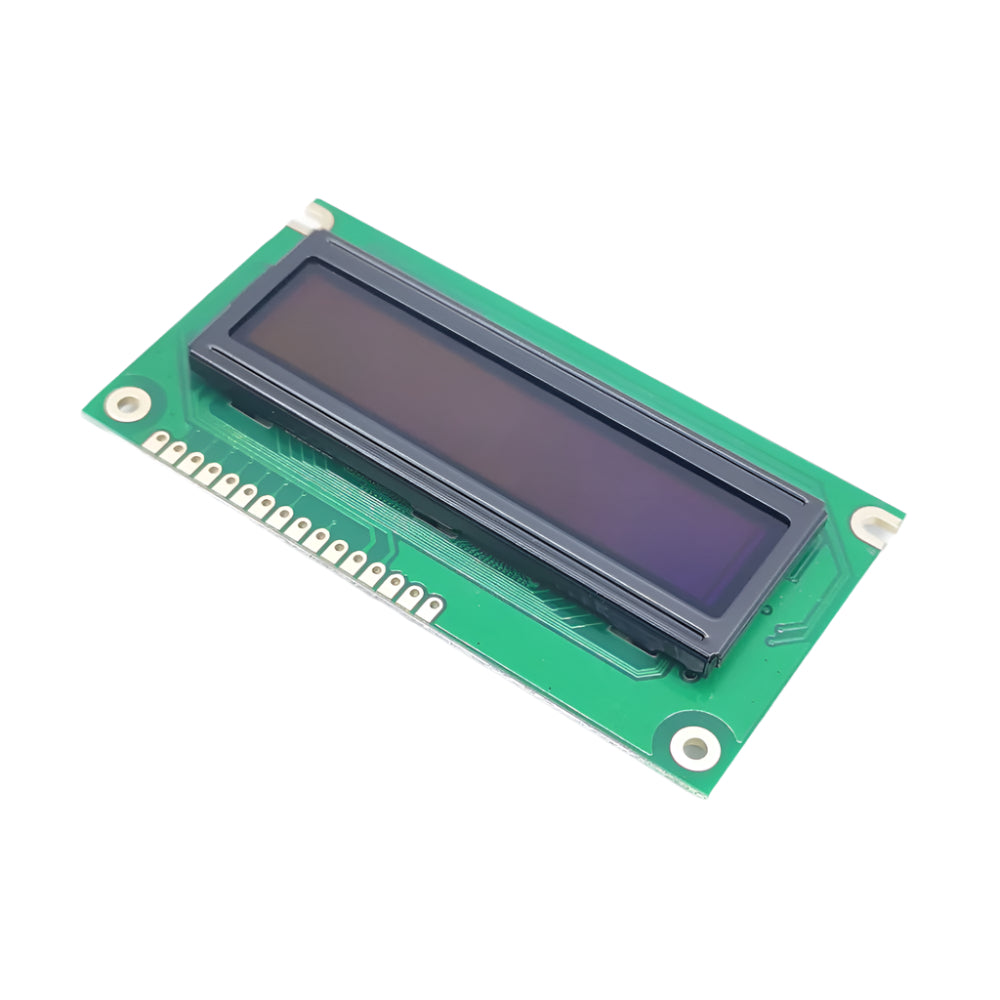

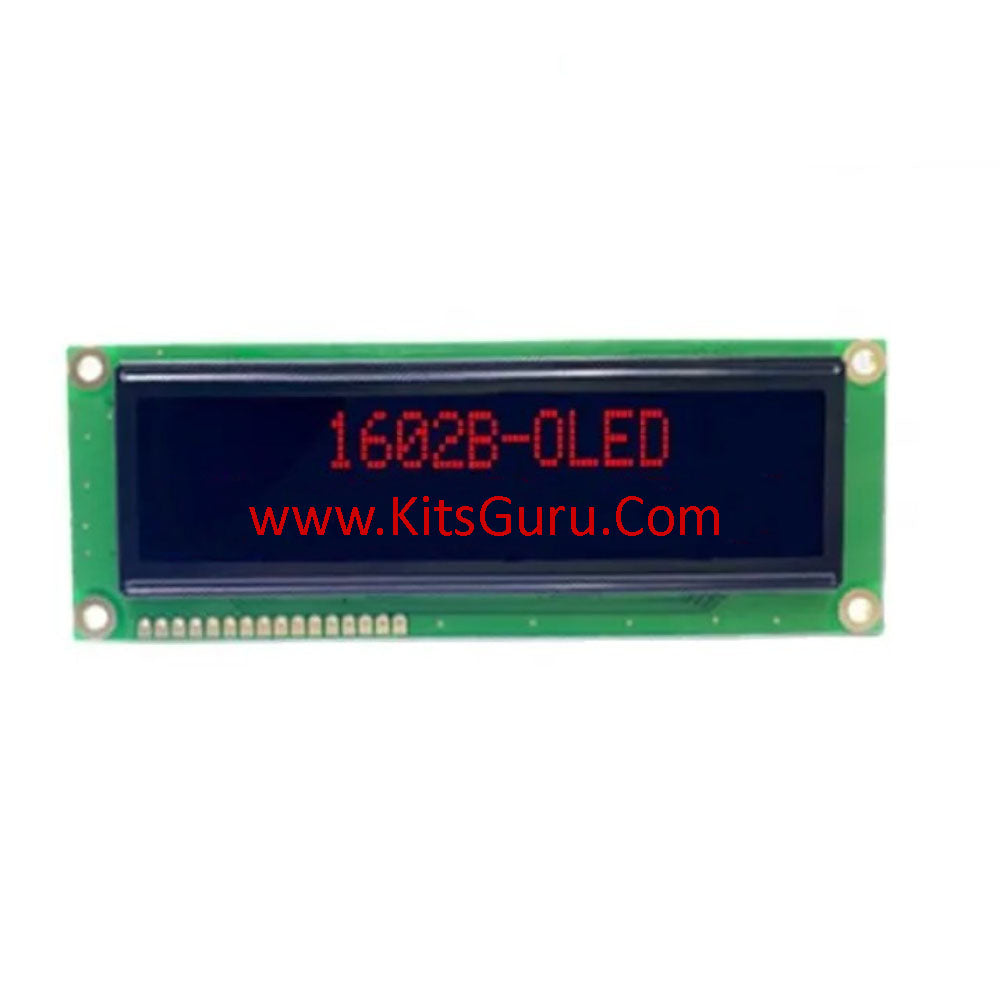

OLED character 16x2 Red 8-bit parallel interface 6800 3.3V

OLED character 16x2 Red 8-bit parallel interface 6800 3.3V

First Come First Serve Offer (T&C Apply )

3,999.00
4,999.00 3,999.00
Sale Sold out
Shipping calculated at checkout.

OLED character 16x2 Red 8-bit parallel interface 6800 5V

The OLED Character Display 16x2 Red is a high-contrast, energy-efficient display module designed for clear and crisp text output. Featuring 16 characters per line across 2 rows, this display provides excellent readability with a bright Red OLED screen that eliminates the need for a backlight. It operates on a 5V power supply and utilizes an 8-bit parallel interface compatible with the 6800 series microcontroller interface, ensuring fast and reliable data transfer. Unlike traditional LCDs, OLED technology offers a wider viewing angle, higher contrast, and faster response time, making it ideal for industrial instruments, DIY electronics projects, and embedded systems requiring clear text display. With its compact size and durable design, this 16x2 OLED module is a superior alternative to standard LCDs, offering improved performance and enhanced visual appeal.

Module Classification Information

  • Module Type: Oled
  • Display Type: COB Character
  • Dot Matrix：Character 16 words, 02 Lines
  • Emitting Color: Red
  • With Polarizer
  • Display Mode: Passive Matrix
  • Driver Voltage: ：3.0~3.3V
  • ：Without touch panel
  • Product type: Standard
  • Inspection Grade : Standard
  • Option: ：COB_SPI

General Specification

  • Number of Characters: 16 characters x 2 Lines
  • Module Dimension: 122.0 x 44.0 x 10.0 (MAX) mm
  • View Area: 98.0 x 21.0 mm
  • Active Area: 91.14 x 18.98 mm
  • Dot Size: 0.90 x 1.06 mm
  • Dot Pitch: 0.96 x 1.12 mm
  • Character Size: 4.74 x 8.9 mm
  • Character Pitch: 5.76 x 10.08 mm
  • Panel Type: OLED, Red
  • Duty: 1/16
  • IC: WS0010-TX
  • Interface: 6800
  • Size: 3.67 inch

Features

  • High-Contrast Red OLED Display – Provides bright and clear text visibility without the need for a backlight.
  • 16x2 Character Layout – Supports 16 characters per line across 2 rows for efficient text display.
  • Compact Module Size – Space-saving design ideal for embedded applications.
  • Wide Viewing Angle – OLED technology ensures excellent visibility from various angles.
  • Fast Response Time – No ghosting or delay, making it suitable for real-time applications.
  • Low Power Consumption – Operates efficiently at 3.3V, making it ideal for battery-powered devices.
  • 8-bit Parallel Interface (6800) – Ensures high-speed communication with microcontrollers.
  • Durable & Long-Lasting – OLED panels have a longer lifespan compared to traditional LCDs.
  • Easy Integration – Compatible with various microcontrollers and embedded systems.
  • No Backlight Required – Self-emissive pixels eliminate the need for additional lighting.

Applications:

  • Industrial control panels – Used in machines and automation systems for clear text display.
  • Medical devices – Ideal for displaying real-time patient data in compact medical equipment.
  • Embedded systems – Suitable for microcontroller-based projects and development boards.
  • Handheld devices – Perfect for portable gadgets that require a bright, low-power display.
  • Automotive displays – Used in dashboards, meters, and control units for clear information display.
  • Home appliances – Found in smart home devices, thermostats, and kitchen appliances.
  • Communication equipment – Integrated into radios, transceivers, and network devices.
  • Security systems – Used in access control panels, surveillance monitors, and alarm systems.
  • Test and measurement devices – Displays readings in oscilloscopes, multimeters, and analyzers.
  • Consumer electronics – Found in various smart gadgets, including wearables and entertainment systems.

Contour Drawing & Block Diagram

Contour Drawing & Block Diagram

Interface Pin Function


Absolute Maximum Ratings


Electrical Characteristics


Package Includes

  • 1 x OLED character 16x2 Red 8-bit parallel interface 6800 3.3V
