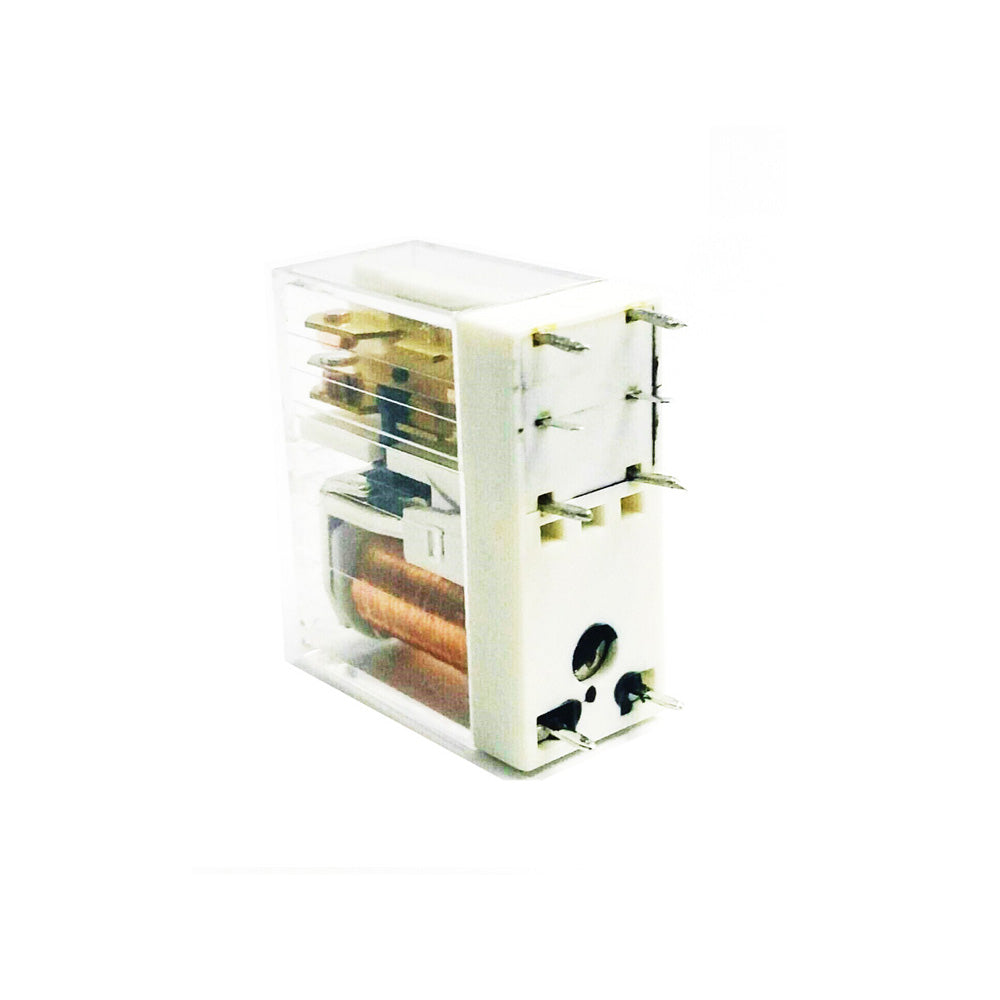

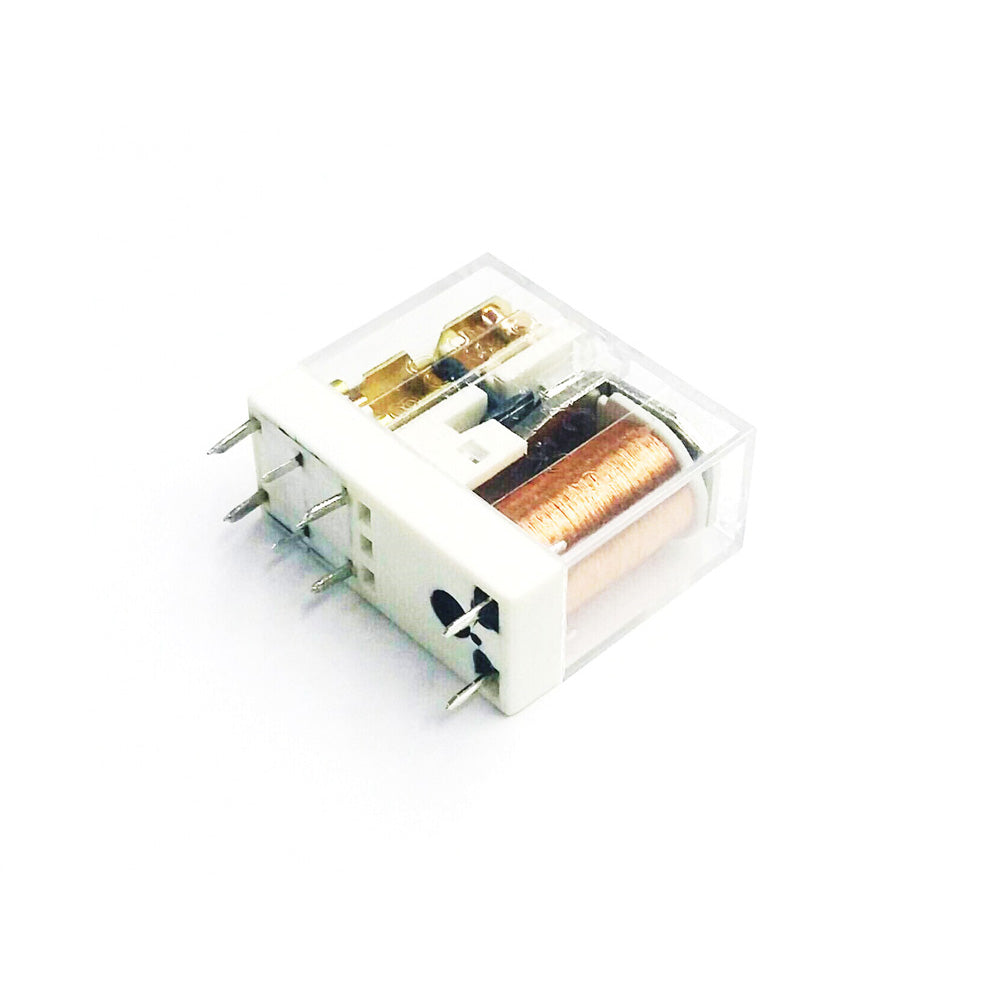

OEN 58-12-2C 5A Relay
OEN 58-12-2C 5A Relay
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
It's a OEN 58-12-2C 5A Relay. It's a electrically operated switch and it consists of set of input terminal for a single or multiple control signals, and a set of operating contact terminal. Relay are used where it is necessary to control a circuit by an independent low power signal or where several circuit must be controlled by one signal.
Features:
- Switching capacity 5A is available with 2 changeover contacts.
- Slim type and small occupying area can offer high dense P.C. Board technique.
- Complete protective construction is designed from dust and soldering flux.
- If required, plastic sealed type is available for washing procedure.
- Applications - Controllers, Air Conditioners, Refrigerator, Microwave, TV, etc.
- Miniature Power Relays | 12V 5A Relay | OEN Relay | DC Power Relay | DC Supply Relay | 12V Relay | Relay DC 12V |
Specification-
| Brand | OEN (O/E/N) |
| Rated Voltage | 230 VAC/28VDC |
| Maximum Continuous Current | 5A @ 230VAC/24VDC |
| Trigger Voltage (Voltage across coil) | 12V DC |
| Coil Resistance | 285 ohms |
| Trigger Current (Nominal current) | 40mA Approx. |
| Operating time | 18msec |
| Release time | 8msec |
| Country of Origin | China |
