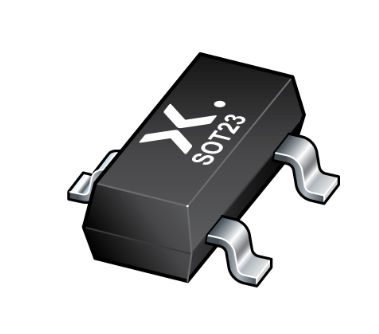

Nexperia BAV70 High speed switching double diode
Nexperia BAV70 High speed switching double diode
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
It's a Nexperia BAV70 High speed-switching double diode. This is a high-speed switching double diode commonly used in various electronic applications. It consists of two diodes in a single package, sharing a common cathode connection. The BAV70 diode is designed for fast-switching applications, making it suitable for use in circuits where quick response times are required. The diode has a low forward voltage drop, which helps minimize power losses and ensures efficient operation. The BAV70 is available in a small surface-mount package, such as SOT23 or SOT323, which makes it suitable for compact designs and densely populated circuit boards. The maximum reverse voltage rating for each diode in the BAV70 is typically around 75 volts, providing a good level of reverse voltage protection. Applications of the Nexperia BAV70 include high-speed signal switching, digital logic circuits, level shifting, voltage clamping, and general-purpose rectification.
| Specifications | |
|---|---|
| No. of Pins | 3 |
| Reverse Current | 500 nA |
| Brand | Nexperia |
| Reverse Leakage Current | 500 nA |
| Part Number | BAV70 |
| Reverse Volatge | 100 V Peak |
| Forward Current | 215 mA |
| Forward Voltage | 1.25 V |
| Mounting Style | SMD |
| Operating temperature | - 65C to +150C |
| Type | Diode |
